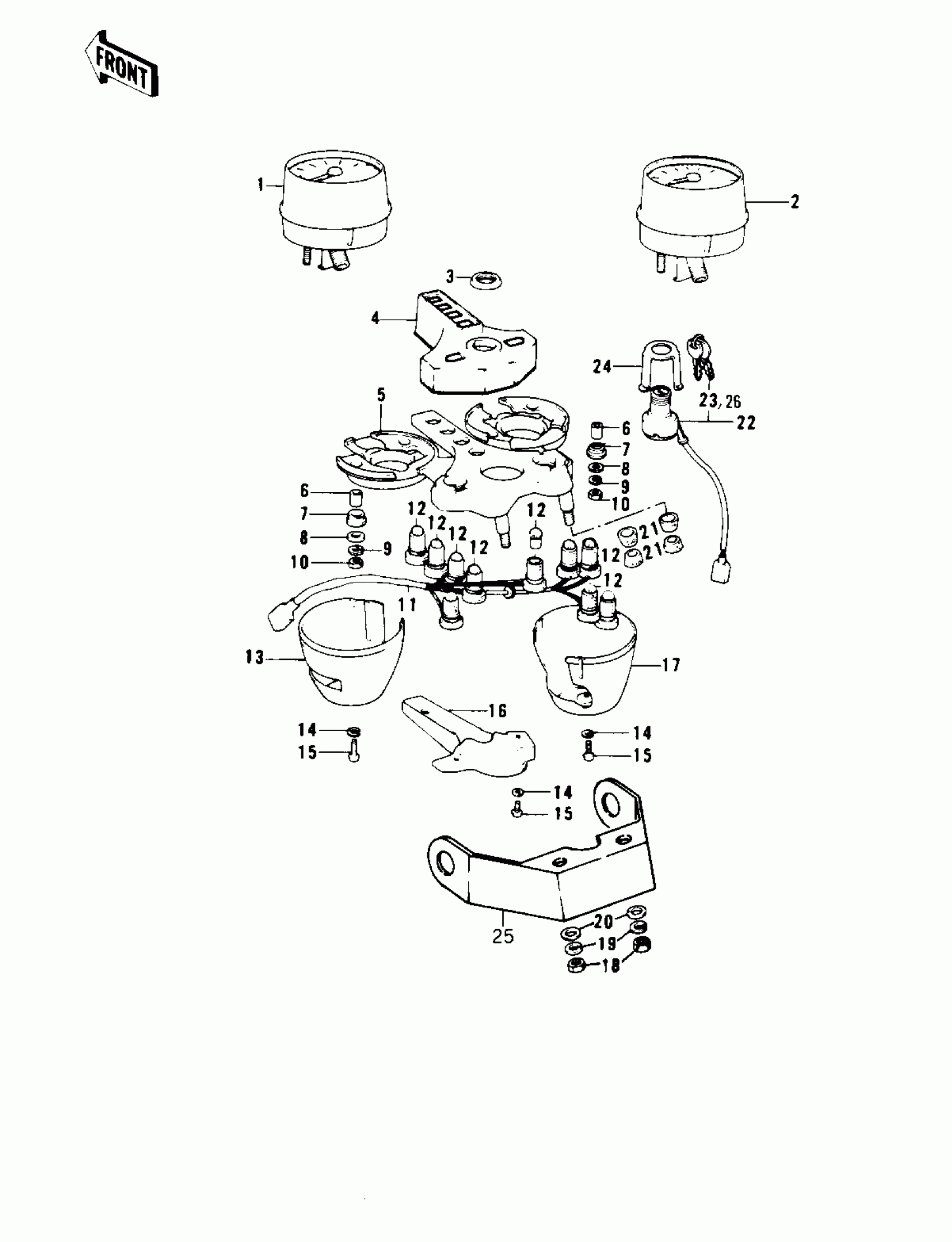

Kawasaki KZ1000 LTD METERS/IGNITION SWITCH ('77-'78 B1/B2) Diagram

#

Description
Price

1

SPEEDOMETER ASSY,MPH

25005-1031

Unavailable

1

SPEEDOMETER ASSY,MPH

25005-1031

Unavailable

1

SPEEDOMETER,KP4 (Canada)

25006-056

$552.88

2

TACHOMETER ASSY

25015-1010

Unavailable

2

TACHOMETER ASSY

25015-1010

Unavailable

3

NUT,IGNITION SW LOCK

27007-004

Unavailable

4

COVER,METER,INDICATE

25023-015

$224.97

5

BRACKET,METER

25008-045

Unavailable

6

COLLAR,METER

92027-211

Unavailable

7

RUBBER,METER

92075-172

$11.85

8

WASHER,PLAIN,5MM

92022-241

Unavailable

9

WASHER SPRING 5MM

461F0500

Unavailable

10

NUT-HEX,5MM

312B0500

Unavailable

11

SOCKET,SPEEDOMETER

25011-049

$192.91

12

BULB 12V 3W

92069-018

$3.71

13

COVER,SPEEDOMETER

25012-023

Unavailable

14

WASHER SPRING 3MM

461F0300

Unavailable

15

SCREW-PAN-CROS,3X8

220B0308

$0.54

16

COVER,METER BRACKET

25024-006

$29.10

17

COVER,TACHOMETER

25012-024

$224.79

18

NUT,8MM

311B0800

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

WASHER PLAIN 8MM

411B0800

Unavailable

21

DAMPER RUBBER

92075-080

$7.89

22

SWITCH ASSY,IGNITION

27005-092

$206.63

23

KEY SET,#751

27008-069-51

Unavailable

23

KEY SET,#795

27008-069-95

Unavailable

24

HOLDER IGNITION SW

27019-003

Unavailable

25

BRACKET HEADLAMP

23064-030

Unavailable

26

KEY,BLANK

27008-1013

Unavailable
