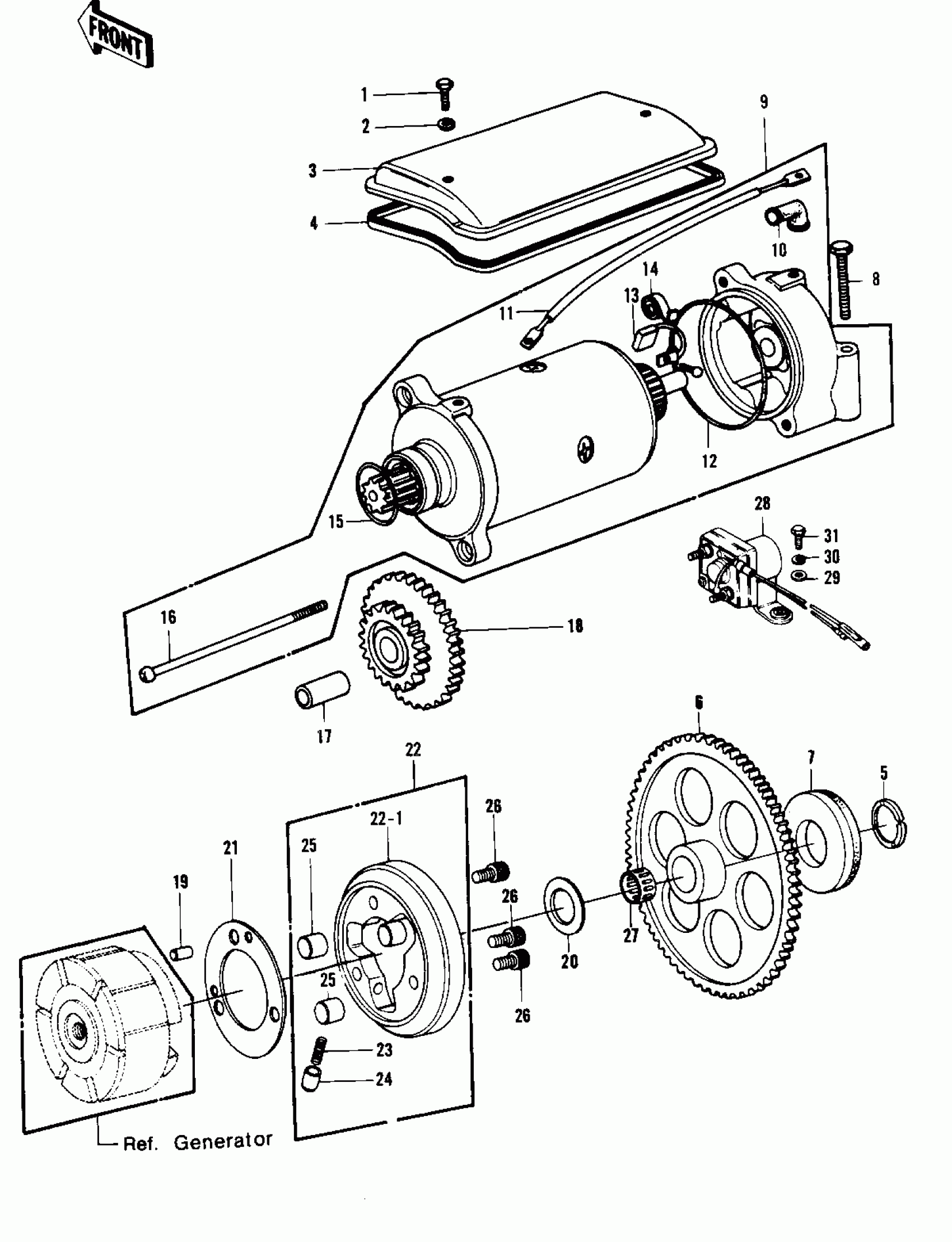

Kawasaki KZ1000 LTD STARTER MOTOR/STARTER CLUTCH ('77-'78 B1 Diagram

#

Description
Price

1

BOLT (6X10)

110R0610

$2.69

2

WASHER,PLAIN,6MM

410D0600

Unavailable

3

COVER,STARTING MOTOR

21165-001

Unavailable

4

GASKET,STARTER COVER

21166-001

$37.40

5

WASHER 22.1X30.7X2.0

92026-091

Unavailable

6

GEAR,STARTING CLUTCH

21167-003

Unavailable

7

DAMPER RUBBER 6.3T

92075-192

Unavailable

7

DAMPER RUBBER 7.3T

92075-193

Unavailable

7

DAMPER RUBBER 8.3T

92075-194

Unavailable

8

BOLT,EXCLUSIVE

92001-1456

$4.34

9

STARTER-ELECTRIC

21163-1019

$639.91

10

GROMMET,STARTER TERMINAL

21017-017

$7.18

11

WIRE,STARTER MOTOR

26010-055

$28.98

12

RING-O,STARTER MOTOR

21027-003

Unavailable

13

BRUSH,CARBON

21039-003

$42.66

14

SPRING-BRUSH

21040-003

Unavailable

15

RING-O,STARTER MOTOR,25MM

21027-004

$7.54

16

SCREW,PAN HEAD,5X110

21015-005

$9.86

17

PIN

13002-007

$17.07

18

GEAR-SPUR,STARTER MOTOR

21167-002

Unavailable

19

PIN,DOWEL,6X22

551A0622

Unavailable

20

SPACER,22X35.5X1.0

92026-092

$11.92

21

PLATE,CLUTCH STARTER

92026-112

Unavailable

22

CLUTCH-ASSY-ONEWAY

13193-1006

$182.70

23

SPRING

92081-110

$3.63

24

PIN

92043-087

$9.70

25

ROLLER,15X14.4

92122-001

$8.82

26

BOLT SOCKET 8X16

92003-104

$3.39

27

NEEDLE BEARING, K222620

92046-033

Unavailable

28

SWITCH ASSY,MAGNETIC

27010-1023

Unavailable

28

SWITCH ASSY,MAGNETIC

27010-1023

Unavailable

29

WASHER,6.5X22X1.6

92022-237

$2.99

30

WASHER SPRING 6MM

461F0600

Unavailable

31

BOLT-UPSET,6X20

112G0620

Unavailable
