1988 Kawasaki KX80 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1988 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

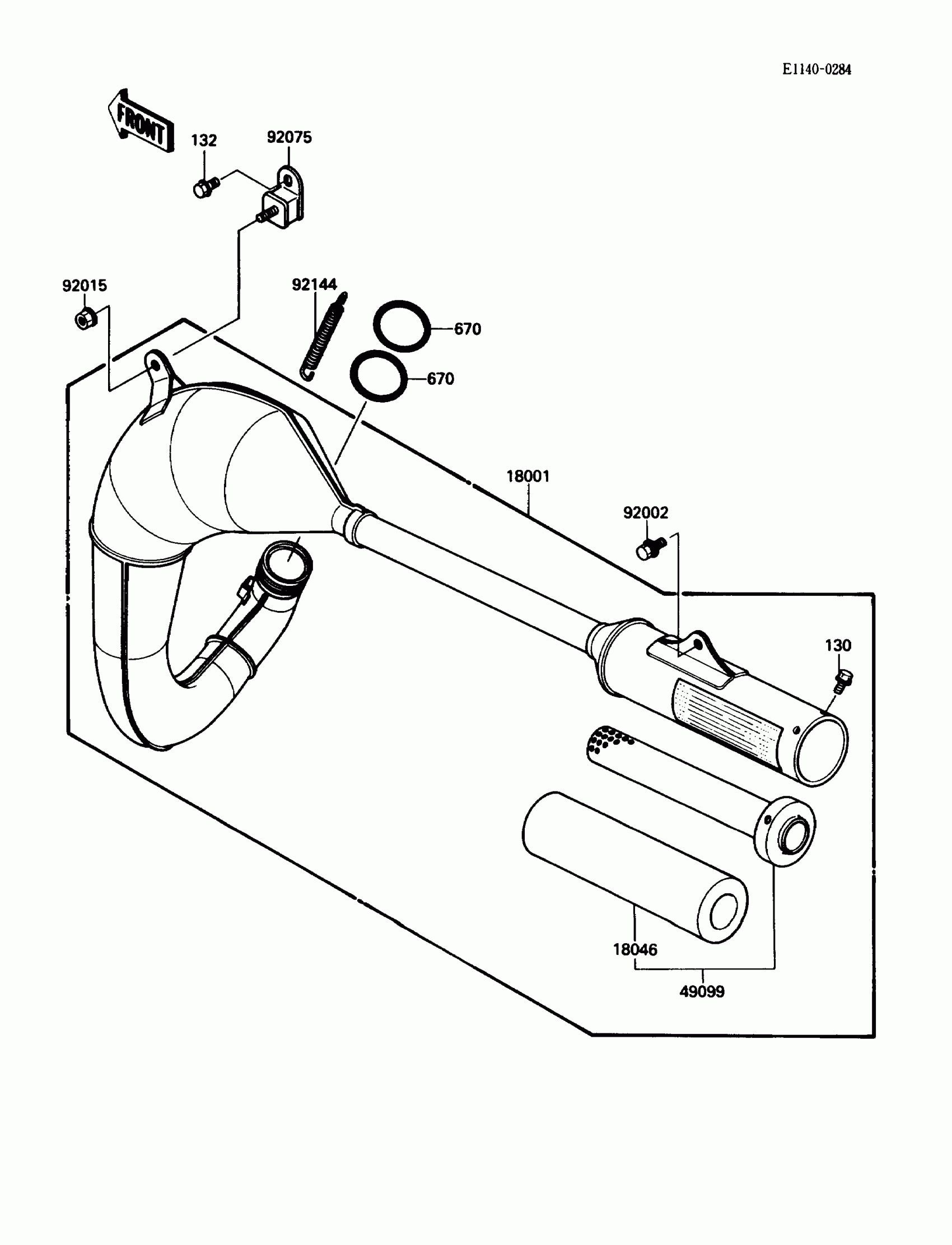

1988 Kawasaki KX80 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

18001

MUFFLER

18001-1668

1
Out of stock

18046

WOOL,BAFFLE PIPE

18046-1020

1

$49.93

In stock

49099

BAFFLE-PIPE MUFFLER

49099-1113

1
Out of stock

92002

BOLT,6X16

92002-1461

1

$3.97

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92075

DAMPER,MUFFLER

92075-1891

1

$29.76

In stock

92144

1

$5.15

In stock

130

BOLT-FLANGED,5X8

130G0508

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

670

O RING,36MM

670E3036

1

$16.19

In stock
