1988 Kawasaki KX80 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1988 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

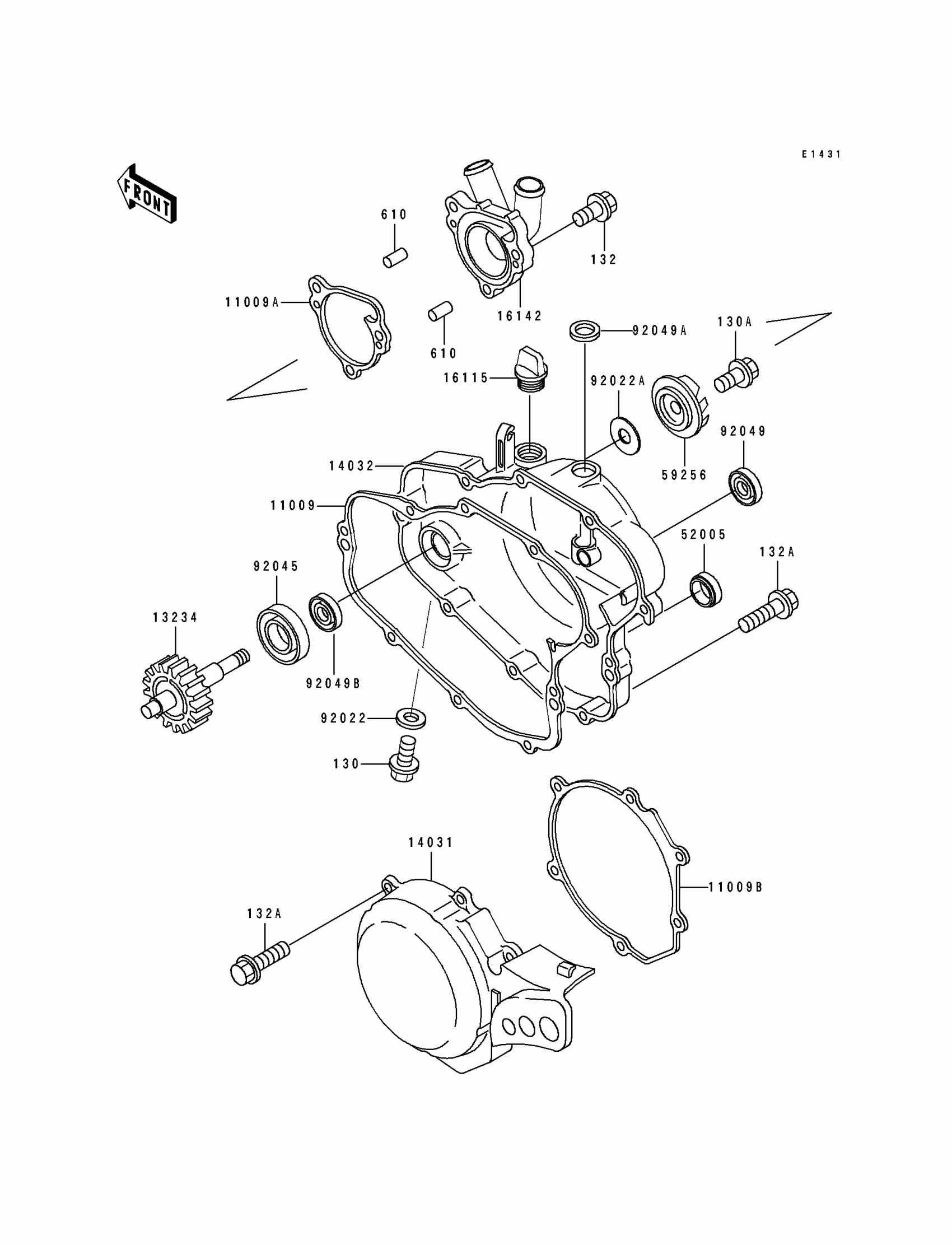

1988 Kawasaki KX80 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,CLUTCH COVER

11009-1534

1
Out of stock

11009A

GASKET,PUMP COVER

11009-1535

1
Out of stock

11009B

GASKET,GENERATOR COVER

11009-1536

1
Out of stock

13234

SHAFT-COMP,PUMP

13234-1068

1
Out of stock

14031

COVER-GENERATOR

14031-1215

1
Out of stock

14032

COVER-CLUTCH

14032-1238

1
Out of stock

16115

CAP-OIL FILLER

16115-018

1

$8.38

In stock

16142

COVER-PUMP

16142-1081

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1055

1

$11.67

In stock

59256

IMPELLER

59256-1064

1

$33.05

In stock

92022

1

$3.13

In stock

92022A

WASHER,5.2X13X1

92022-1380

1

$3.43

In stock

92045

BEARING-BALL,#608

92045-1048

1

$9.80

In stock

92049

SEAL-OIL,SB16244

92049-002

1
Out of stock

92049A

SEAL-OIL,A9567

92049-1081

1
Out of stock

92049B

SEAL-OIL,AG0353-F0

92049-1262

1
Out of stock

130

BOLT-FLANGED,6X8

130B0608

1
Out of stock

130A

BOLT-FLANGED

130P0510

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
