1980 Kawasaki KX80 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1980 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

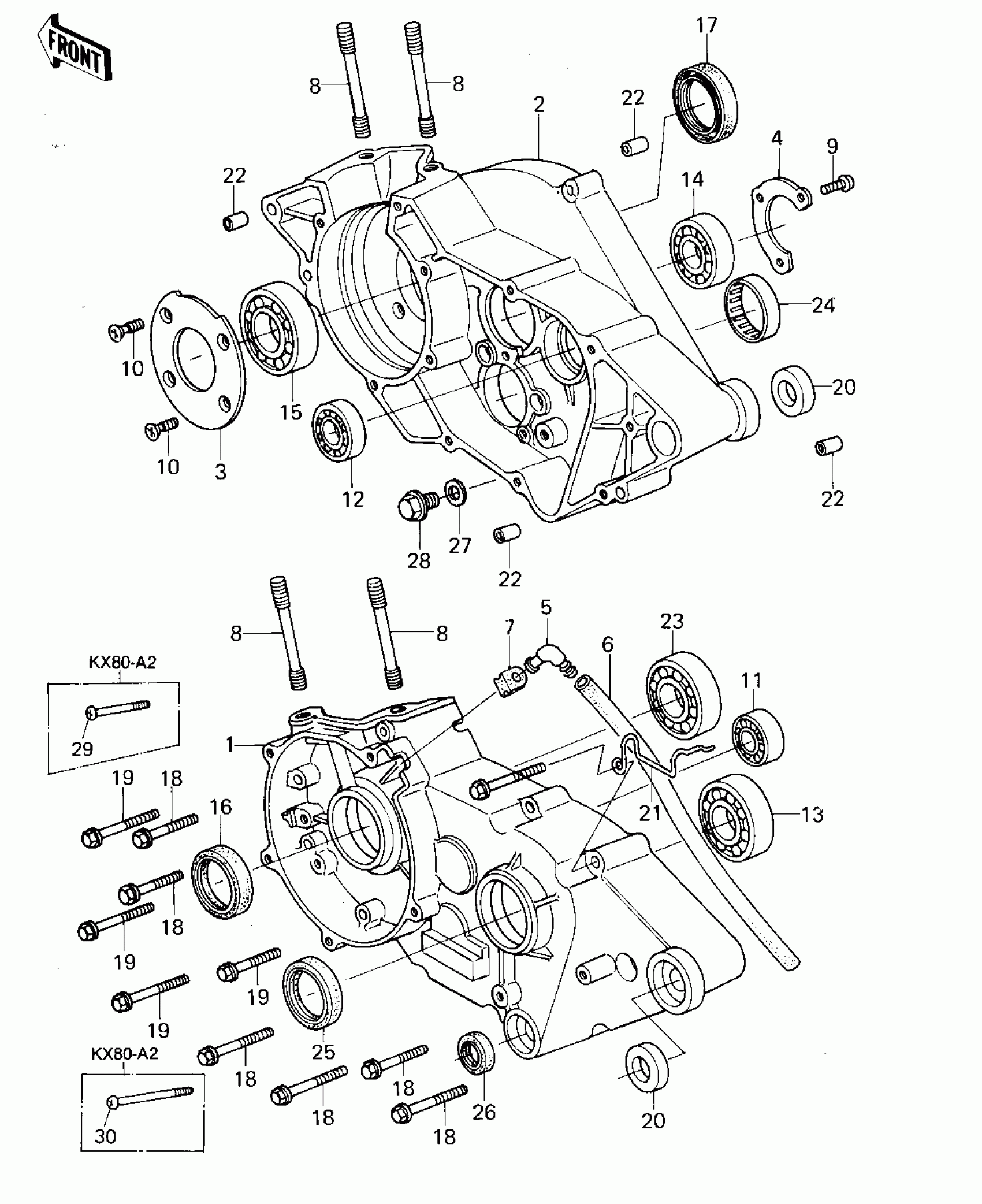

1980 Kawasaki KX80 Crankcase Diagram

#

Description
Price
Status
Order Qty

1

CRANKCASE,L.H.

14002-1059

Out of stock

1

CRANKCASE,L.H,F.BLACK

14002-1067

Out of stock

2

CRANKCASE,R.H.

14002-1060

Out of stock

2

CRANKCASE,R.H,F.BLACK

14002-1068

Out of stock

3

PLATE-POSITION

14014-017

Out of stock

4

PLATE,POSITION,DRIVE

14014-1010

Out of stock

5

BREATHER ASSY

14069-1001

$22.77

In stock

6

TUBE,6X9X750

92059-1372

$14.65

In stock

7

GROMMET,BREATHER

92071-042

$3.39

In stock

8

STUD,8X105

172G08105

$7.03

In stock

8

STUD-8X110

172G08110

Out of stock

9

$1.32

In stock

10

$0.63

In stock

11

$12.85

In stock

12

BEARING BALL #6002

601B6002

Out of stock

13

$9.84

In stock

14

$11.12

In stock

15

$10.76

In stock

15

$15.38

In stock

16

SEAL-OIL

92049-1250

Out of stock

16

SEAL-OIL

92049-1240

Out of stock

17

OIL SEAL,28X40X8

653B284008

Out of stock

17

SEAL-OIL

92049-1250

Out of stock

18

BOLT,HEX HEAD,6X35

92001-164

$5.75

In stock

19

BOLT,FLANGED,6X45

92001-165

$4.16

In stock

20

COLLAR,12.6X26X7

92027-1147

$8.25

In stock

21

CLAMP,TUBE

92037-1128

$7.08

In stock

22

PIN,DOWEL,6.3X8X14

92042-007

$4.51

In stock

23

BEARING,BALL,EC-6204

92045-1026

Out of stock

23

$15.38

In stock

24

$23.59

In stock

25

SEAL-OIL,SC25376

92050-013

Out of stock

26

SEAL-OIL,TB13225.5

92051-005

Out of stock

27

GASKET,10.5X16X1

92065-058

$3.16

In stock

28

PLUG,DRAIN

92066-1241

$5.39

In stock

29

SCREW-PAN-CROS,6X45,BLACK

220C0645

Out of stock

30

$4.75

In stock
