1988 Kawasaki KX80 Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 1988 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

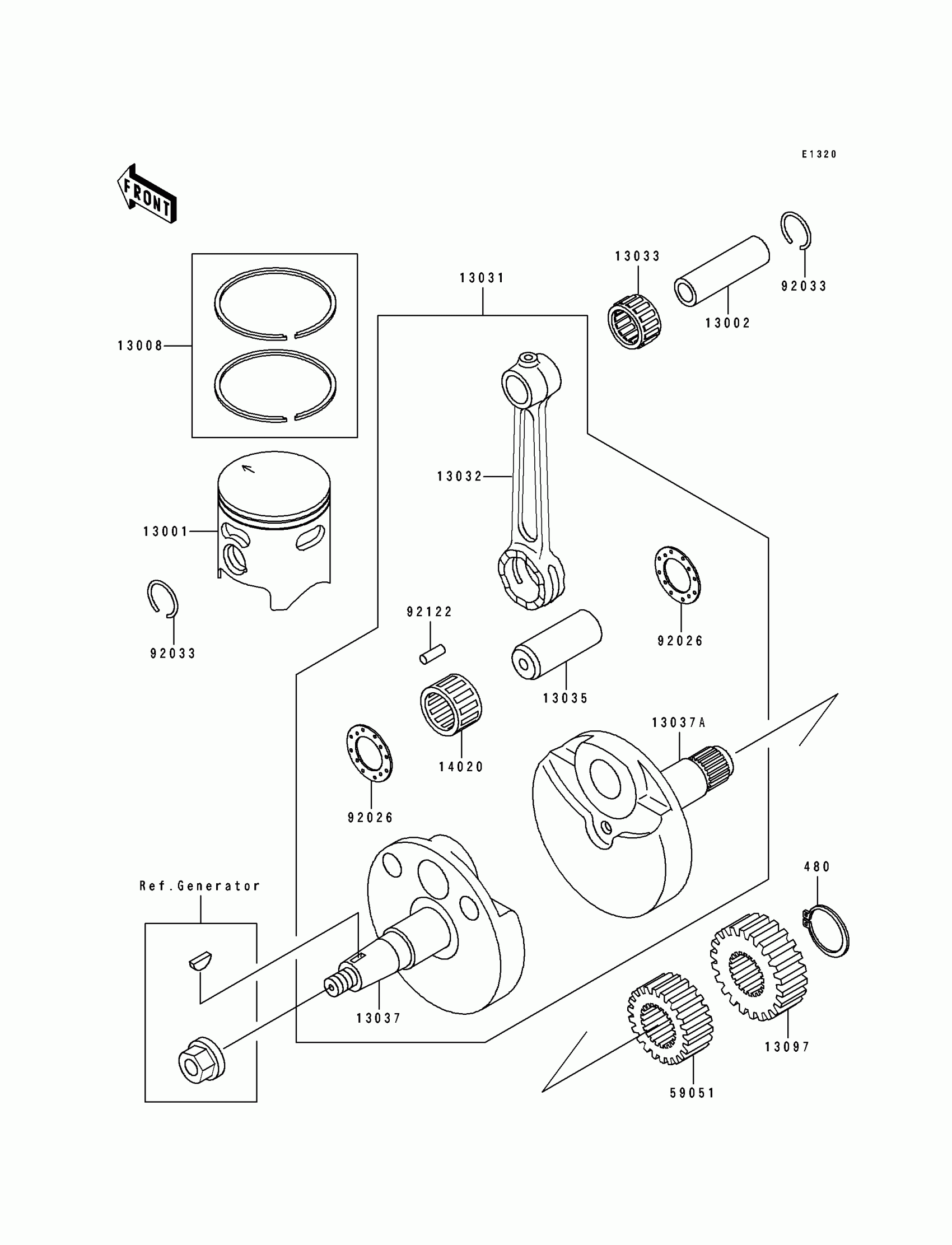

1988 Kawasaki KX80 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE

13001-1259

1
Out of stock

13002

PIN-PISTON

13002-1079

1

$15.27

In stock

13008

RING-SET-PISTON

13008-1100

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1207

1
Out of stock

13033

BEARING-SMALL END,14R1818AP-1

13033-1053

1
Out of stock

13034

BEARING-BIG END,H22X29X13.8

13034-1072

1
Out of stock

13035

PIN-CRANK

13035-1054

1
Out of stock

13037

CRANKSHAFT,LH

13037-1269

1
Out of stock

13037A

CRANKSHAFT,RH

13037-1270

1
Out of stock

13044

SET-CONNECTING ROD

13044-5053

1
Out of stock

13097

1

$80.08

In stock

59051

GEAR-SPUR,PUMP,23T

59051-1146

1

$30.97

In stock

92026

SPACER,22.5X37X1.0

92026-011

1
Out of stock

92033

RING-SNAP

92033-1050

1

$2.27

In stock

480

1

$3.43

In stock
