1983 Kawasaki KX80 Radiator Diagram

← All diagrams

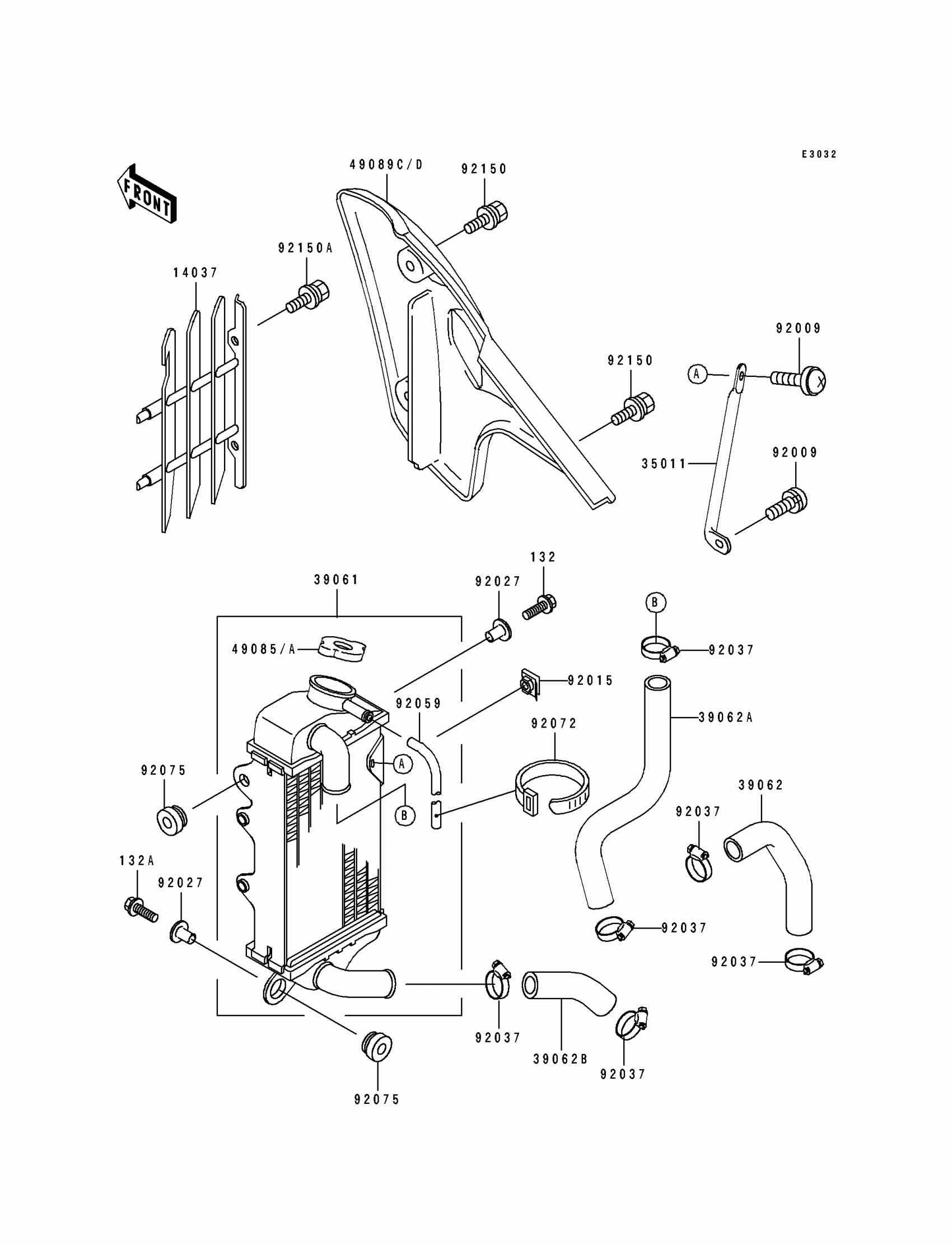

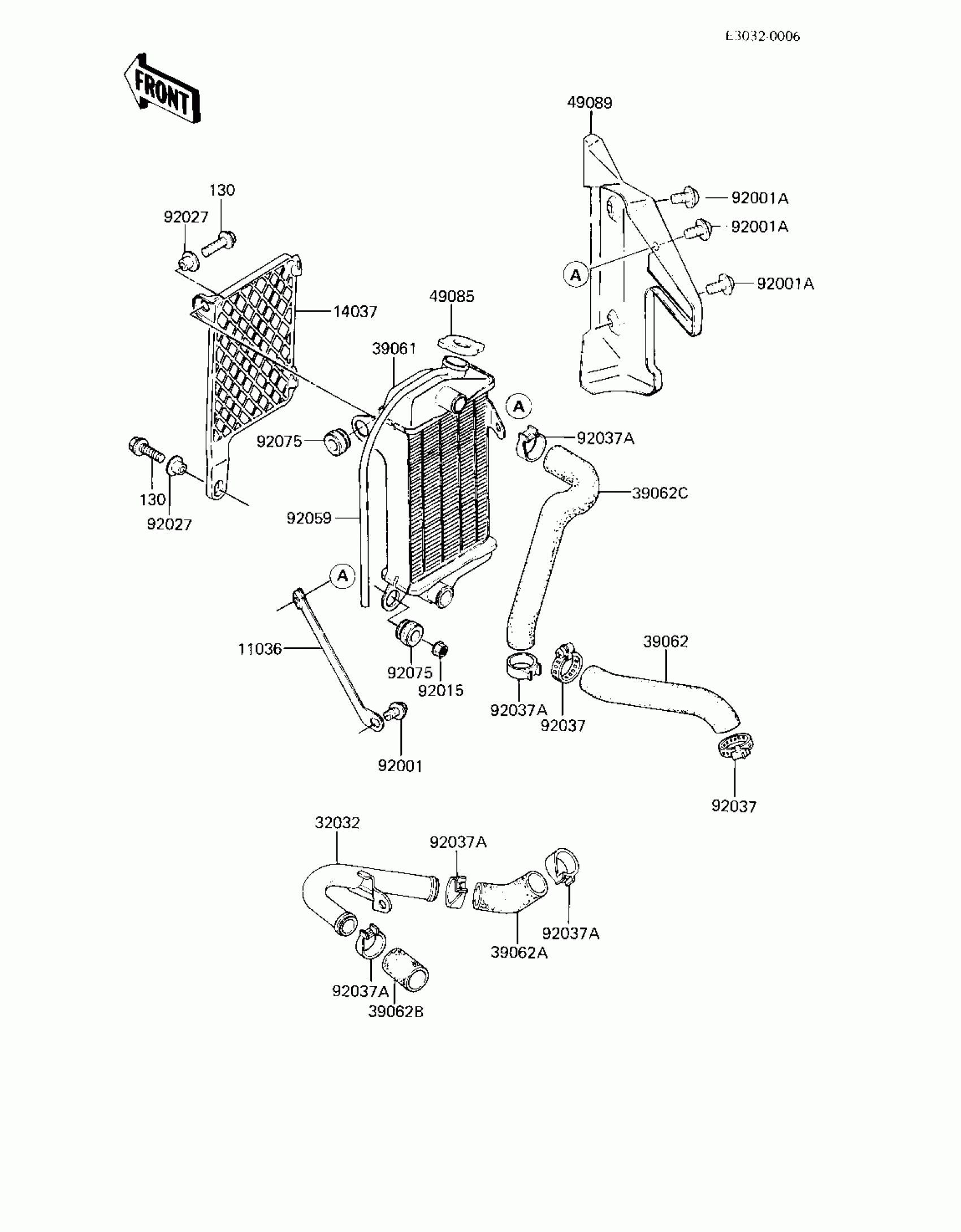

Find the part on the Radiator diagram for your 1983 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki KX80 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A,RADIATOR

11036-1736

1
Out of stock

14037

SCREEN,RADIATOR

14037-1005

1

$49.36

In stock

32032

PIPE,COOLING

32032-1912

1

$52.61

In stock

39061

EXCHANGER-ASSY-HEAT

39061-1019

1

$491.40

In stock

39062

1

$37.38

In stock

39062A

1

$14.07

In stock

39062B

1

$24.03

In stock

39062C

HOSE-COOLING,COVER-CL

39062-1016

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1003

1

$33.98

In stock

49089

SHROUD-ENGINE,L.GREEN

49089-1003-6W

1

$63.24

In stock

92001

BOLT,W/WASHER,6X12

92001-1516

1

$4.42

In stock

92001A

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92037

CLAMP,COOLING HOSE

92037-1281

1

$13.80

In stock

92037A

CLAMP,COOLING HOSE

92037-1364

1
Out of stock

92059

TUBE,5X9X800

92059-1383

1

$7.65

In stock

92075

DAMPER

92075-1352

1

$5.16

In stock

130

BOLT,FLANGED,6X25

130G0625

1
Out of stock
