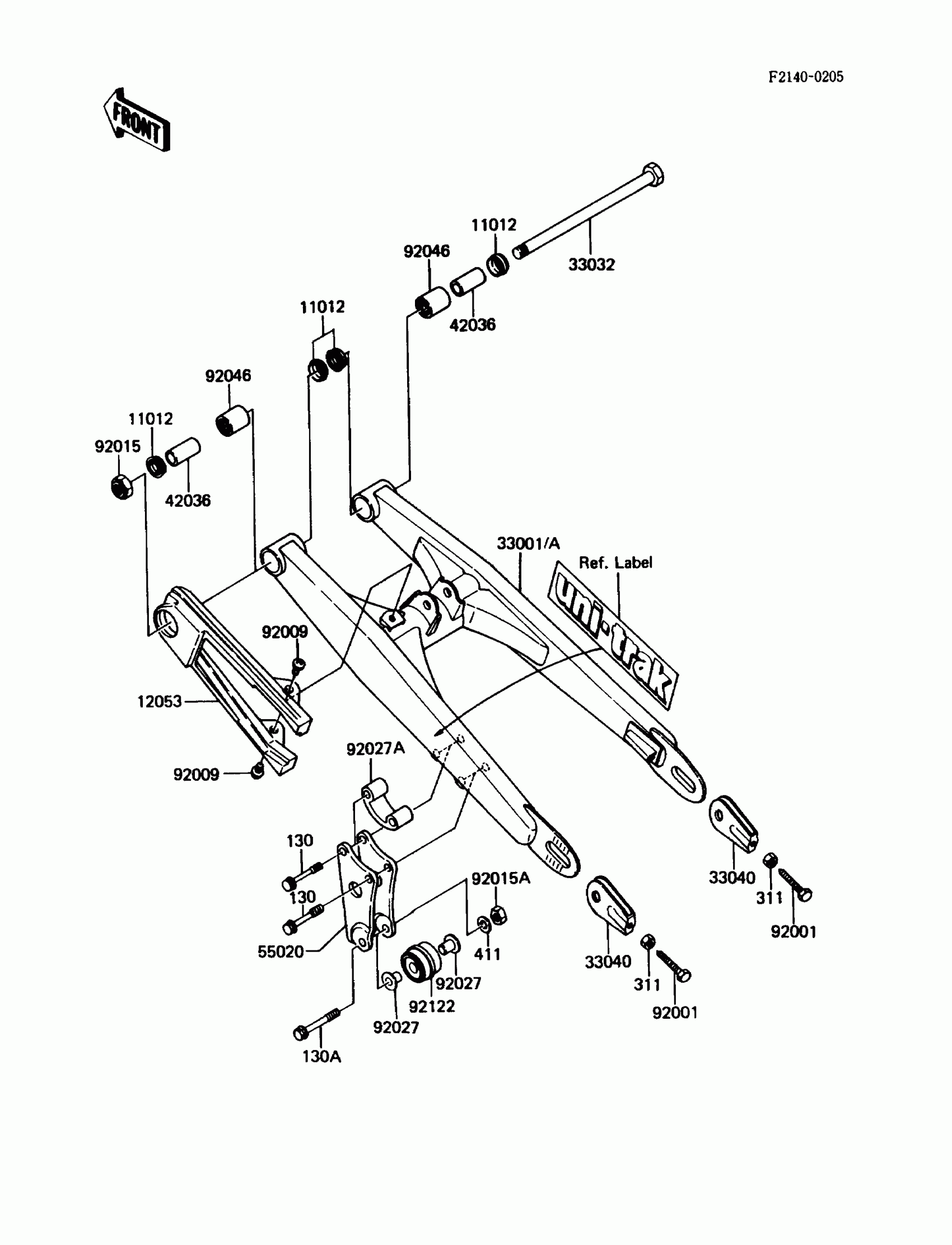

Kawasaki KX60 Swingarm Diagram

#

Description
Price

11012

CAP

11012-1263

$12.55

12053

GUIDE-CHAIN,FR

12053-1069

Unavailable

33001A

ARM-COMP-SWING,SILVER NO.15

33001-1307-X3

$267.42

33032

SHAFT-SWING ARM,PIVOT

33032-1031

Unavailable

33040

ADJUSTER-CHAIN

33040-1055

$9.53

42036

SLEEVE,SWING ARM,L=34

42036-1067

$8.10

55020

GUARD,CHAIN,RR

55020-1163

$34.24

92001

BOLT,6X39

92001-1463

$3.57

92009

SCREW,6X10,WHITE

92009-1286

$3.29

92015

NUT,LOCK,12MM

92015-1063

$5.88

92015A

NUT,LOCK 6MM

92017-014

$5.74

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92027A

COLLAR,CHAIN GUIDE

92027-1495

Unavailable

92046

BEARING-NEEDLE

92046-1046

$22.57

92122

ROLLER,CHAIN GUIDE

92122-1030

$30.88

130

BOLT-FLANGED,6X45

130G0645

Unavailable

130A

BOLT-FLANGED,6X50

130G0650

Unavailable

311

NUT 6MM

311B0600

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable
