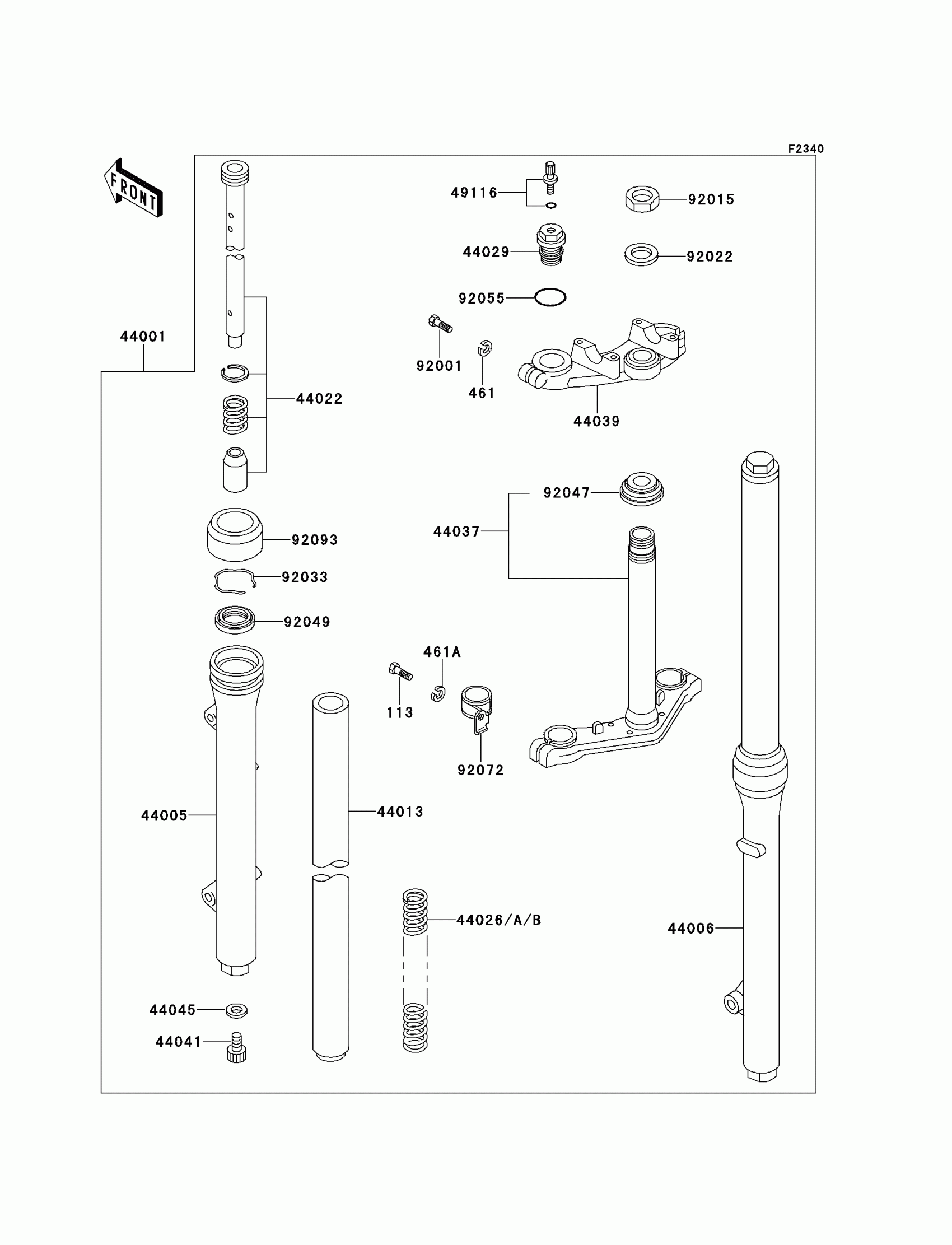

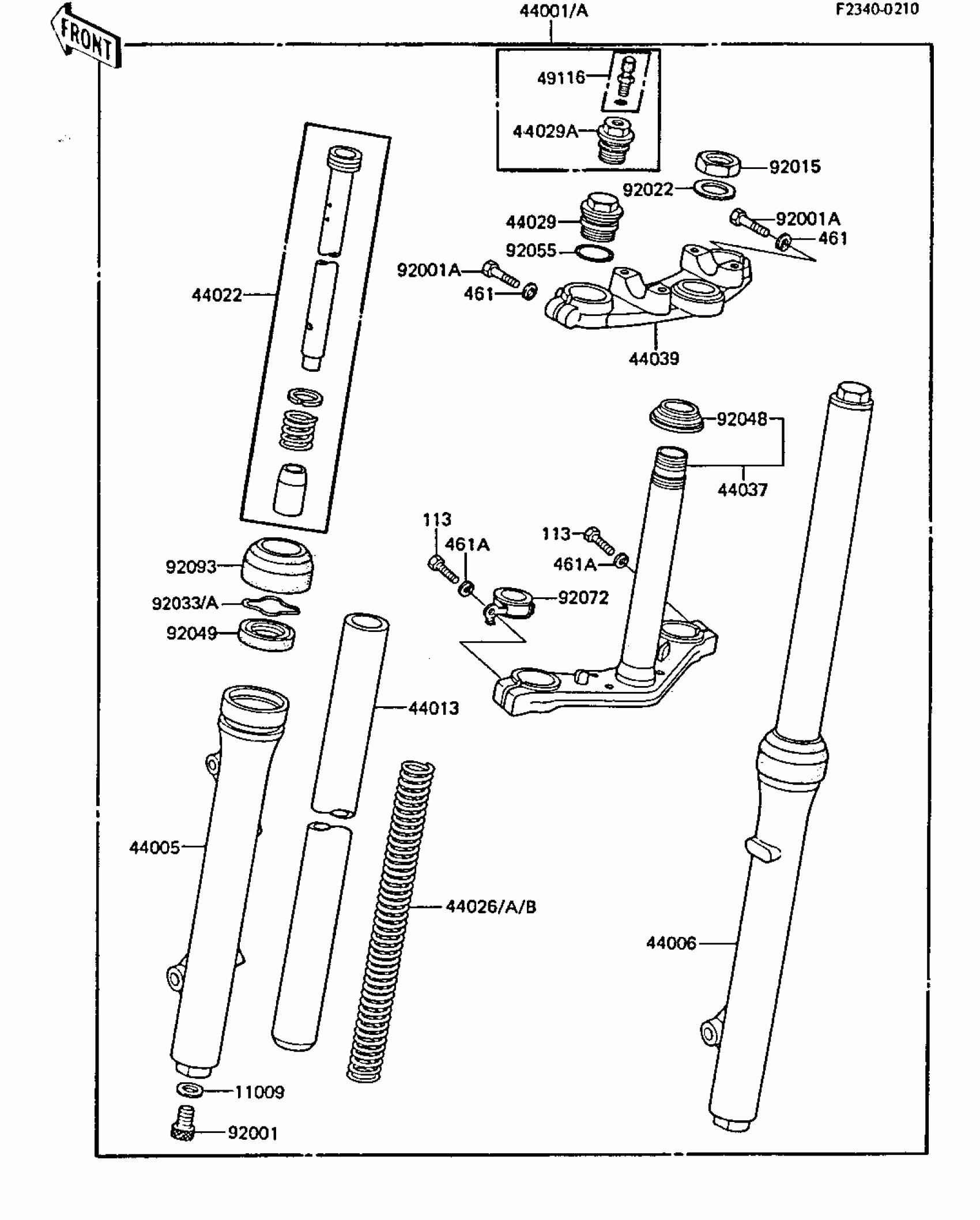

Kawasaki KX60 FRONT FORK Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44001A

FORK-FRONT

44001-1507

$576.34

44005

PIPE-LEFT FORK OUTER

44005-1101

$224.62

44006

PIPE-RIGHT FORK OUTER

44006-1101

$218.31

44013

PIPE-FORK INNER

44013-1098

$247.38

44022

CYLINDER-FORK

44022-1085

$87.88

44026

SPRING-FRONT FORK,K=0.25

44026-1156

$42.55

44026A

SPRING-FRONT FORK,K=0.23

44026-1174

$46.61

44026B

SPRING-FRONT FORK,K=0.27

44026-1175

$46.61

44029A

SEAT-FORK SPRING

44029-1101

$21.85

44037

HOLDER-FORK UNDER

44037-1095

$281.88

44039

HOLDER-FORK UPPER

44039-1065

$137.28

49116

VALVE-ASSY,AIR

49116-1054

$33.97

92001

BOLT,FORK CYLINDER

44041-078

$9.56

92001A

BOLT,8X35

92001-1643

$3.71

92015

NUT,FORK TOP

92015-1224

$12.66

92022

WASHER,FORK TOP

92022-1385

$5.69

92033A

RING-SNAP

92033-1062

Unavailable

92048

RACE,STEERING STEM BEARING

92047-013

$11.80

92049

SEAL-OIL,FORK OUTER TUBE

92049-1069

$14.81

92055

RING-O,FORK SPRING SEAT

92055-1142

$4.33

92072

BAND,CABLE

92072-1089

$39.90

92093

DUST SHIELD,FORK

92093-1054

$13.15

113

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable
