1988 Kawasaki KX60 Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 1988 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

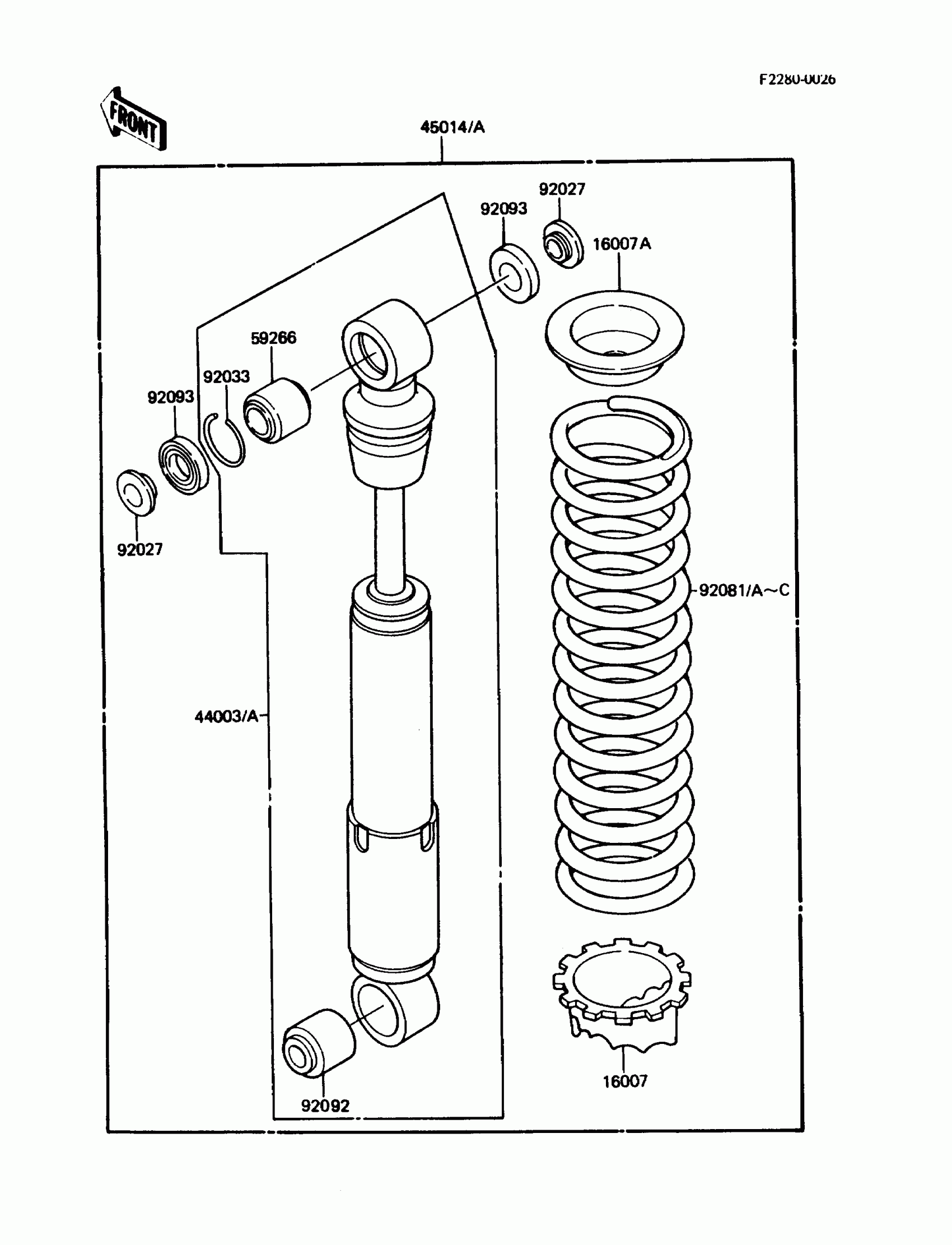

1988 Kawasaki KX60 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16007

1

$37.40

In stock

16007A

1

$11.42

In stock

44003A

1

$416.25

In stock

45014A

SHOCKABSORBER

45014-1389

1

$330.52

In stock

59266

JOINT-BALL

59266-1053

1

$119.17

In stock

92027

COLLAR

92027-1862

1

$19.49

In stock

92033

RING-SNAP

92033-1090

1

$4.76

In stock

92081

SPRING,REAR SHOCK,STD 3.3

92081-1495

1
Out of stock

92081A

SPRING,SHOCKABSORBER,K=3.0

92081-1529

1
Out of stock

92081B

SPRING,SHOCKABSORBER,K=3.7

92081-1530

1
Out of stock

92092

1

$30.51

In stock

92093

SEAL

92093-1183

1

$15.59

In stock
