1984 Kawasaki KX60 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1984 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

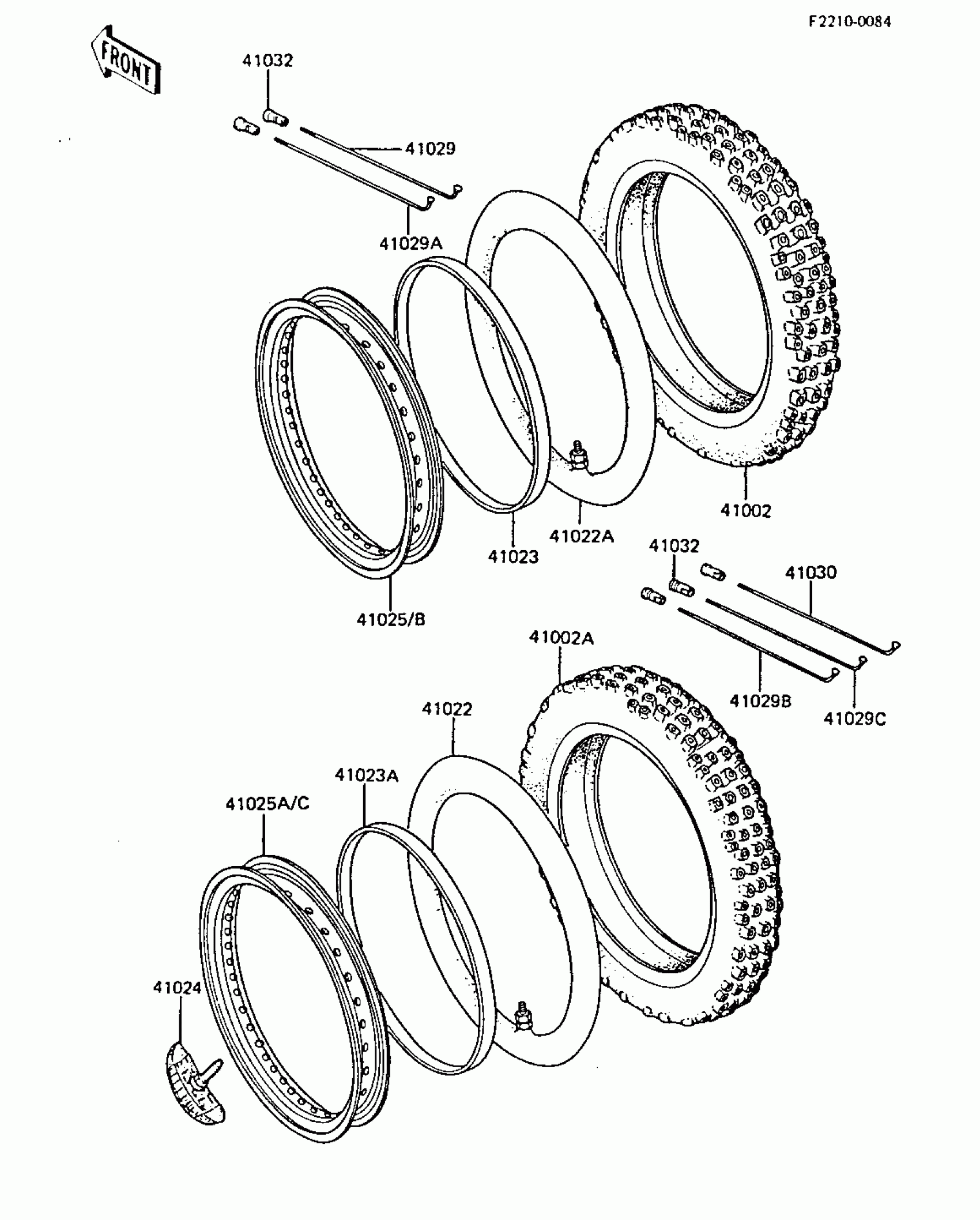

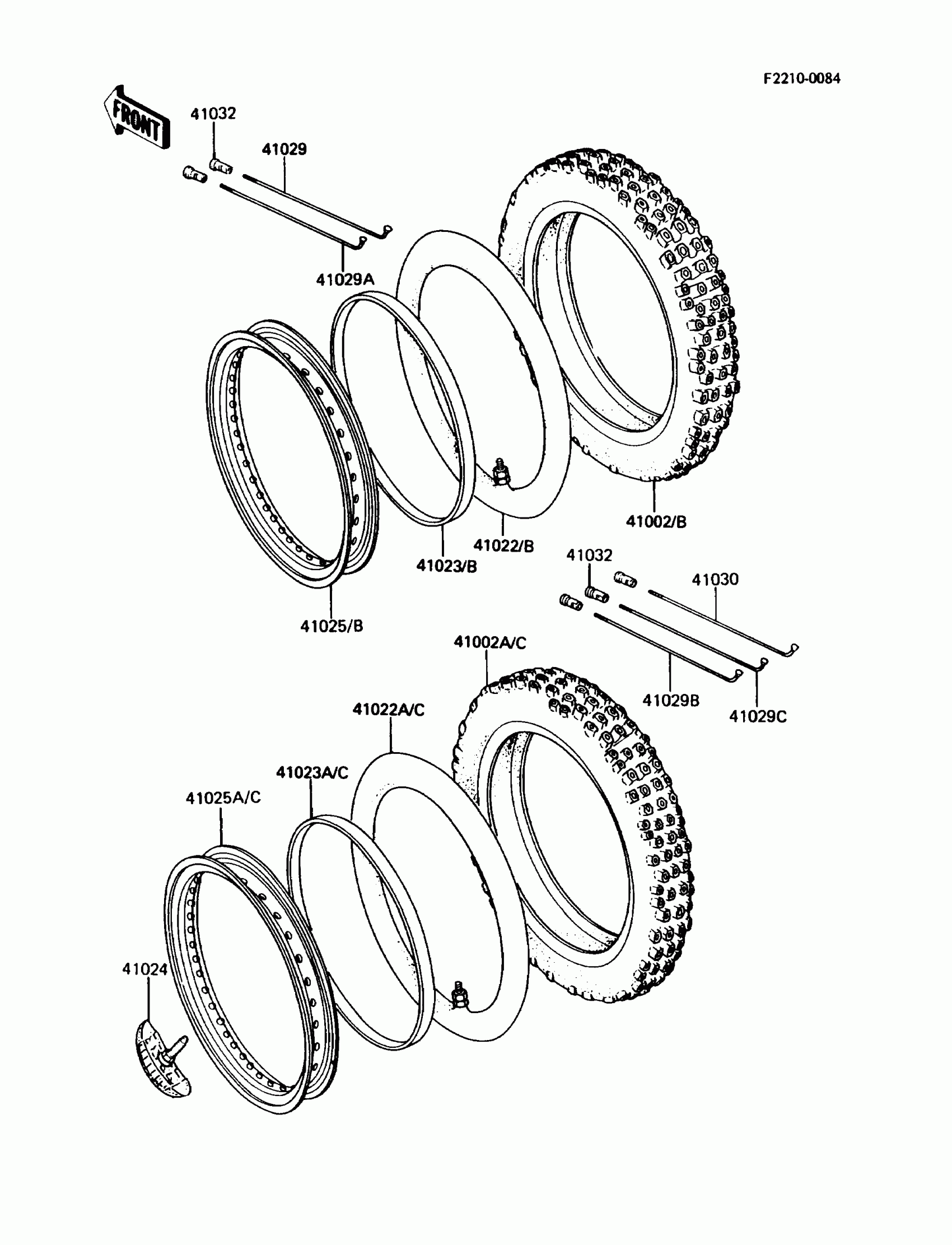

1984 Kawasaki KX60 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41002

TIRE,FR,60/100-14 30M,K195(D)

41002-1555

1
Out of stock

41002A

1

$75.02

In stock

41022

TUBE-TIRE

41022-1104

1

$28.46

In stock

41022A

1

$51.02

In stock

41023

BAND,RIM,4.10-14

41023-1025

1
Out of stock

41023A

BAND-RIM

41023-1054

1

$13.19

In stock

41024

1

$52.75

In stock

41025

RIM,FR,1.40X14

41025-1070

1

$85.60

In stock

41025A

RIM,RR,1.60X12

41025-1071

1

$92.87

In stock

41025B

1

$380.24

In stock

41025C

1

$380.24

In stock

41029

1

$7.39

In stock

41029A

1

$7.39

In stock

41029B

1

$9.36

In stock

41029C

1

$9.36

In stock

41030

1

$9.36

In stock

41032

NIPPLE-SPOKE

41032-1055

1

$3.39

In stock
