1988 Kawasaki KX60 Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 1988 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

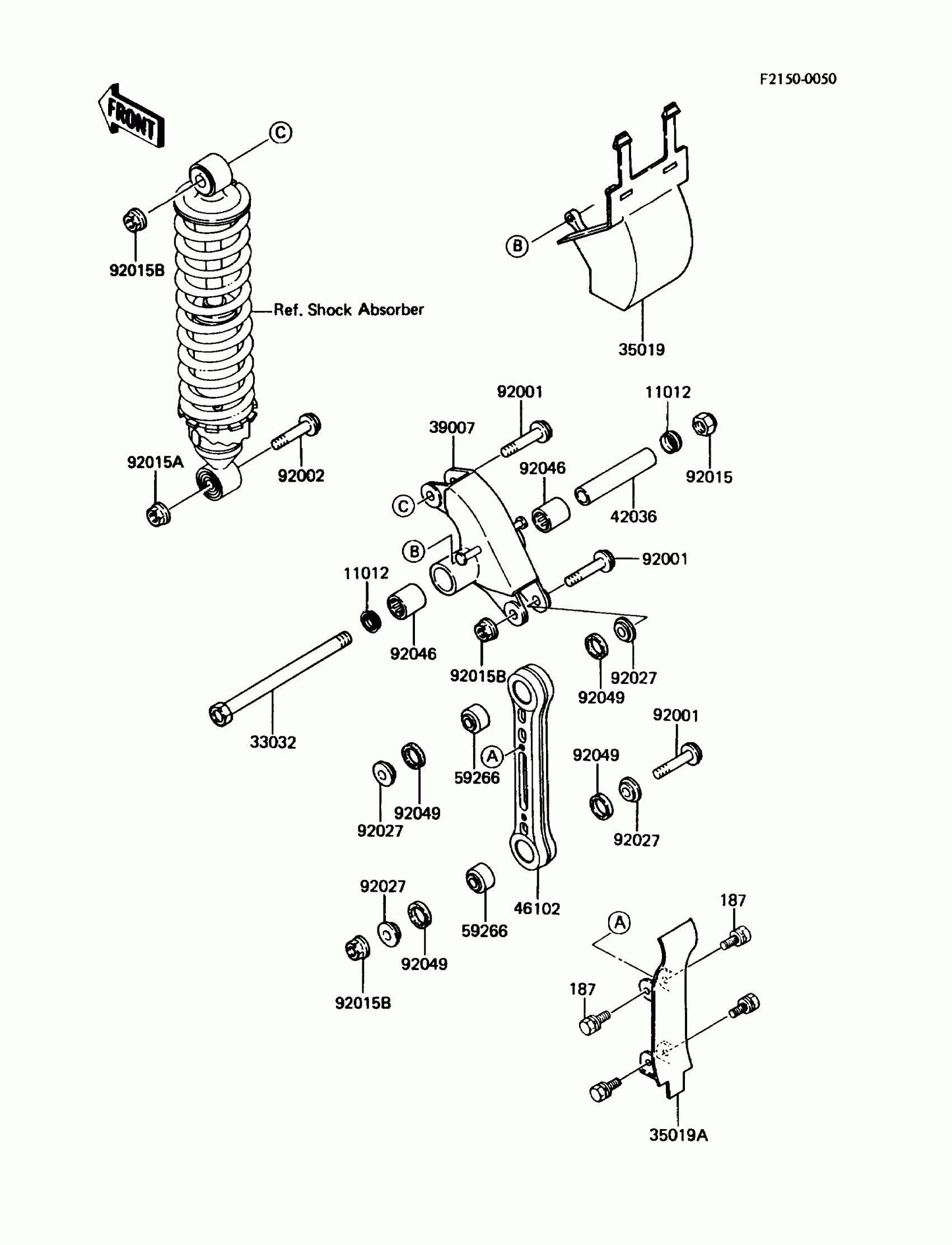

1988 Kawasaki KX60 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1263

1

$13.08

In stock

33032

1

$23.92

In stock

35019

FLAP,SUSPENSION ARM

35019-1046

1

$65.35

In stock

35019A

FLAP,SUSPENSION ROD

35019-1137

1
Out of stock

39007

ARM-SUSP,UNI-TRAK

39007-1062

1

$185.58

In stock

42036

1

$24.44

In stock

46102

ROD,SUSPENSION

46102-1125

1

$184.41

In stock

59266

JOINT-BALL

59266-1011

1

$60.17

In stock

92001

BOLT,FLANGED,10X42

92001-1711

1

$5.58

In stock

92002

BOLT,FLANGED,10X41

92002-1385

1

$9.10

In stock

92015

NUT,LOCK,12MM

92015-1063

1
Out of stock

92015A

1

$8.16

In stock

92015B

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92027

1

$13.75

In stock

92046

BEARING-NEEDLE

92046-1046

1

$24.62

In stock

92049

SEAL-OIL

92049-1098

1
Out of stock

187

BOLT 6X14

187B0614

1
Out of stock
