1985 Kawasaki KX500 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1985 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

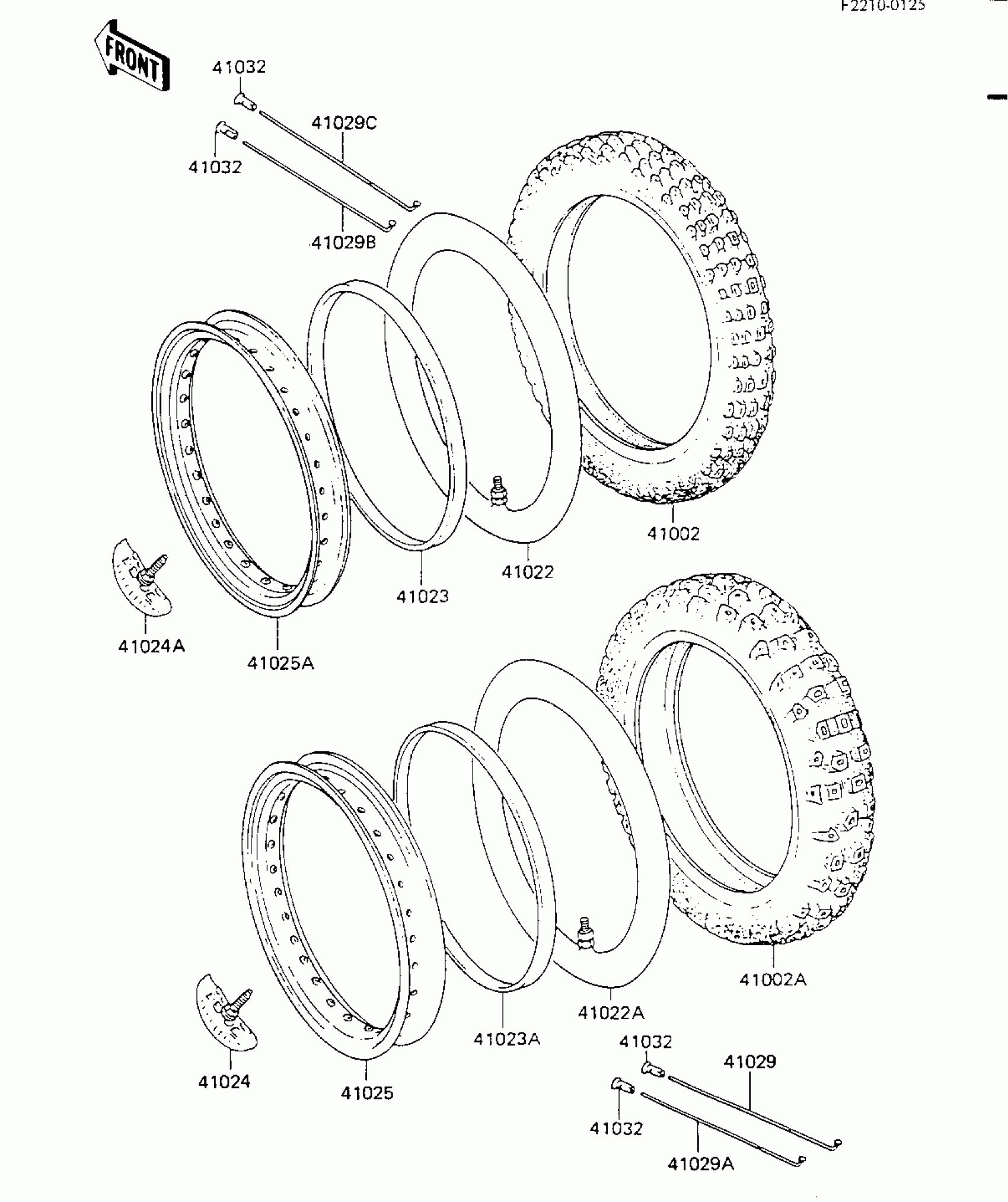

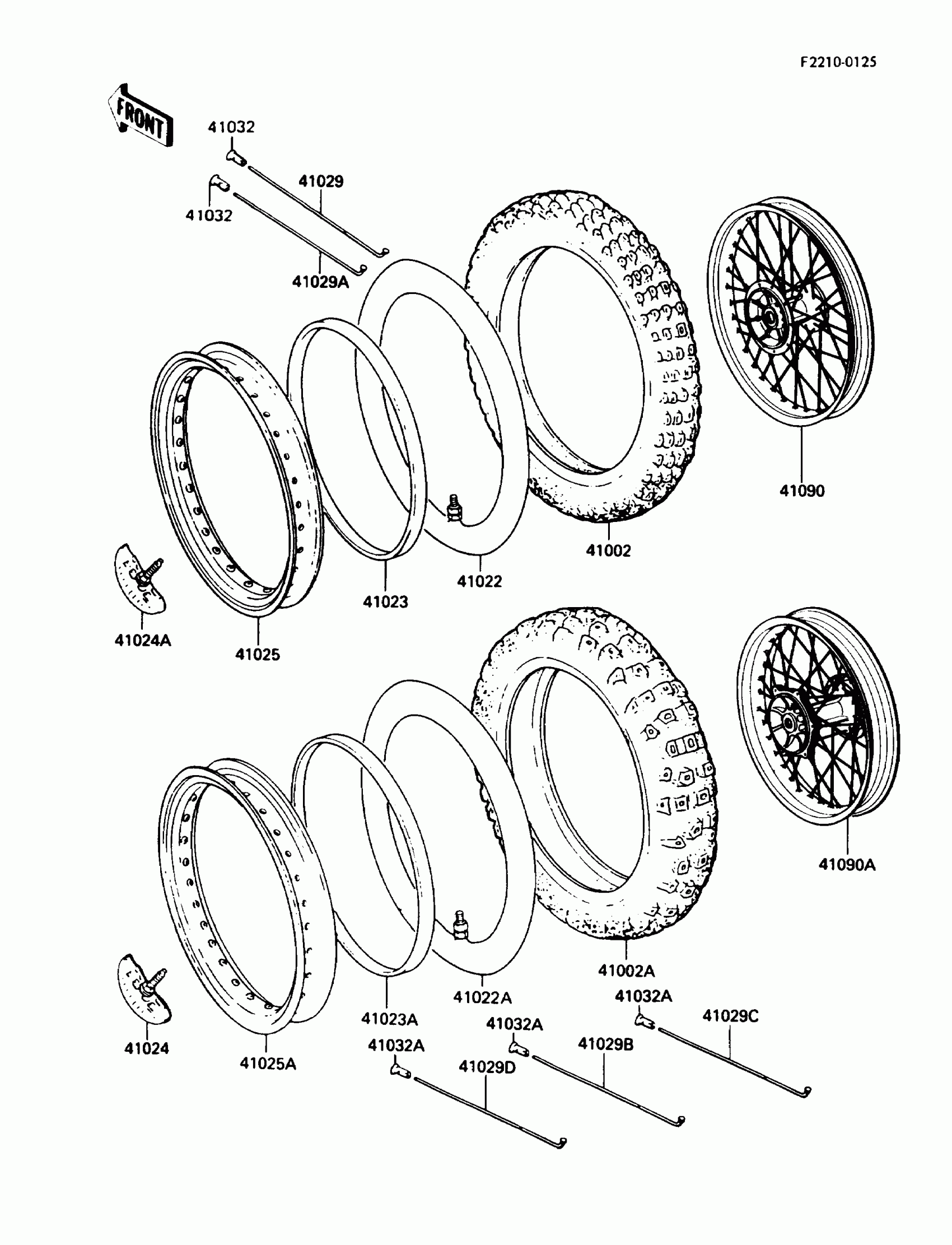

1985 Kawasaki KX500 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41002

TIRE

41002-1519

1

$152.01

In stock

41002A

TIRE

41002-1524

1

$181.84

In stock

41022

1

$51.02

In stock

41022

1

$29.58

In stock

41023

1

$13.19

In stock

41023A

1

$13.19

In stock

41024

1

$60.31

In stock

41024A

1

$52.75

In stock

41025

RIM,RR,2.15X18E7J

41025-1116

1

$327.24

In stock

41025A

RIM,FR,1.60X21

41025-1117

1
Out of stock

41029

SPOKE-INNER,RR,RH

41029-1122

1
Out of stock

41029A

1

$9.36

In stock

41029B

SPOKE-INNER,FR,LH

41029-1125

1

$4.76

In stock

41029C

SPOKE-INNER,FR,RH

41029-1126

1

$4.78

In stock

41032

1

$4.02

In stock
