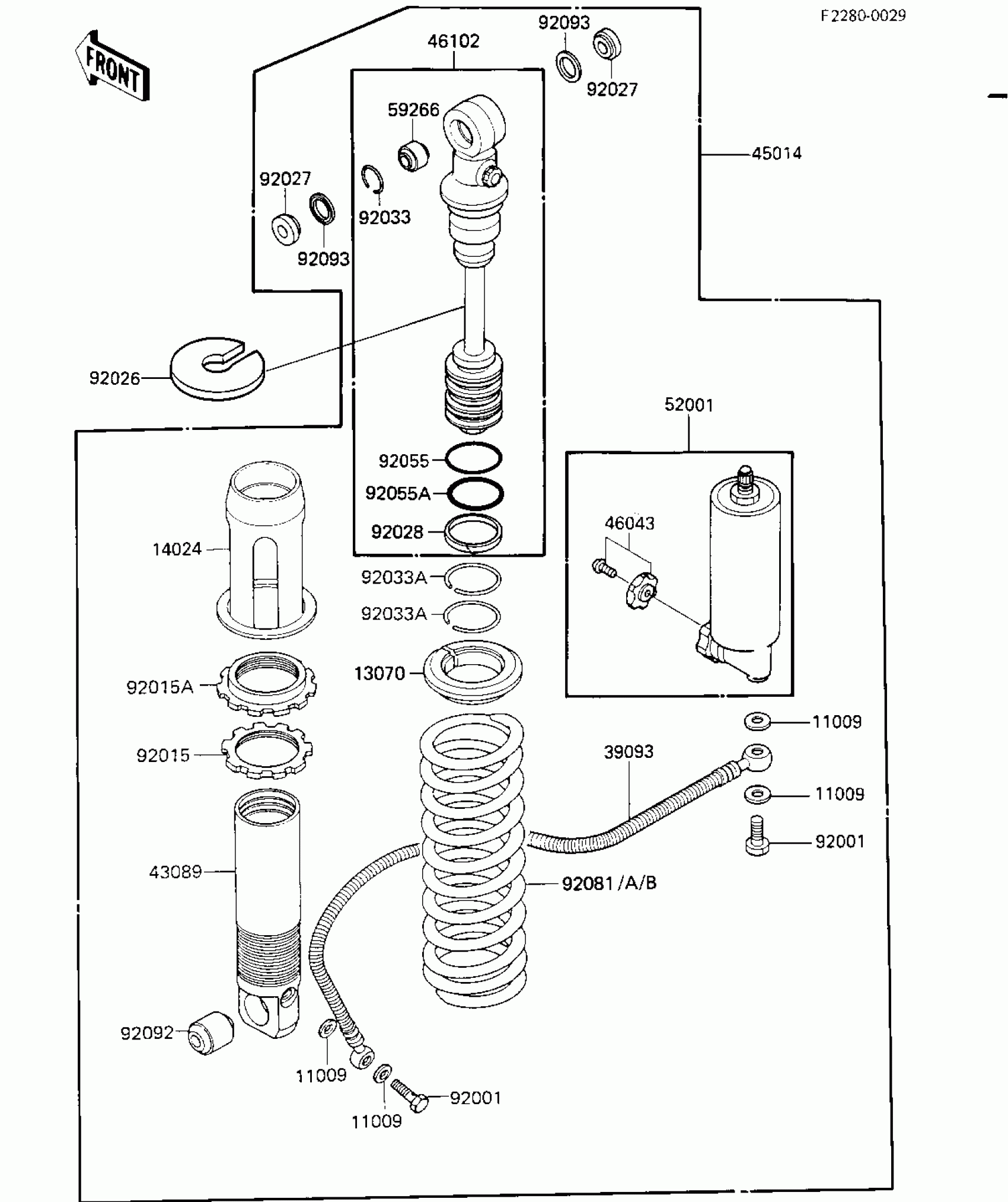

Kawasaki KX500 SHOCK ABSORBER Diagram

#

Description
Price

11009

GASKET

44045-057

$3.86

13070

GUIDE,SPRING

13070-1075

Unavailable

14024

COVER,SHOCKABSORBER

14025-1664

Unavailable

39093

PIPE-COMP-SUSP

39093-1105

$142.20

43089

CYLINDER-SHOCKABSORBE

43089-1105

Unavailable

45014

SHOCKABSORBER

45014-1298

$1,069.89

46043

KNOB-ASSY,OIL TANK

46043-1053

Unavailable

46102

ROD,SHOCKABSORBER

46102-1137

$566.77

52001

TANK-OIL,SHOCKABSORBE

52001-1058

$297.88

59266

JOINT-BALL

59266-1053

$119.17

92001

BOLT,BANJO

92001-1752

Unavailable

92015

NUT,SPRING ADJUST LOC

92015-1238

Unavailable

92015A

NUT,SPRING ADJUST

92015-1239

$52.18

92026

SPACER

92026-1253

$10.07

92027

COLLAR,SHOCKABSORBER

92027-1871

Unavailable

92028

BUSHING,ROD

92028-1288

Unavailable

92033

RING-SNAP

92033-1090

$4.76

92033A

RING-SNAP,SHOCKABSORB

92033-1194

Unavailable

92055

RING-O,ROD

92055-1181

Unavailable

92055A

RING-O,ROD

92055-1234

Unavailable

92081

SPRING,SHOCKABSORBER,

92081-1882

$272.25

92081A

SPRING

92081-1883

$183.51

92081B

SPRING,SHOCKABSORBER,

92081-1884

$272.25

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1054

$35.15

92093

SEAL

92093-1183

$15.59
