1985 Kawasaki KX500 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 1985 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

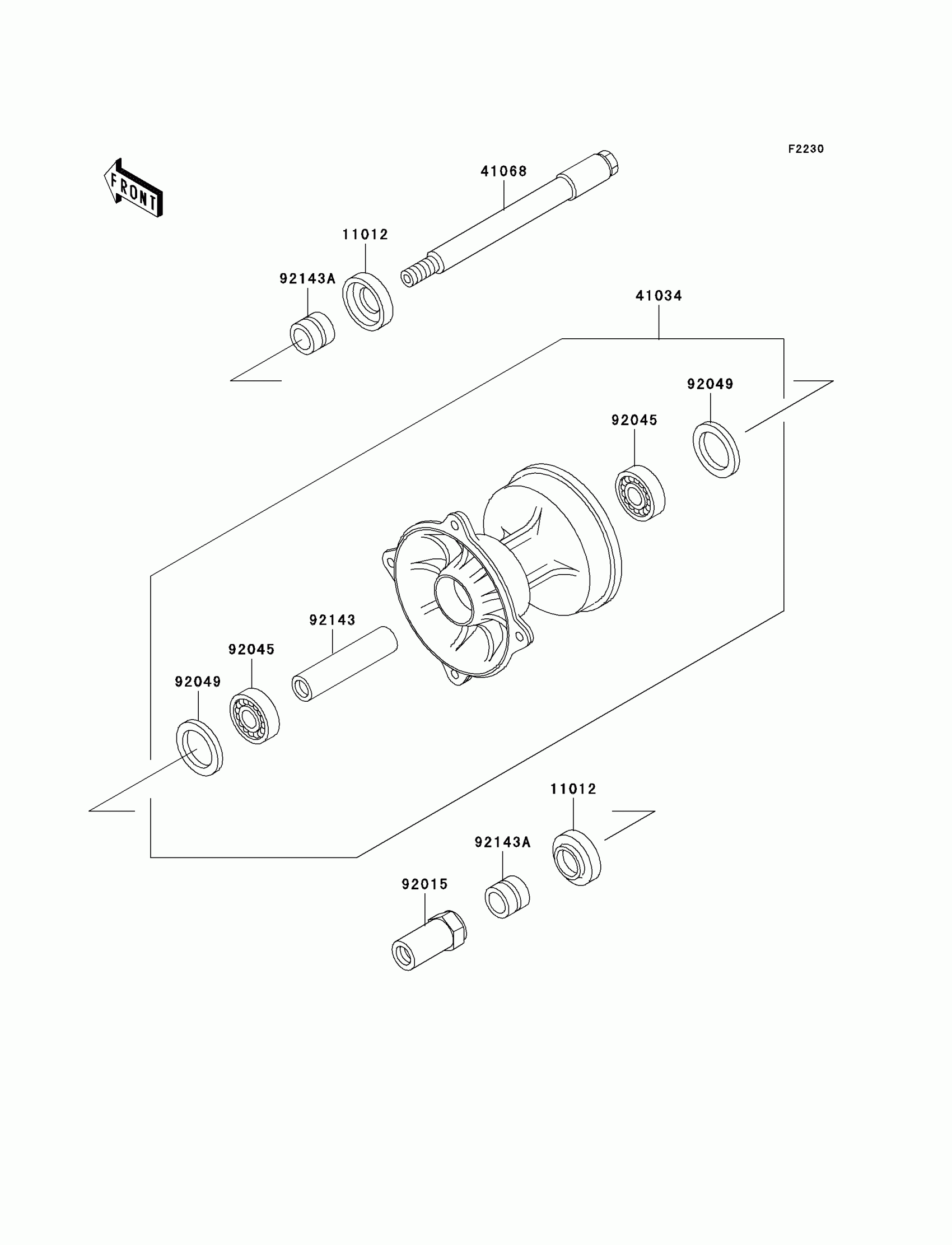

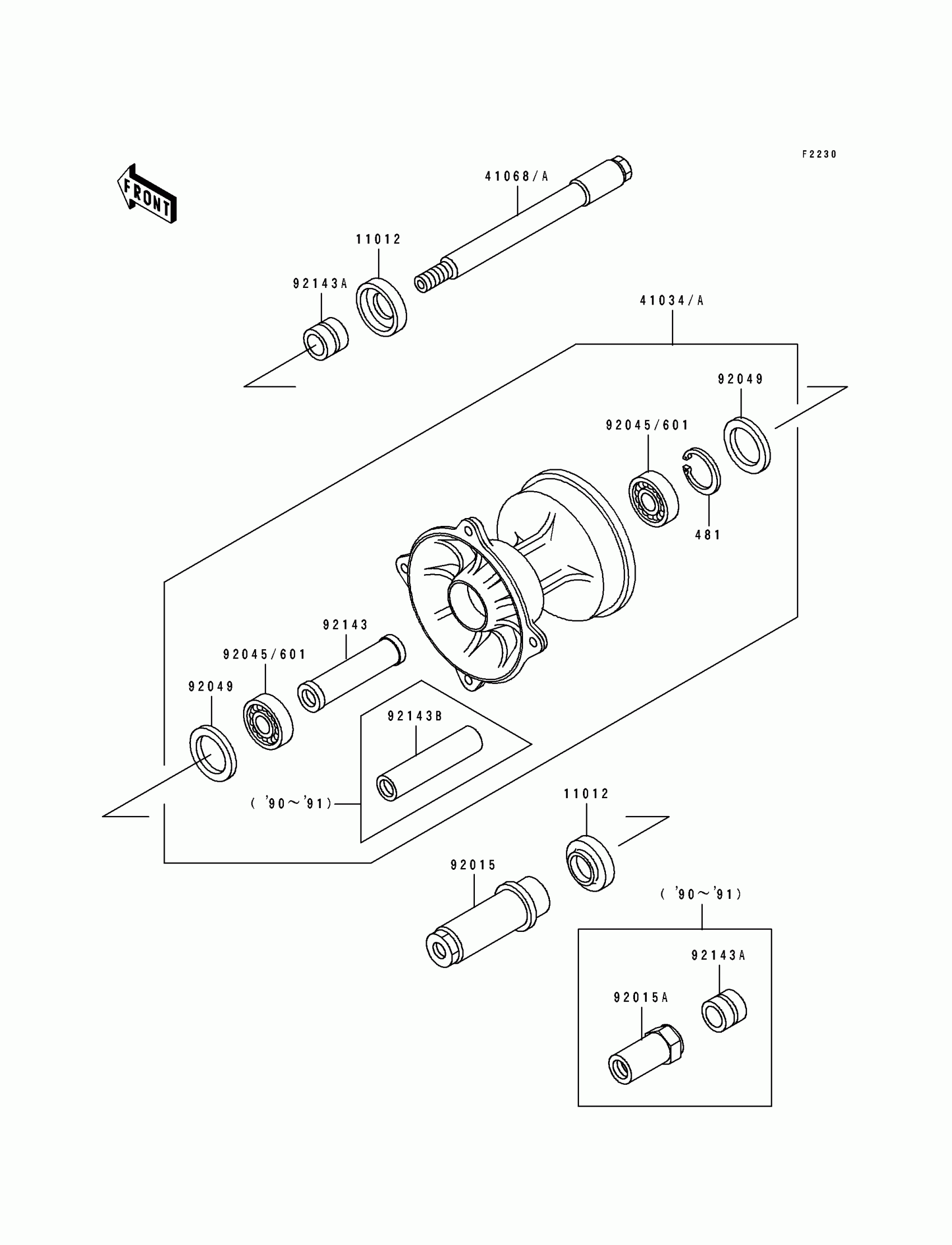

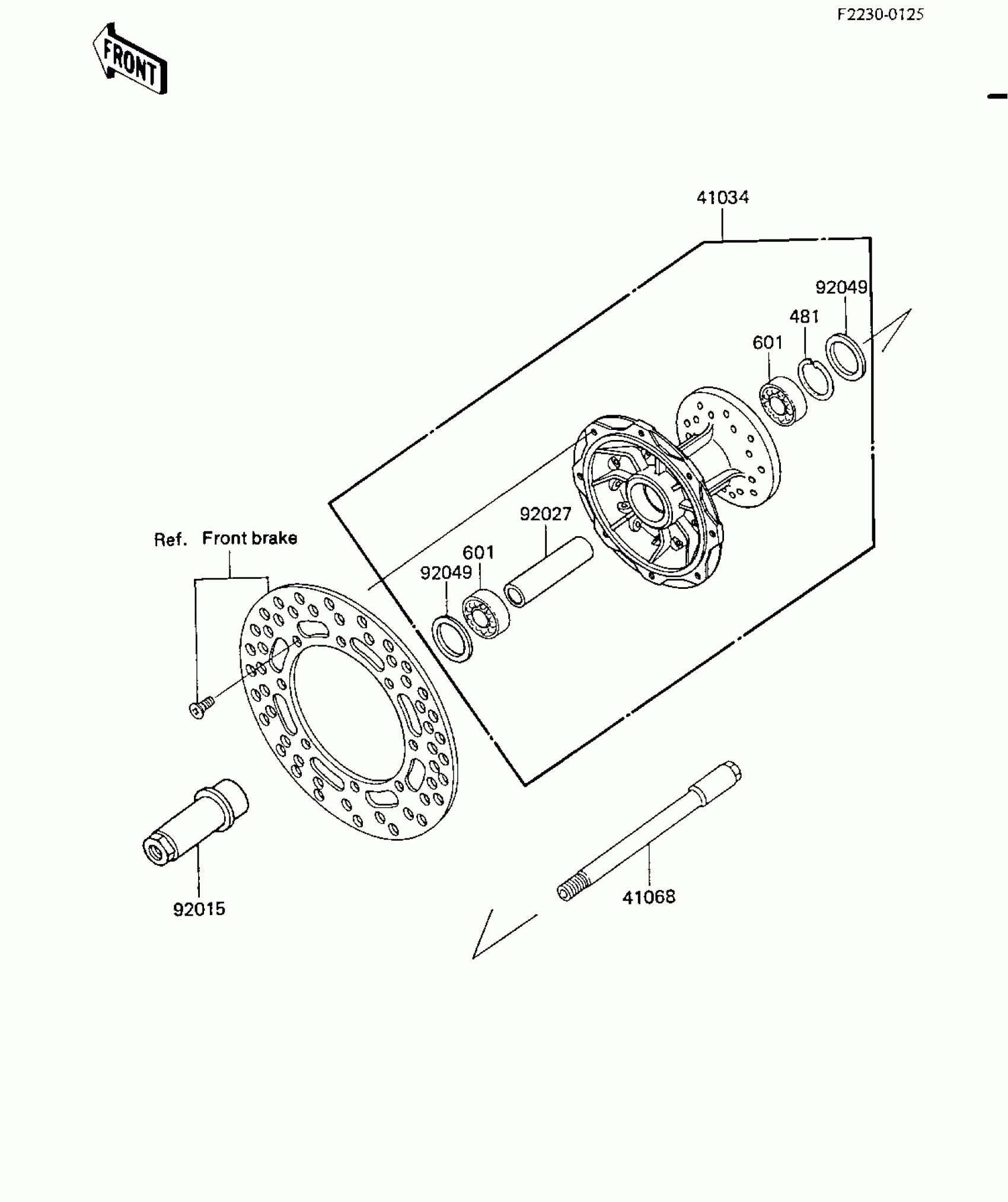

1985 Kawasaki KX500 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,FR BRAKE

41034-1115

1

$387.09

In stock

41068

AXLE,FR

41068-1241

1
Out of stock

92015

NUT,FR AXLE

92015-1462

1

$32.68

In stock

92027

COLLAR,FR BRAKE DRUM,L=78

92027-1829

1
Out of stock

92049

SEAL-OIL,BSNC2 22404

92049-1204

1
Out of stock

481

RING-SNAP,40MM

92033-1040

1

$4.67

In stock

601

1

$34.89

In stock
