1995 Kawasaki KX500 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1995 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

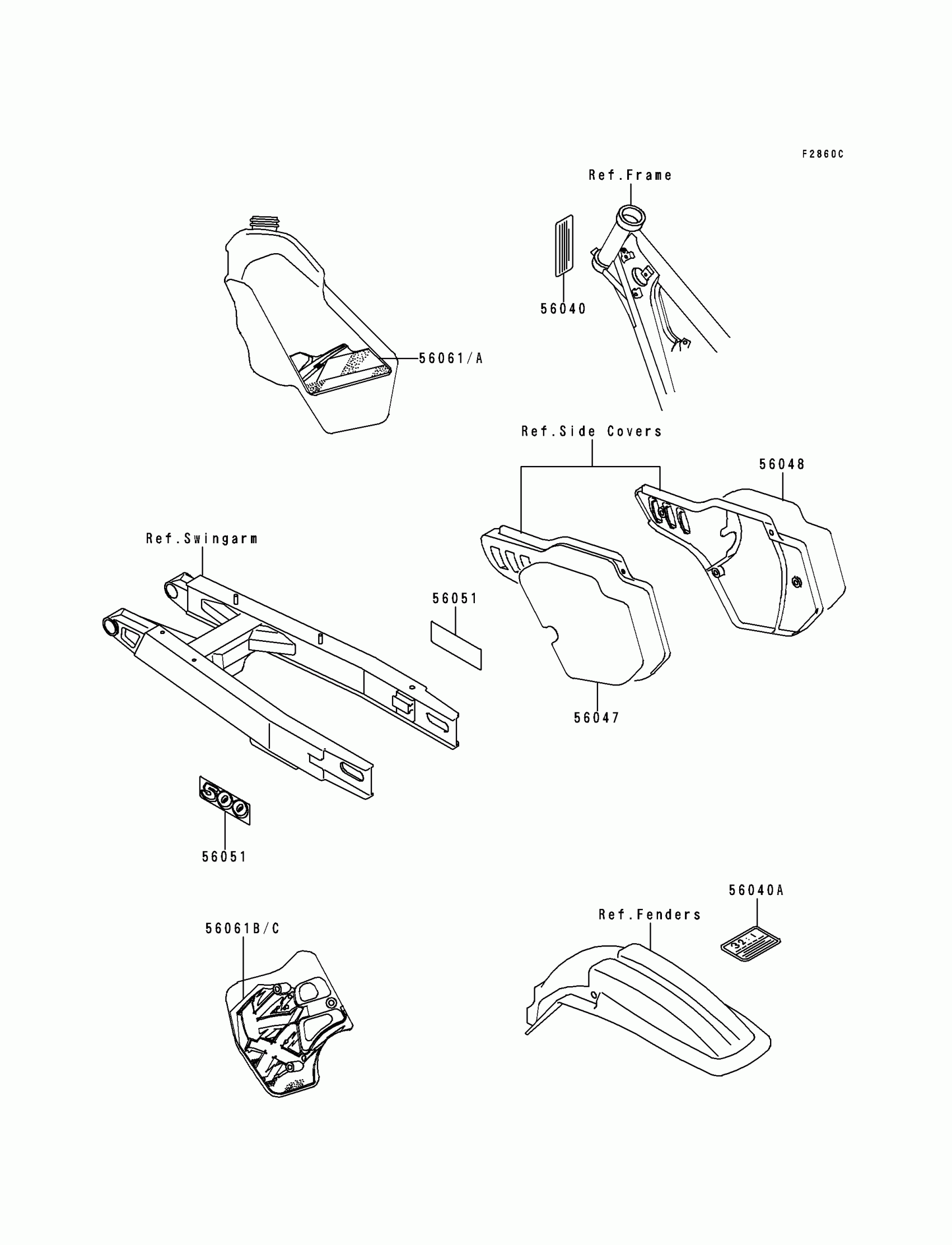

1995 Kawasaki KX500 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56040

LABEL-WARNING,NOISE

56040-1101

1
Out of stock

56040A

LABEL-WARNING,GASOLINE/OIL

56040-1129

1
Out of stock

56047

PATTERN,SIDE COVER,LH

56047-1784

1
Out of stock

56048

PATTERN,SIDE COVER,RH

56048-1524

1
Out of stock

56051

MARK,SWING ARM,500

56051-1173

1
Out of stock

56061

PATTERN,FUEL TANK,LH

56061-1090

1
Out of stock

56061A

PATTERN,FUEL TANK,RH

56061-1091

1
Out of stock

56061B

PATTERN,SHROUD,LH

56061-1092

1

$90.20

In stock

56061C

PATTERN,SHROUD,RH

56061-1093

1
Out of stock
