1985 Kawasaki KX500 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1985 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

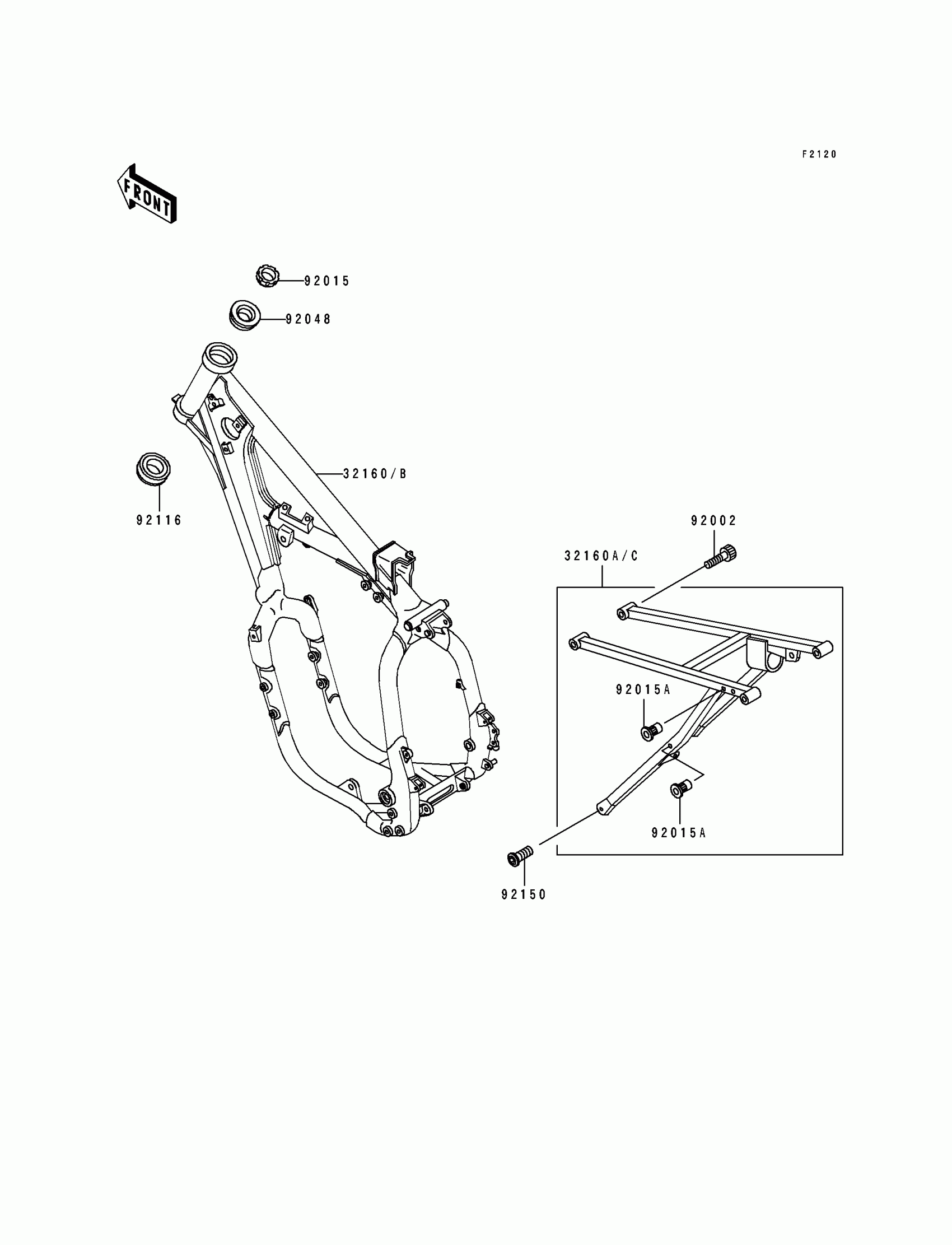

1985 Kawasaki KX500 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-015

1
Out of stock

32002

FRAME-COMP

32002-1775

1

$822.89

In stock

92015

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92048

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92116

1

$76.75

In stock
