1985 Kawasaki KX500 Fenders Diagram

← All diagrams

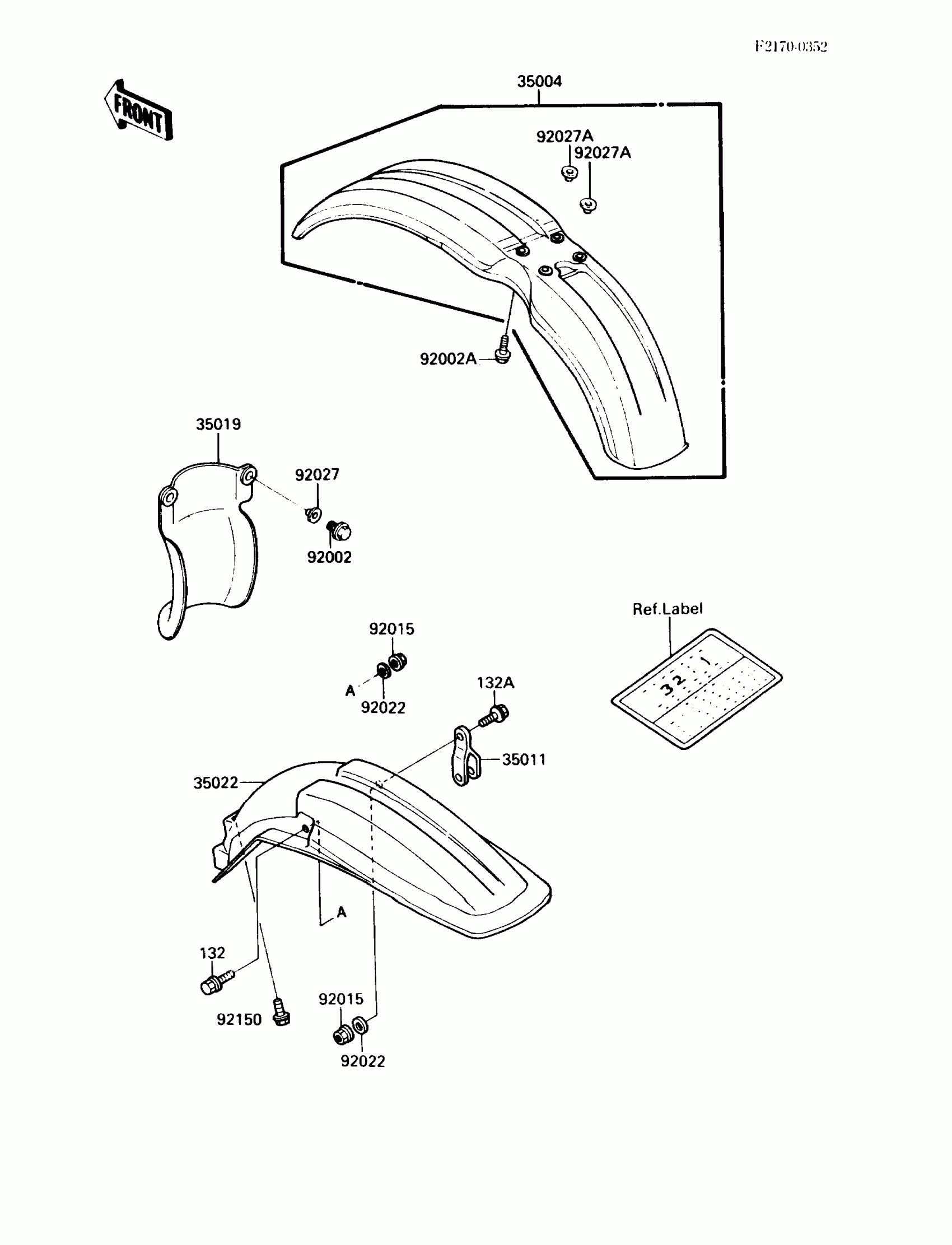

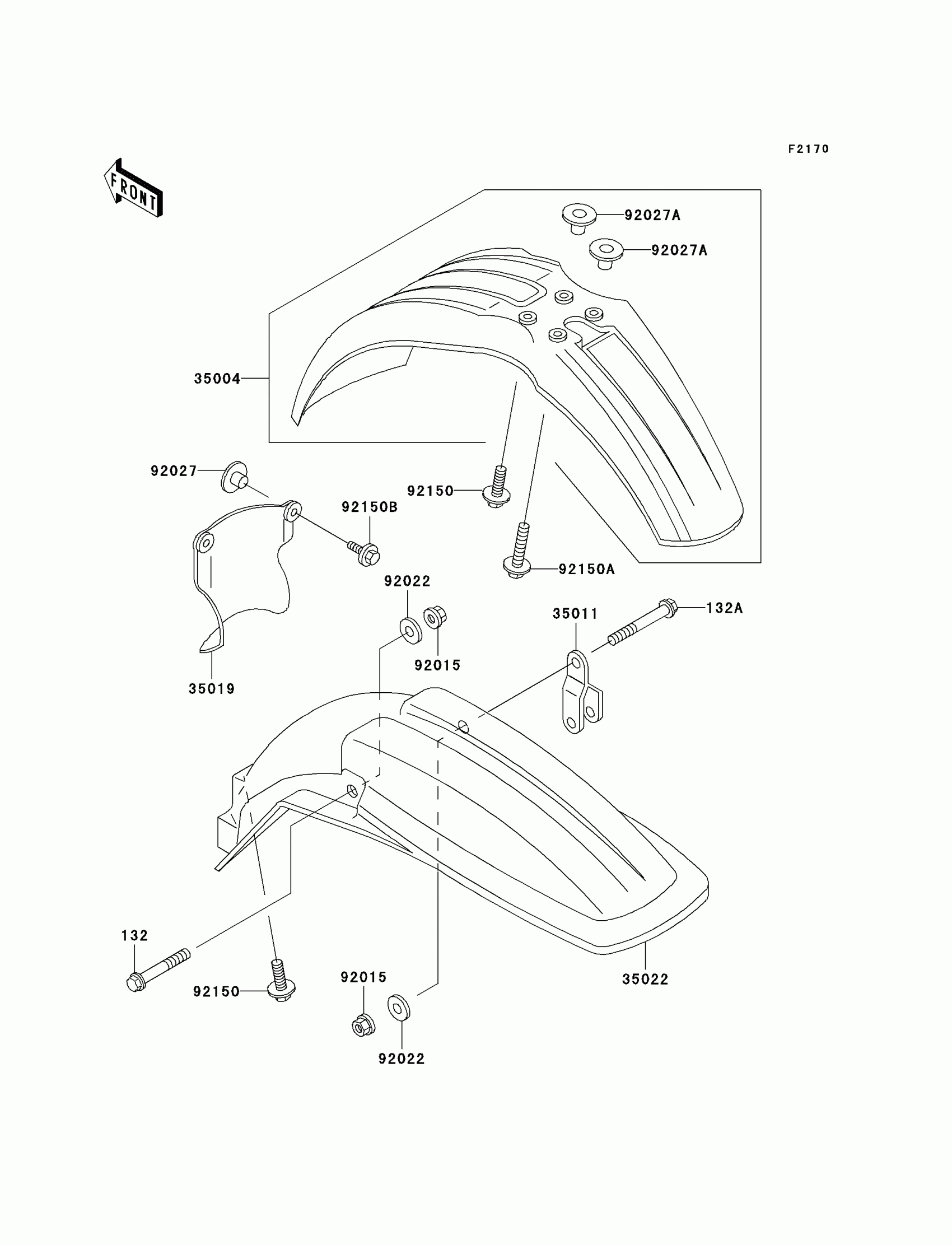

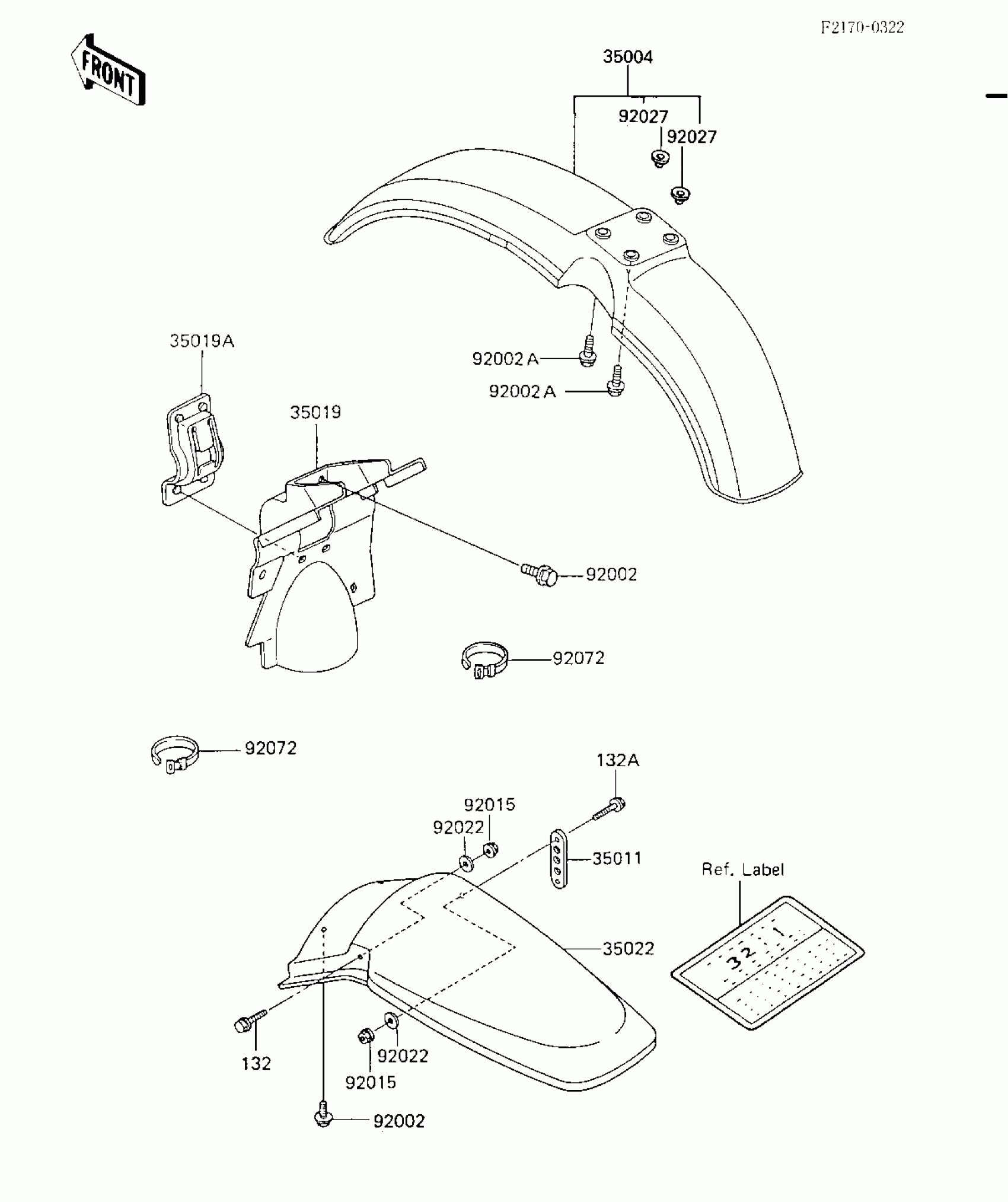

Find the part on the Fenders diagram for your 1985 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Kawasaki KX500 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,L.GREEN

35004-1167-6W

1
Out of stock

35011

STAY,MUFFLER

35011-1241

1
Out of stock

35019

FLAP,REAR FENDER

35019-1128

1
Out of stock

35019A

FLAP,REAR FENDER

35019-1129

1
Out of stock

35022

FENDER-COMP-REAR,L.GR

35022-1203-6W

1
Out of stock

92002

BOLT,6X14

92150-1340

1

$4.02

In stock

92002A

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR

92027-1757

1

$3.72

In stock

92072

BAND,L=186

92072-056

1

$3.97

In stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X40

132G0640

1
Out of stock
