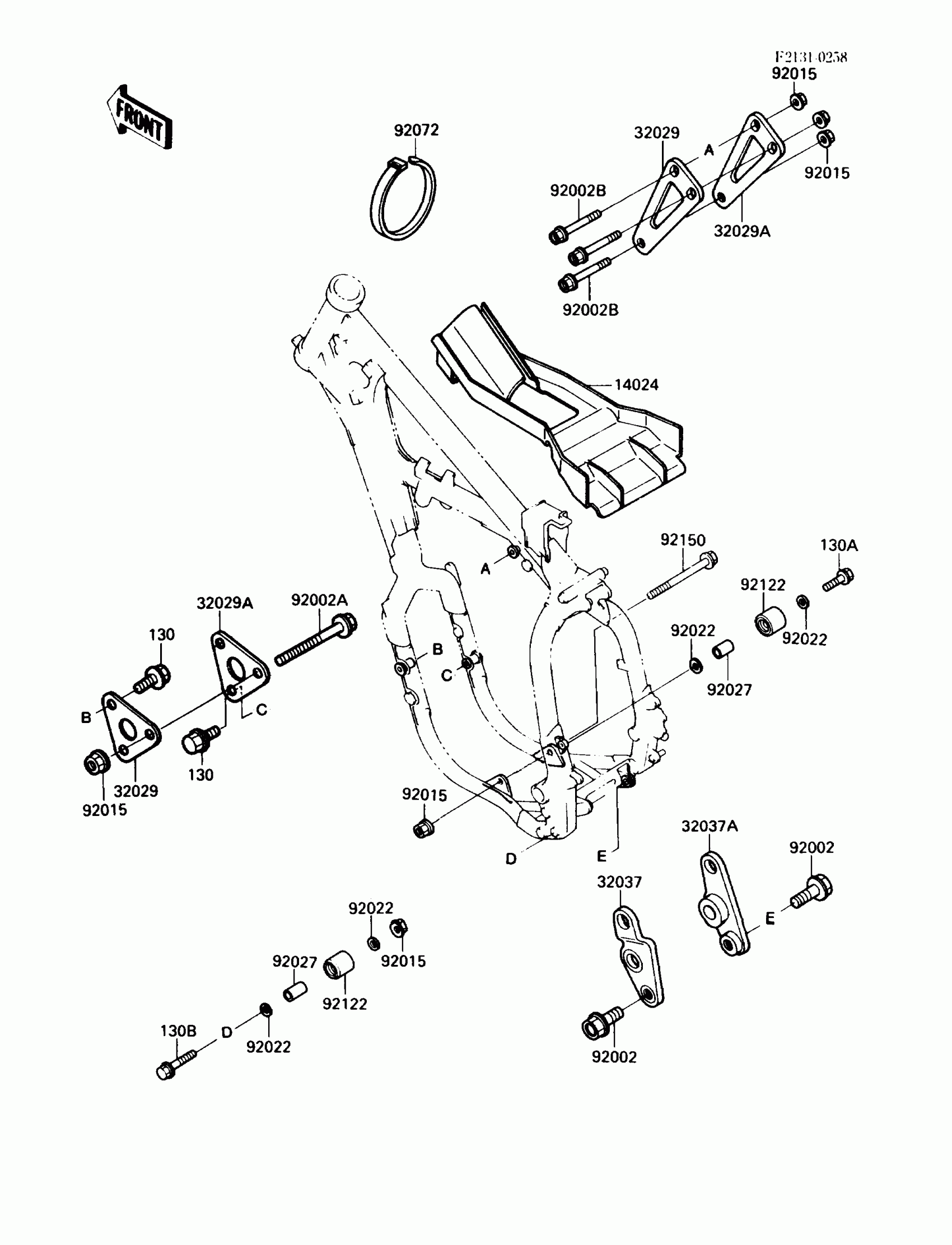

Find the part on the Frame Fittings diagram for your 1985 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Kawasaki KX500 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,UNI-TRAK

11012-1211

1
Out of stock

14024

COVER,AIR FILTER DUC

14025-1993

1
Out of stock

32029

BRACKET-ENGINE

32029-1359

1
Out of stock

32029A

BRACKET-ENGINE,FR

32029-1360

1

$45.79

In stock

32037

1

$34.10

In stock

32037A

1

$34.10

In stock

35011

STAY,MUFFLER

35011-1241

1
Out of stock

92002

BOLT,FLANGED,8X90

92002-1416

1
Out of stock

92002A

BOLT,6X14

92150-1340

1

$4.02

In stock

92002B

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92002C

BOLT,FLANGED,8X100

92002-1543

1
Out of stock

92002D

BOLT

92002-1544

1
Out of stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,8MM

92015-1143

1
Out of stock

92015B

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92022

WASHER,8.5X22X1.5

92022-1629

1

$4.87

In stock

92027

COLLAR,CHAIN ROLLER

92027-1670

1

$7.25

In stock

92037

CLAMP,RESERVE TANK

92037-1586

1

$11.90

In stock

92072

BAND,L=149

92072-031

1

$3.97

In stock

92072A

BAND,L=218

92072-032

1

$3.97

In stock

92122

ROLLER,CHAIN GUIDE

92122-1117

1
Out of stock

130

BOLT-FLANGED,8X25

130G0825

1
Out of stock

130A

BOLT-FLANGED,8X50

130G0850

1
Out of stock

130B

BOLT-FLANGED,10X20

130P1020

1
Out of stock

131

BOLT-FLANGED,10X55

131G1055

1
Out of stock
