1985 Kawasaki KX500 Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1985 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

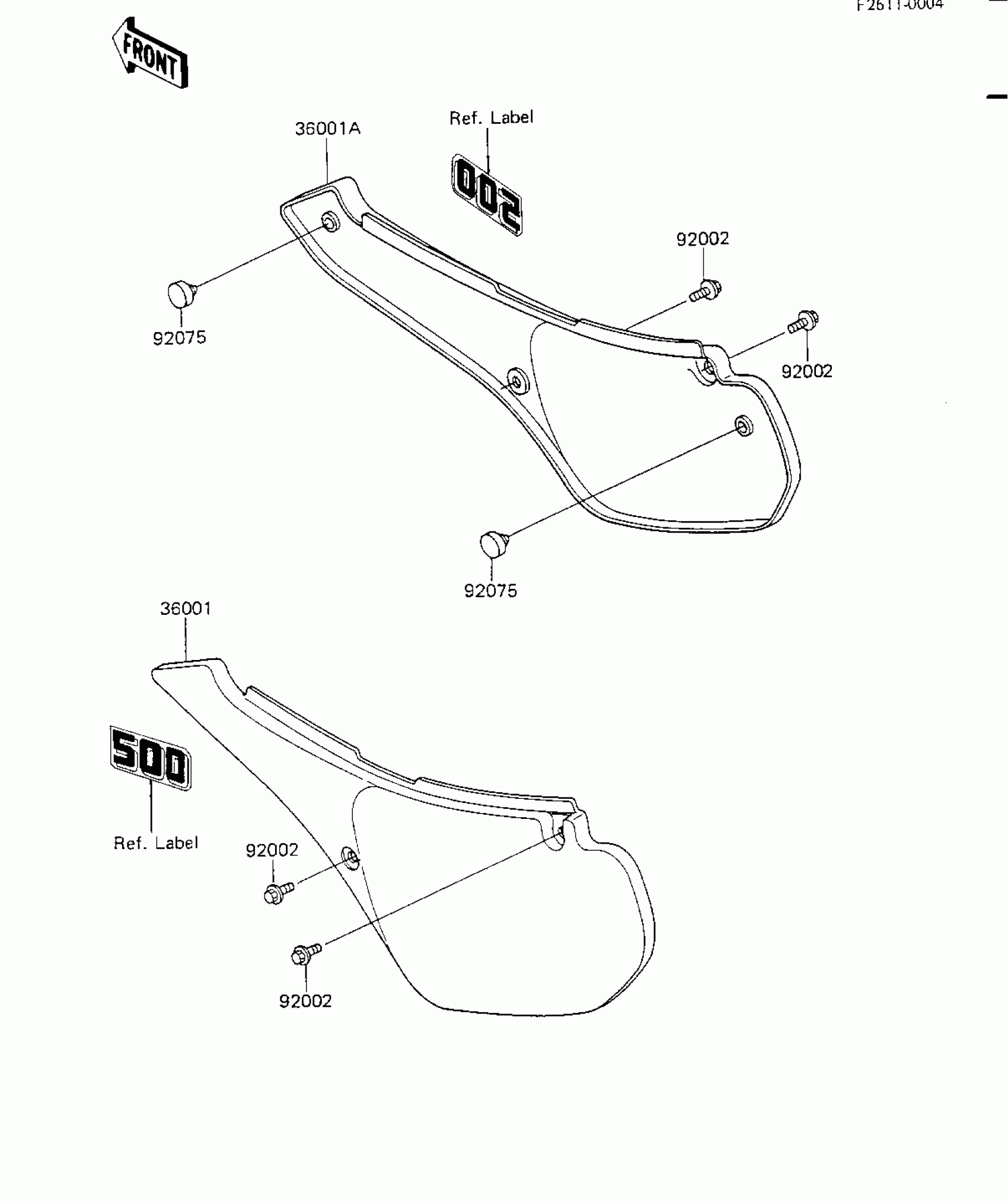

1985 Kawasaki KX500 Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,L.GREEN

36001-1279-AE

1
Out of stock

36001A

COVER-SIDE,RH,L.GREEN

36001-1280-AE

1
Out of stock

92002

BOLT,6X14

92150-1340

1

$4.02

In stock

92075

DAMPER

92075-1598

1

$6.82

In stock
