2006 Kawasaki KX450F Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

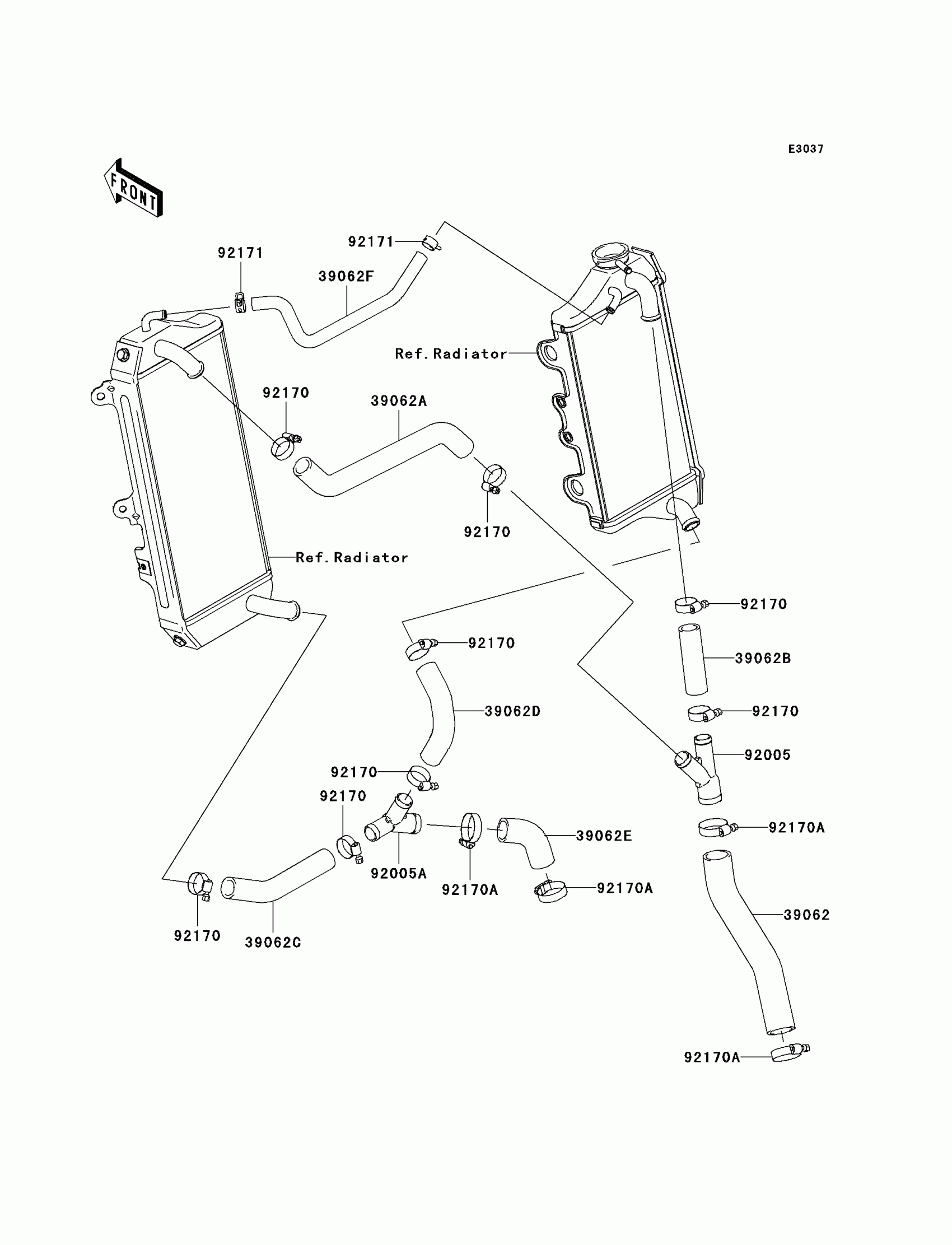

2006 Kawasaki KX450F Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39062

HOSE-COOLING

39062-0083

1

$40.04

In stock

39062A

1

$30.39

In stock

39062B

1

$9.56

In stock

39062C

HOSE-COOLING

39062-0086

1

$32.61

In stock

39062D

1

$13.22

In stock

39062E

1

$12.83

In stock

39062F

1

$19.88

In stock

92005

FITTING,HEAD-RAD.LH&RH

92005-0019

1
Out of stock

92005A

FITTING

92005-0034

1
Out of stock

92170

CLAMP,HOSE,26MM

92170-1077

1

$6.64

In stock

92170A

CLAMP,HOSE,32MM

92170-1286

1
Out of stock

92171

CLAMP,CLIP,12.5MM

92171-0372

1

$2.71

In stock
