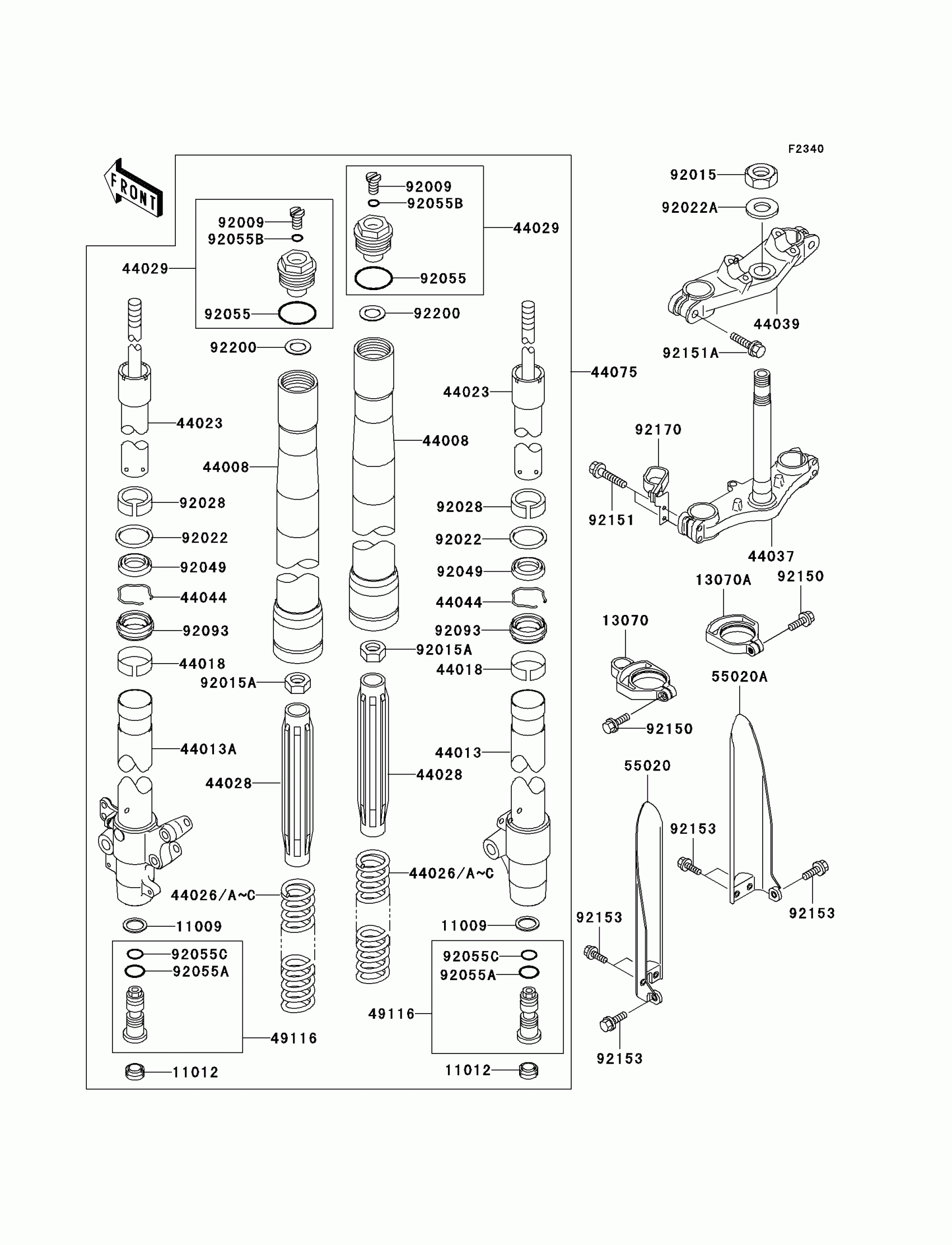

Kawasaki KX100 Front Fork(D6F) Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1592

$4.64

11012

CAP

11012-1692

$5.37

13070

GUIDE,PROTECTOR,LH,WHITE

13070-0049-RZ

$16.84

13070A

GUIDE,PROTECTOR,RH,WHITE

13070-0050-RZ

$19.53

44008

PIPE-FORK OUTER,GOLD

44008-1041-828

$475.34

44013

PIPE-FORK INNER,RH

44013-1442

$311.60

44013A

PIPE-FORK INNER,LH

44013-1484

$276.05

44018

PISTON-FORK

44018-1058

$20.03

44023

CYLINDER-SET-FORK

44023-1119

$377.50

44026

SPRING-FRONT FORK,K=2.75N/MM

44026-1633

$61.68

44026A

SPRING-FRONT FORK,K=2.84N/MM

44026-1634

$61.68

44026B

SPRING-FRONT FORK,K=2.94N/MM

44026-1635

$61.68

44026C

SPRING-FRONT FORK,K=2.65N/MM

44026-1671

$65.86

44028

GUIDE-FORK SPRING

44028-1090

$41.69

44029

SEAT-FORK SPRING

44029-1152

$68.94

44037

HOLDER-FORK UNDER,M.M.GOLD

44037-0032-D3

$346.68

44039

HOLDER-FORK UPPER,M.M.GOLD

44039-0023-D3

$156.64

44044

RING-SNAP

44044-015

$11.66

44075

DAMPER-SET-FORK,GOLD

44075-1131-828

$1,293.06

49116

VALVE-ASSY,FORK

49116-1153

$144.30

55020

GUARD,FORK,LH,WHITE

55020-1611-RZ

$30.65

55020A

GUARD,FORK,RH,WHITE

55020-1612-RZ

$30.65

92009

SCREW

92009-1568

$5.51

92015

NUT,STEERING STEM,22MM

92015-1653

$12.66

92015A

NUT

92015-1839

$18.34

92022

WASHER,FRONT FORK

92022-1275

$7.25

92022A

WASHER,STEERING STEM

92022-1873

$5.69

92028

BUSHING

92028-1656

$15.29

92049

SEAL-OIL,FORK OUTER TUBE

92049-1394

$18.34

92055

RING-O

92055-1123

$4.67

92055A

RING-O

92055-1156

$1.08

92055B

RING-O,2.8X6.6X1.9

92055-1441

$3.31

92055C

RING-O,FORK VALVE

92055-1502

$7.36

92093

SEAL,FORK OUTER TUBE

92093-1426

$21.44

92150

BOLT,5X16

92150-1802

$4.42

92151

BOLT,FLANGED,8X40

92151-1877

$5.19

92151A

BOLT,FLANGED,8X35

92151-1878

$3.63

92153

BOLT,FLANGED,6X14

92153-0936

$2.09

92170

CLAMP

92170-1810

$7.23

92200

WASHER

92200-1655

$5.08
