2009 Kawasaki KX™100 Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

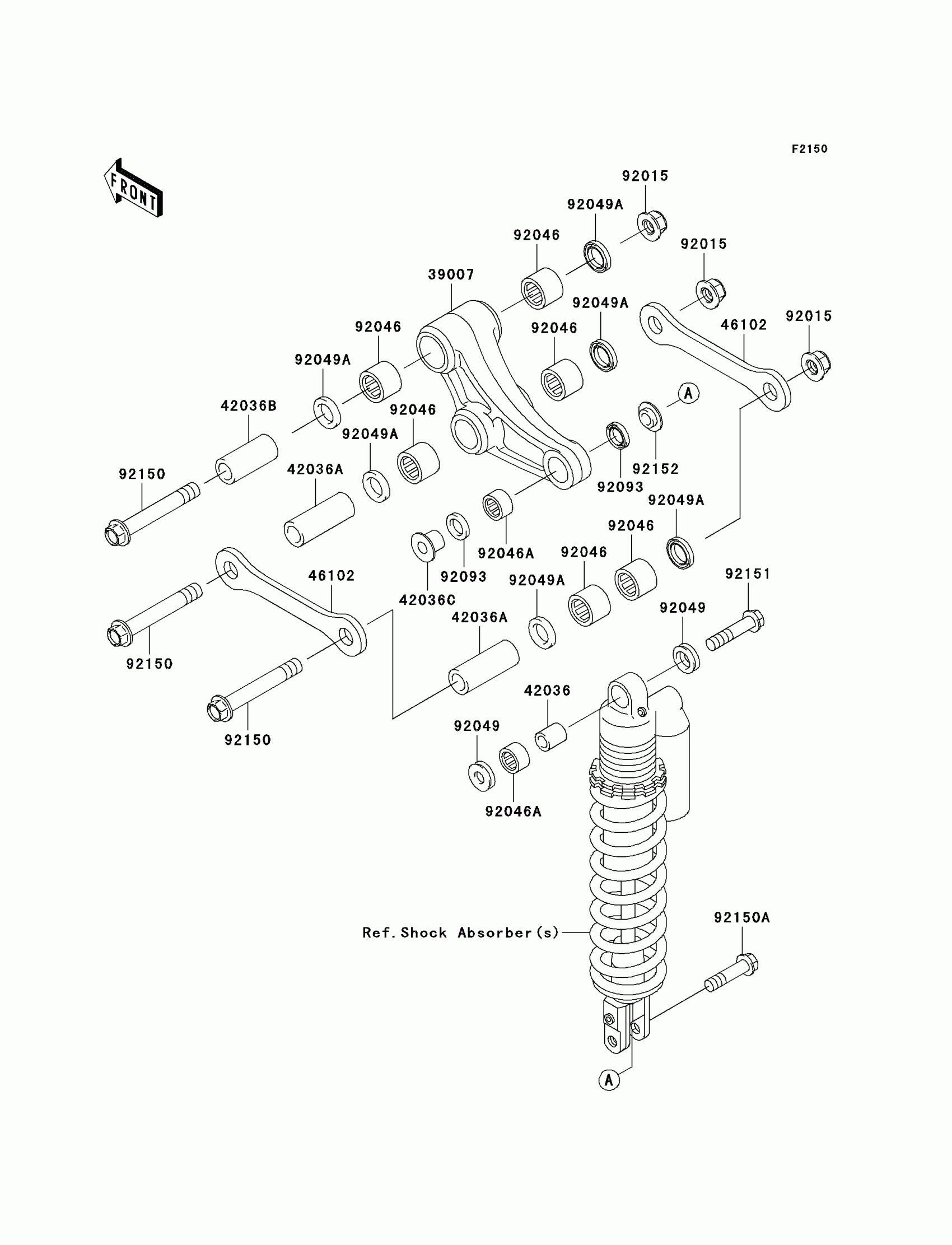

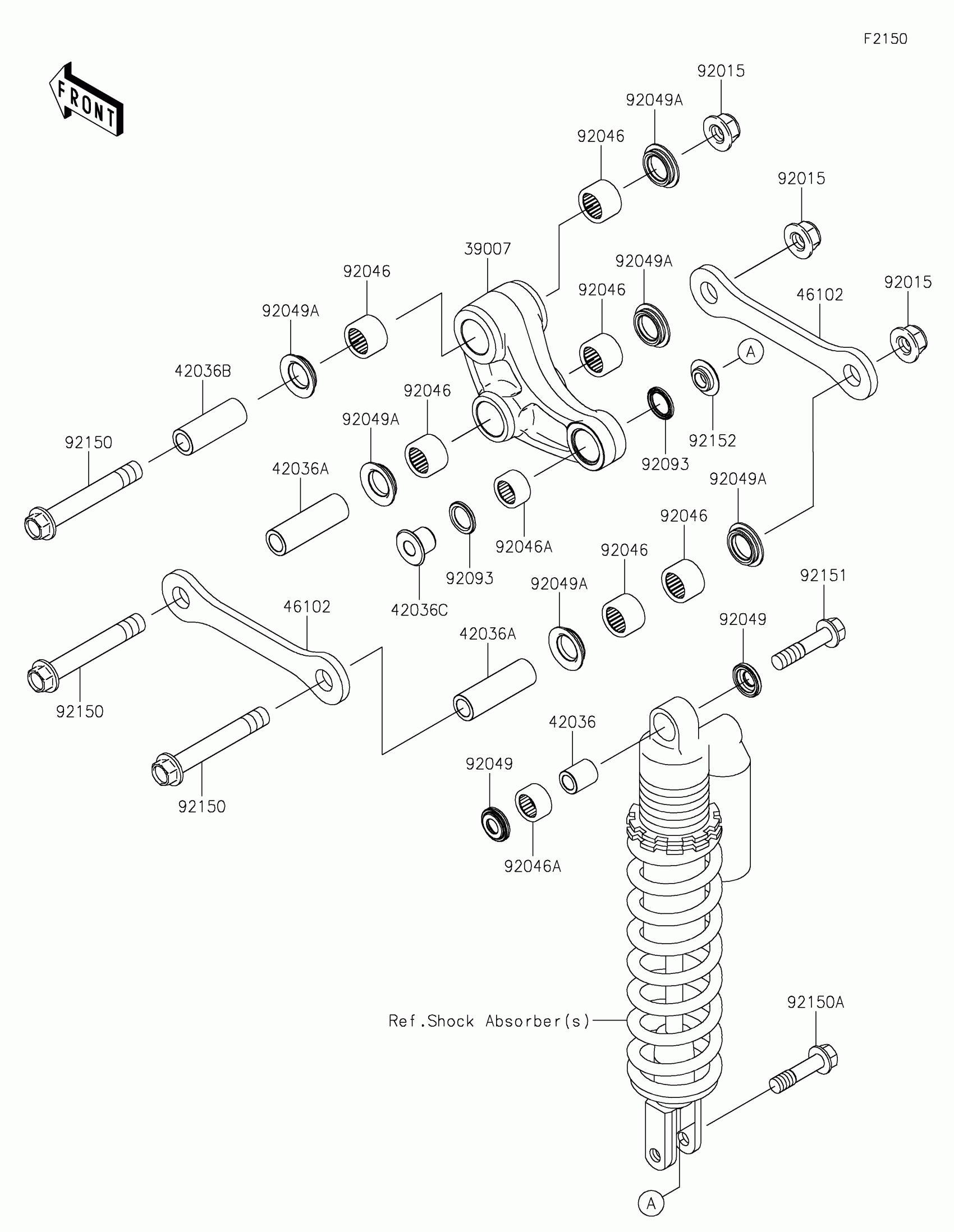

2009 Kawasaki KX™100 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1262

1

$164.67

In stock

42036

SLEEVE,10X16X19

42036-1248

1

$7.86

In stock

42036A

SLEEVE,12X18X57

42036-1273

1

$16.78

In stock

42036B

SLEEVE,12X18X49

42036-1274

1

$14.36

In stock

42036C

SLEEVE

42036-1351

1

$8.94

In stock

46102

ROD,SUSPENSION

46102-1291

1

$20.66

In stock

92015

1

$7.04

In stock

92046

BEARING-NEEDLE,18BM2416

92046-1144

1
Out of stock

92046A

BEARING-NEEDLE,16BM2212

92046-1192

1
Out of stock

92049

SEAL-OIL

92049-0069

1
Out of stock

92049A

SEAL-OIL

92049-1328

1
Out of stock

92093

SEAL

92093-1436

1

$5.77

In stock

92150

BOLT,FLANGED,12X83

92150-1412

1

$9.78

In stock

92150A

BOLT,FLANGED,10X40

92150-1711

1

$9.78

In stock

92151

BOLT,FLANGED,10X45

92151-1413

1

$3.56

In stock

92152

COLLAR

92152-1139

1

$7.04

In stock
