2009 Kawasaki KX™100 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

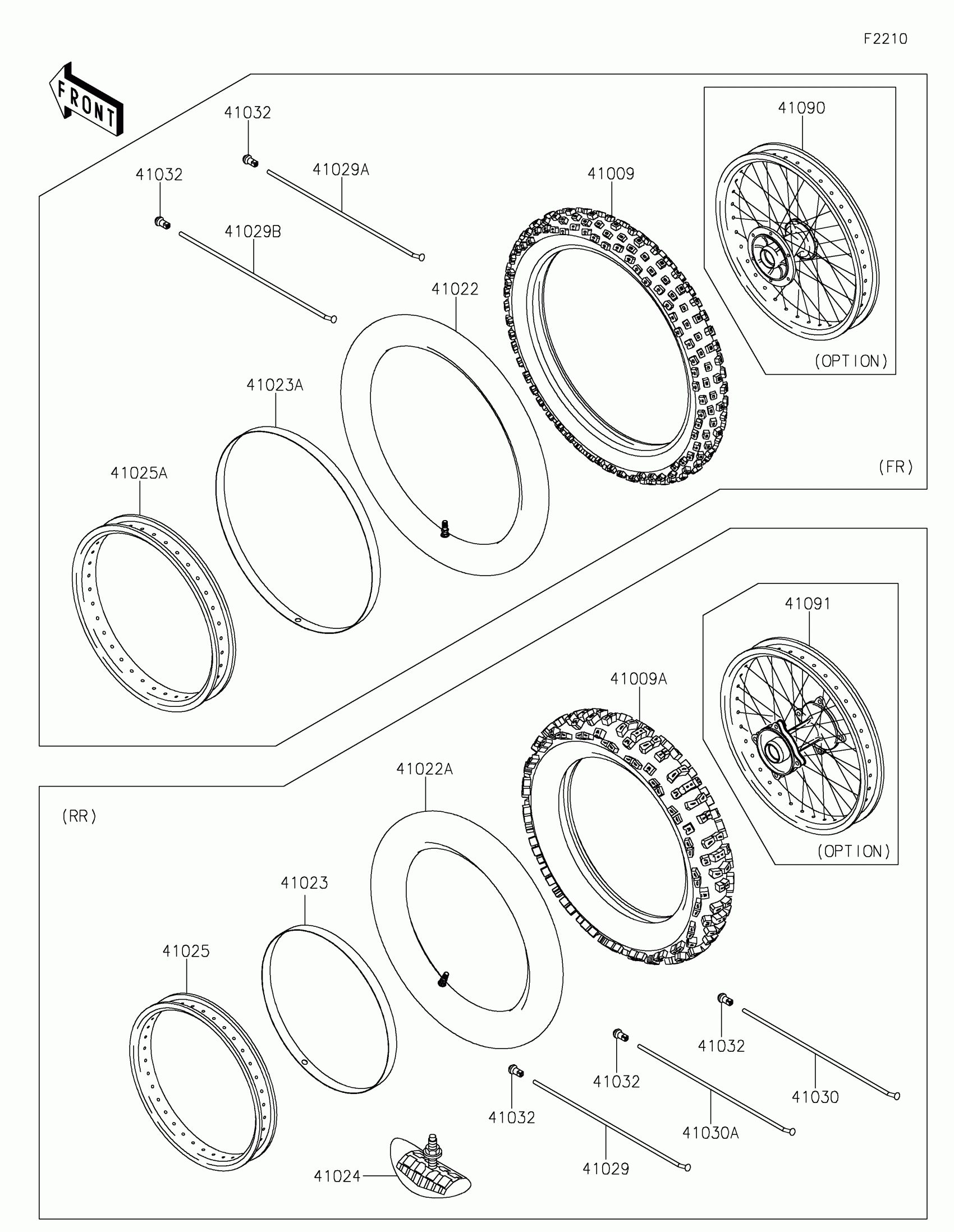

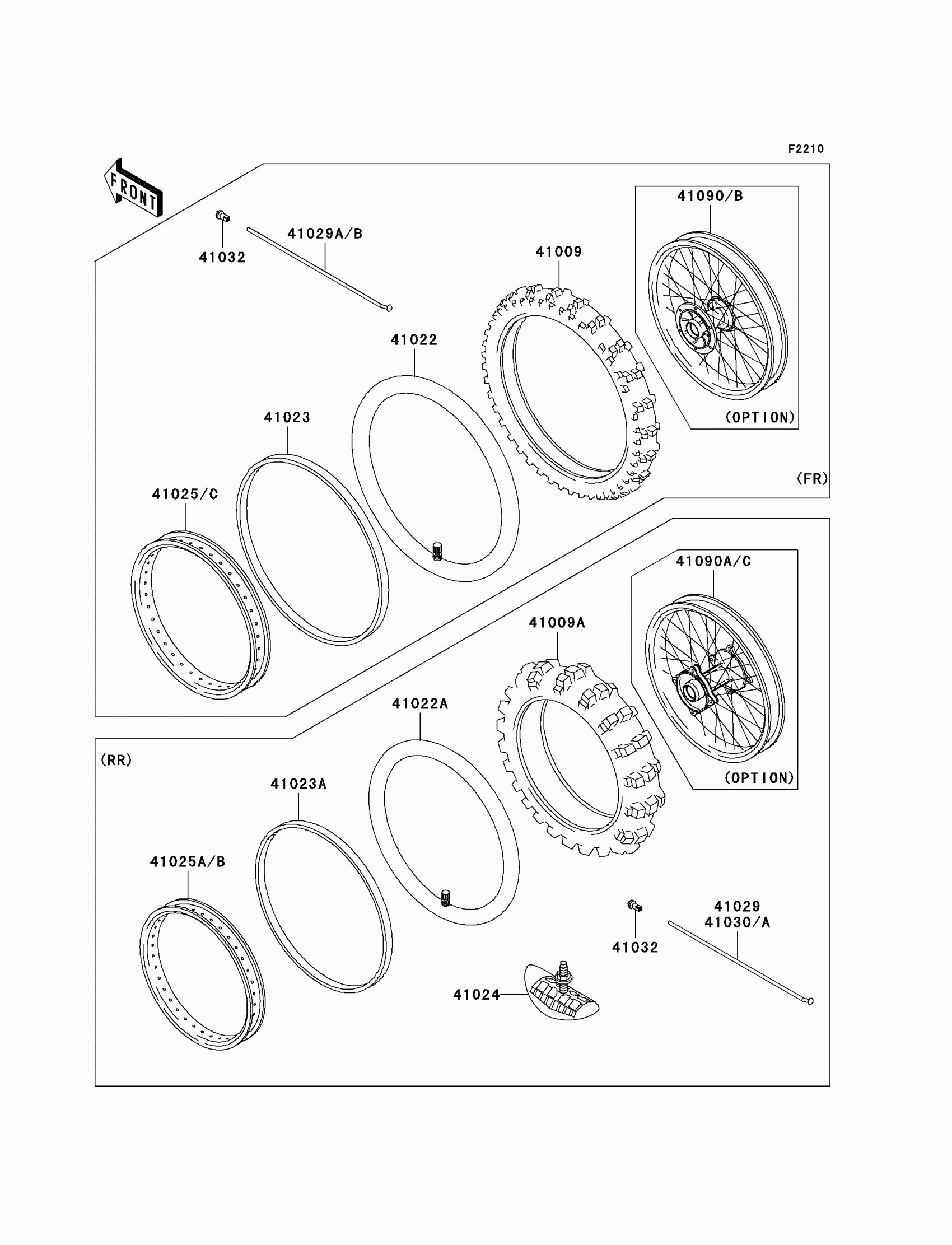

2009 Kawasaki KX™100 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

1

$124.87

In stock

41009A

1

$150.18

In stock

41022

1

$50.73

In stock

41022A

1

$49.77

In stock

41023

BAND-RIM,X-19(BS)

41023-1122

1

$13.80

In stock

41023A

BAND-RIM,X-16A(BS)

41023-1123

1

$13.68

In stock

41024

1

$48.17

In stock

41025

RIM,FR,1.40X19,BLACK

41025-0133-WC

1

$424.87

In stock

41025A

RIM,RR,1.85X16,BLACK

41025-0134-WC

1

$424.87

In stock

41029

1

$3.25

In stock

41029A

1

$2.93

In stock

41029B

1

$2.93

In stock

41030

1

$3.25

In stock

41030A

1

$3.25

In stock

41032

1

$2.96

In stock

41090B

1

$856.58

In stock

41090C

1

$856.58

In stock
