2009 Kawasaki KX™100 Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

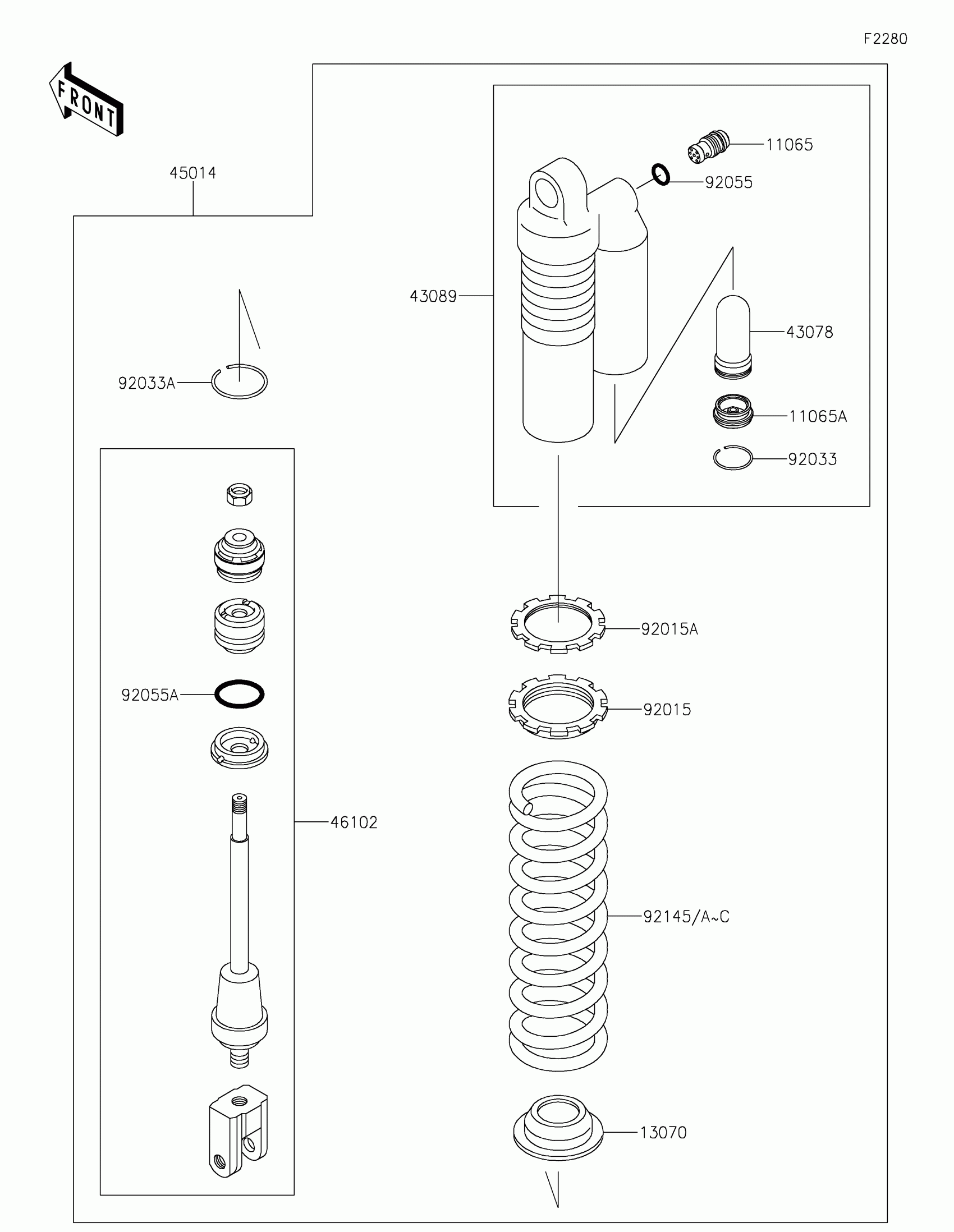

2009 Kawasaki KX™100 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,VALVE AIR

11012-1391

1

$5.02

In stock

13070

GUIDE,SPRING

13070-1233

1

$34.54

In stock

43078

1

$88.21

In stock

43089

1

$529.99

In stock

45014B

SHOCKABSORBER

45014-5047

1

$990.39

In stock

46102

ROD,SHOCKABSORBER

46102-1411

1

$708.31

In stock

92002

BOLT,DRAIN

92002-1955

1
Out of stock

92015

NUT,SPRING ADJUST

92015-1679

1

$35.79

In stock

92015A

1

$32.17

In stock

92033

RING-SNAP,REARSHOCK

92033-1091

1

$4.39

In stock

92033A

1

$3.81

In stock

92055

RING-O,ROD

92055-1334

1

$7.25

In stock

92055A

RING-O

92055-1383

1

$3.27

In stock

92144A

1

$393.82

In stock

92144D

1

$393.82

In stock

92144G

1

$393.82

In stock

92145A

1

$393.82

In stock
