2009 Kawasaki KX™100 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

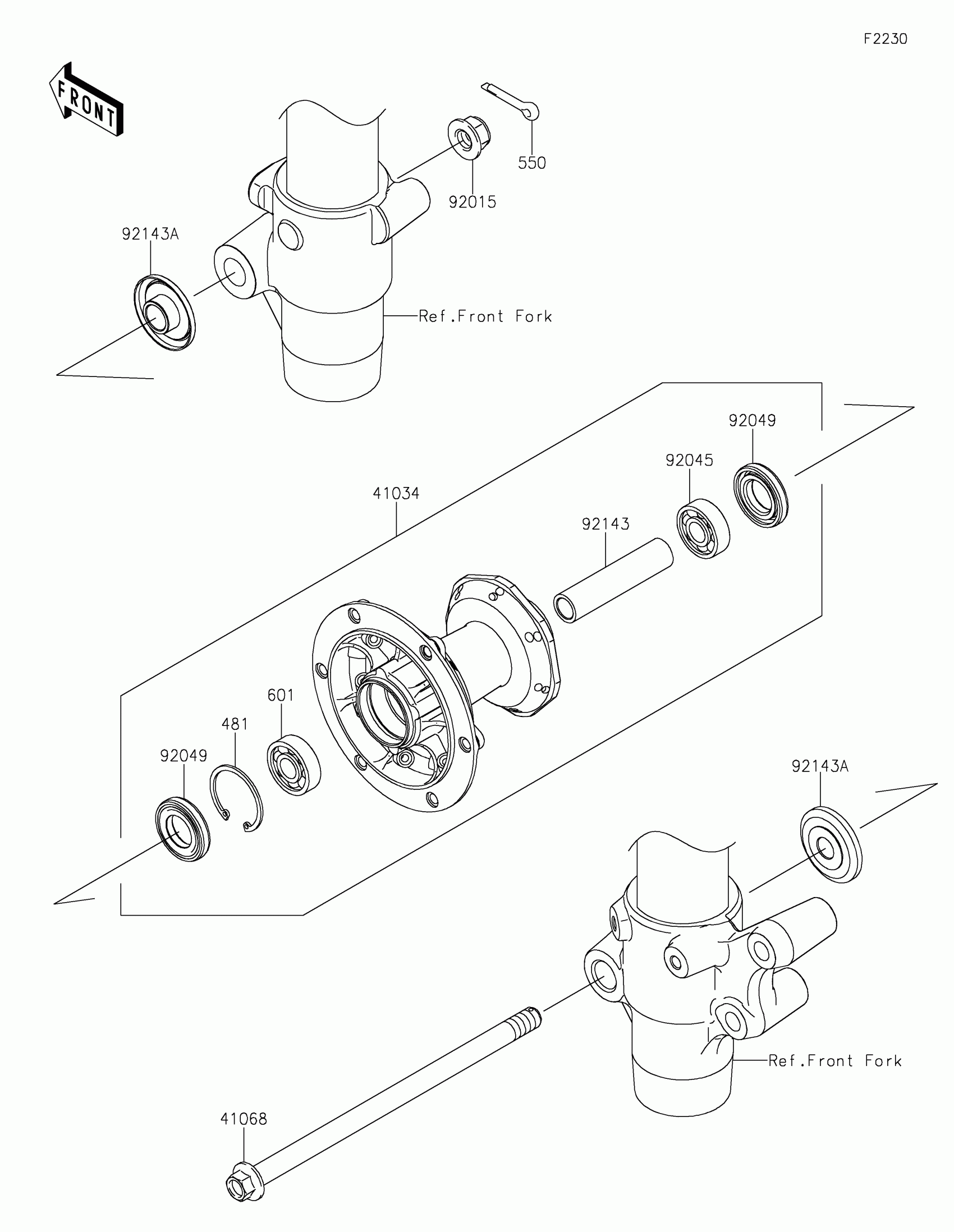

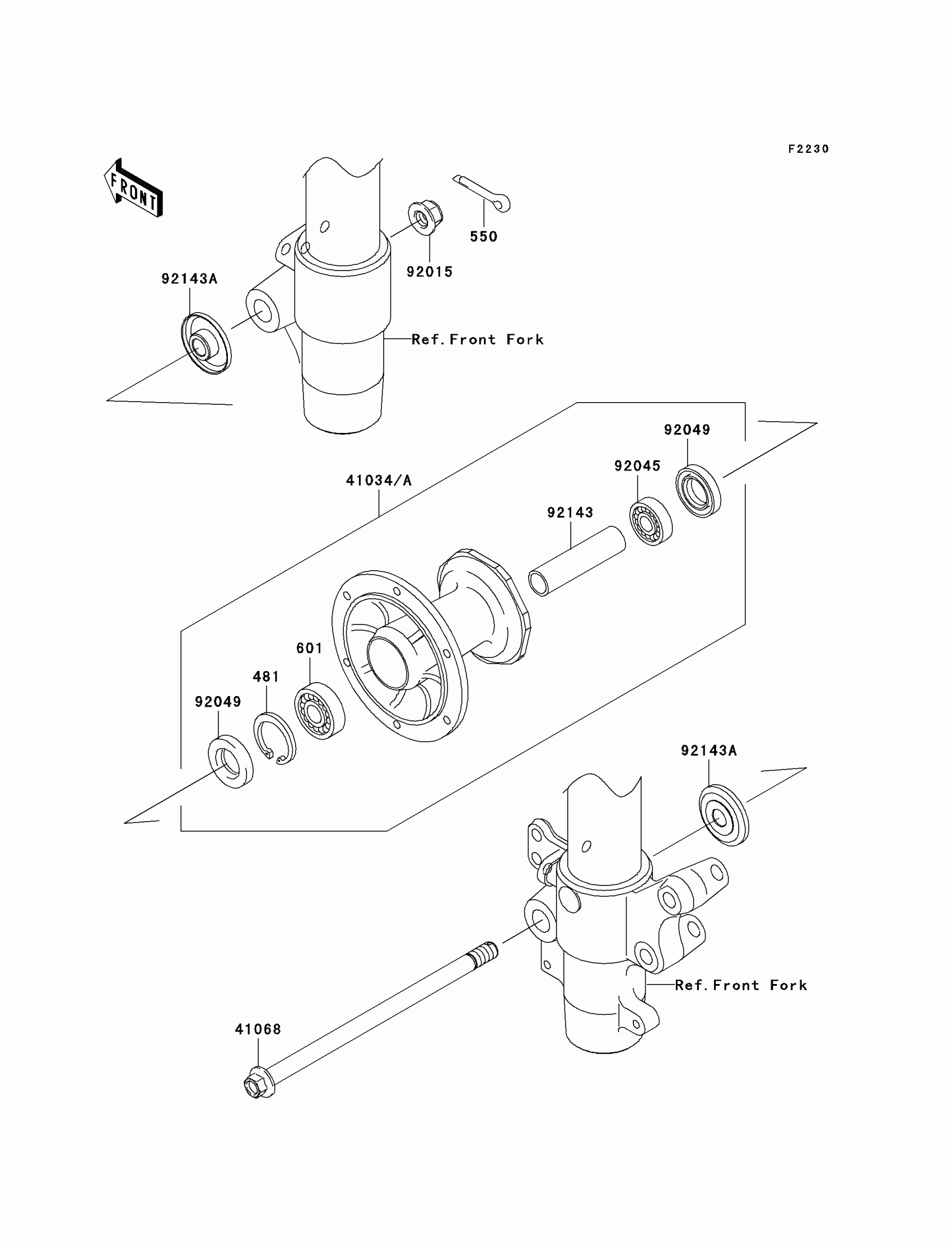

2009 Kawasaki KX™100 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

481

1

$2.37

In stock

550

PIN-COTTER,2.5X20

550AA2520

1

$1.22

In stock

601

1

$23.98

In stock

41034

1

$431.92

In stock

41068

AXLE,FR

41068-1333

1

$30.30

In stock

92015

1

$7.04

In stock

92045

1

$24.47

In stock

92049

SEAL-OIL,TC20376.5

92049-1257

1
Out of stock

92143

1

$7.69

In stock

92143A

COLLAR,FR AXLE,L=12

92143-1936

1

$14.49

In stock
← Front Fork Handlebar →
