2022 Kawasaki KX™450SR Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2022 Kawasaki KX™450SR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

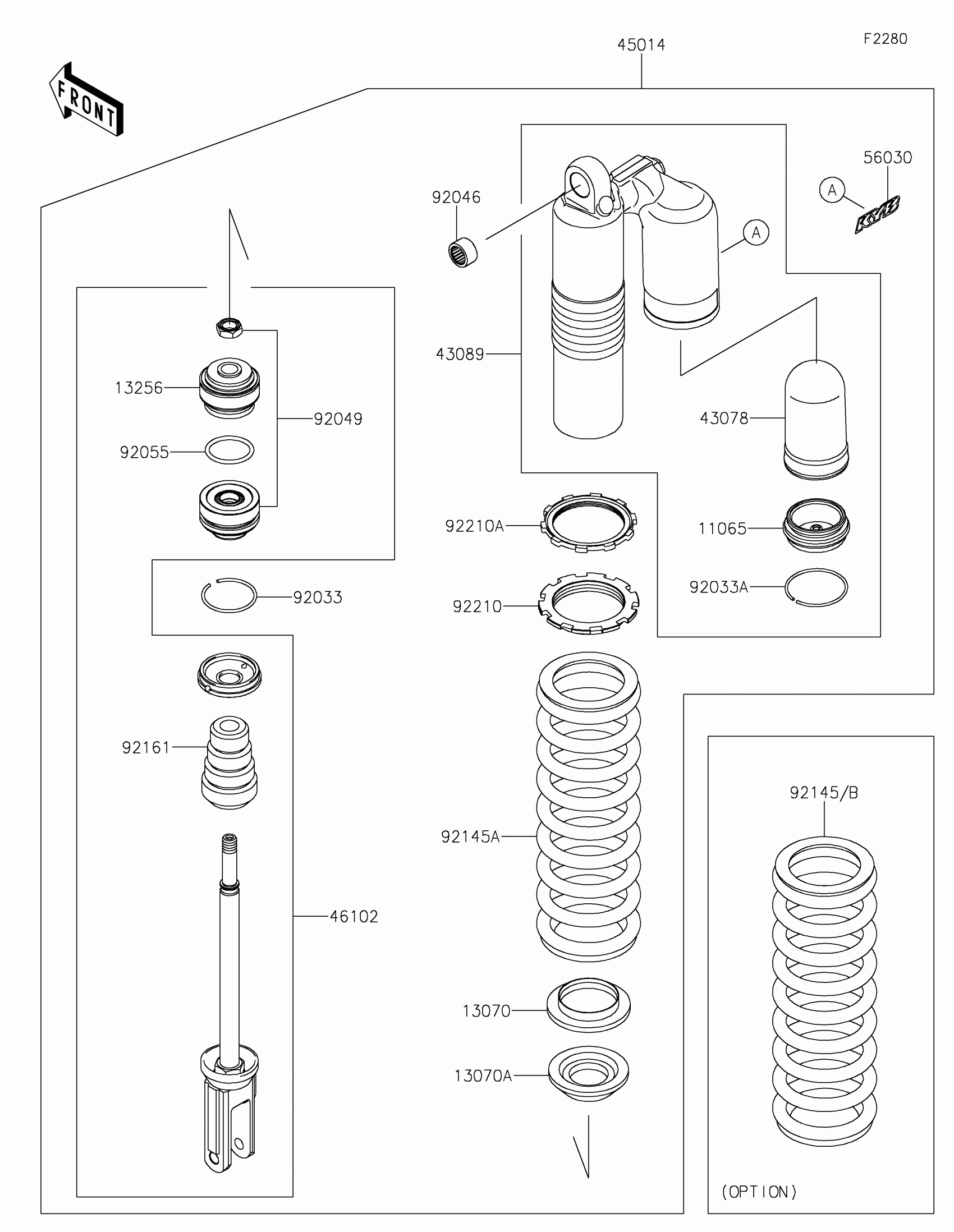

2022 Kawasaki KX™450SR Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,CYLINDER

11065-1419

1
Out of stock

13070

GUIDE,SPRING

13070-0095

1
Out of stock

13070A

GUIDE,SPRING

13070-0992

1
Out of stock

13256

PISTON,SHOCKABSORBER

13256-0006

1
Out of stock

43078

RESERVOIR,SHOCKABSORBER

43078-0611

1
Out of stock

43089

CYLINDER-SHOCKABSORBER

43089-0037

1
Out of stock

45014

SHOCKABSORBER

45014-0731

1
Out of stock

46102

ROD

46102-0671

1
Out of stock

56030

LABEL,KYB

56030-1771

1
Out of stock

92033

RING-SNAP

92033-0044

1
Out of stock

92033A

RING-SNAP

92033-0826

1
Out of stock

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

1
Out of stock

92049

SEAL-OIL

92049-0116

1
Out of stock

92055

RING-O

92055-0165

1
Out of stock

92145

SPRING,SHOCK,K=52N/MM,BLACK

92145-0638-10

1
Out of stock

92145A

SPRING,SHOCK,K=54N/MM,BLACK

92145-0716-10

1
Out of stock

92145B

SPRING,SHOCK,K=56N/MM,BLACK

92145-0762-10

1
Out of stock

92161

DAMPER,SHOCKABSORBER

92161-2348

1
Out of stock

92210

NUT,SPRING ADJUST

92210-0494

1
Out of stock

92210A

NUT,SPRING ADJUST LOCK

92210-0495

1
Out of stock
