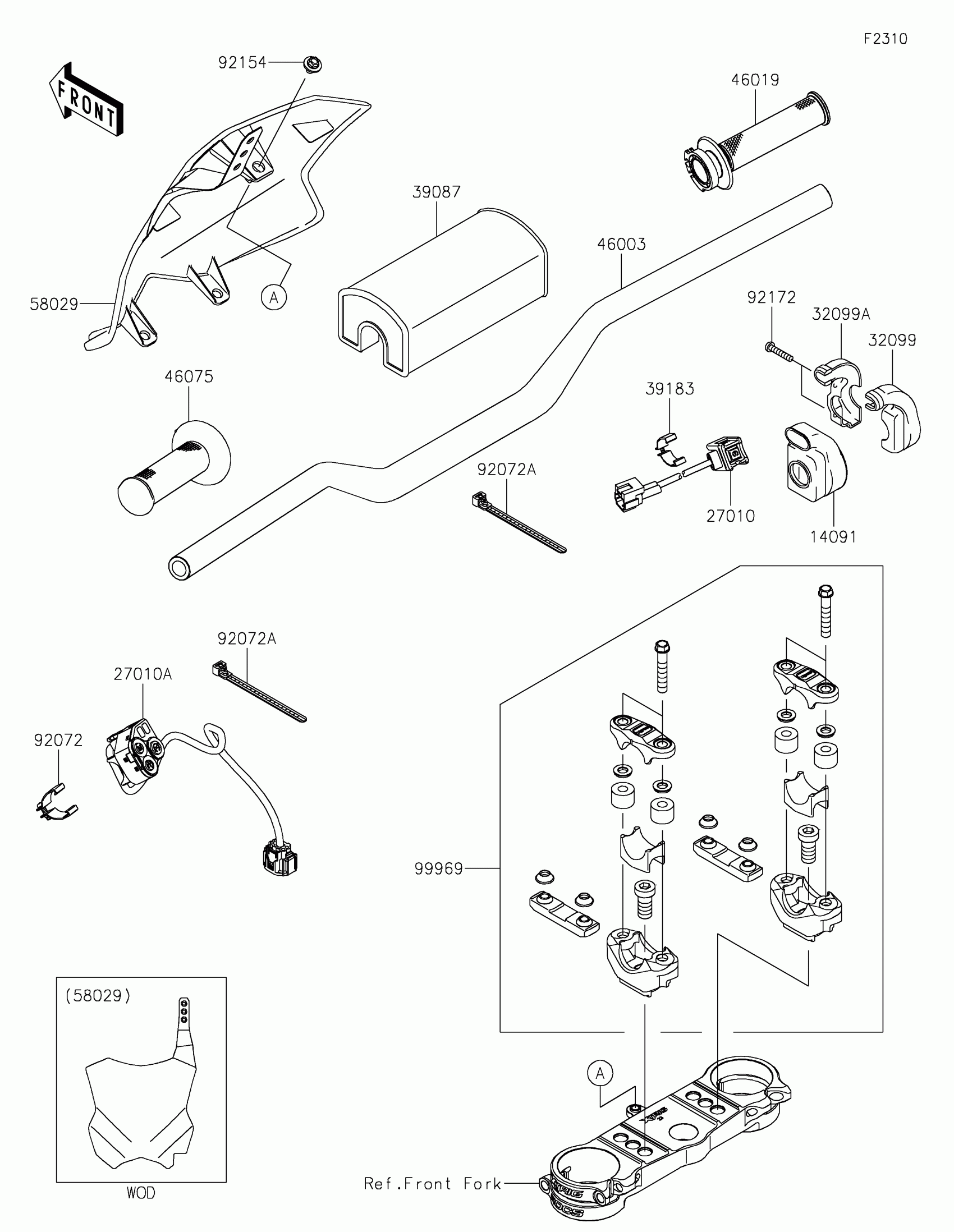

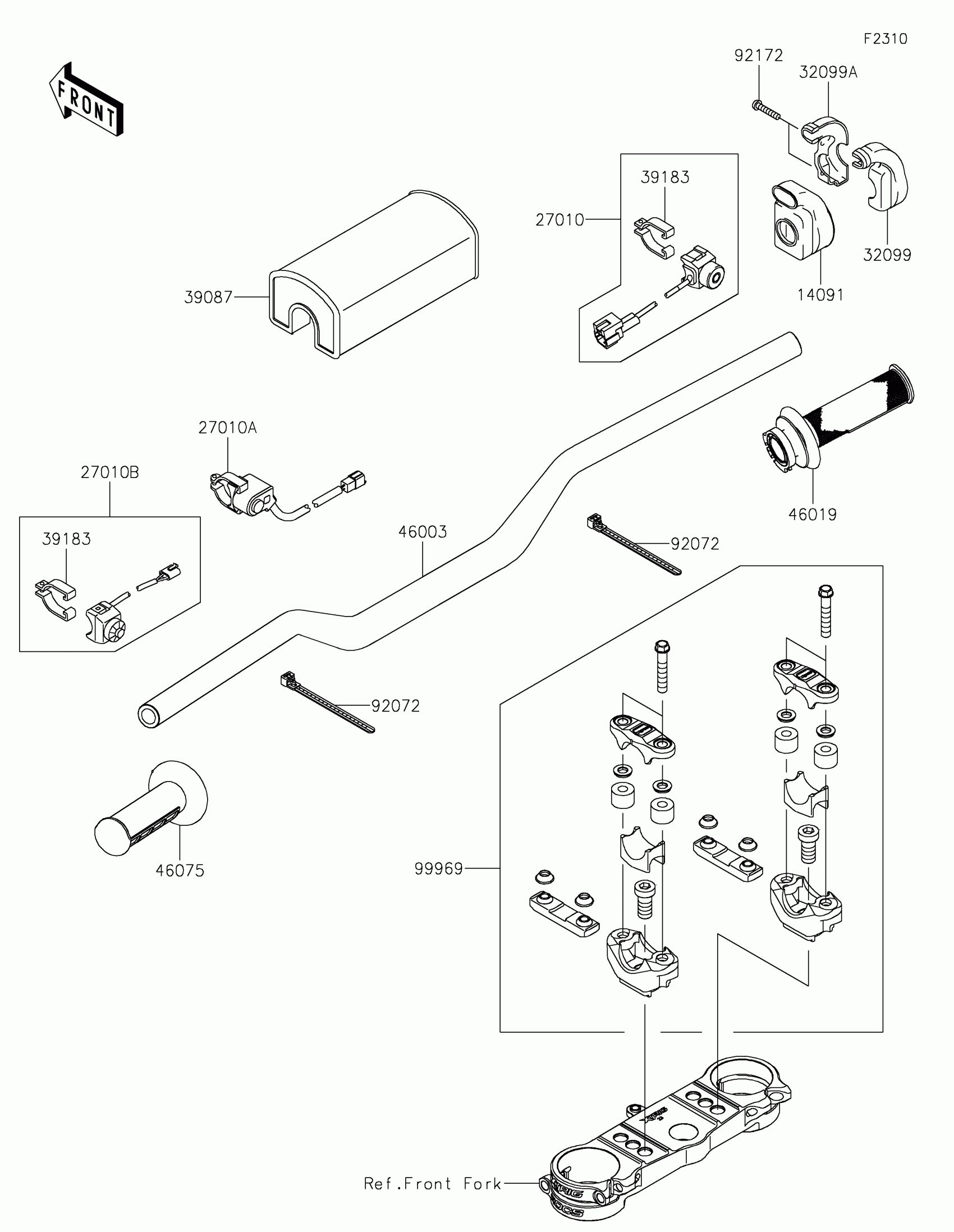

Kawasaki KX™450SR Handlebar Diagram

Description

Price

14091

COVER,THROTTLE CASE

14091-0182

$7.67

27010

SWITCH,STARTER

27010-0907

$38.45

27010A

SWITCH,LAUNCH MODE

27010-0908

$125.41

27010B

SWITCH,ENGINE STOP

27010-0909

$56.20

32099

CASE,THROTTLE,RR

32099-0002

$30.89

32099A

CASE,THROTTLE,FR

32099-0003

$30.89

39087

PAD-HANDLE,RENTHAL,P330

39087-0017

$33.14

39183

BAND-ASSY,SWITCH

39183-1059

$9.89

46003

HANDLE,RENTHAL,FATBAR,839

46003-0780

$114.90

46019

GRIP-ASSY,THROTTLE

46019-0041

$26.45

46075

GRIP,LH

46075-0072

$11.10

92072

BAND,L=140

92072-1293

$5.26

92172

SCREW,5X20

92172-0069

$2.30

99969

HANDLE HOLDER,XTRIG

99969-3881

$195.04
