Description

Price

11065

CAP,AXLE

11065-1298

$7.46

41034

DRUM-ASSY,REAR BRAKE

41034-0597

$449.94

41068

AXLE,RR,L=255

41068-0597

$96.15

42041

SPROCKET-HUB,50T,AL,RENTHAL

42041-0188

$104.77

42041A

SPROCKET-HUB,49T,STEEL

42041-1384

$75.39

42041B

SPROCKET-HUB,50T,STEEL

42041-1408

$72.32

42041C

SPROCKET-HUB,51T,STEEL

42041-1428

$72.32

42041D

SPROCKET-HUB,49T,AL

42041-1449

$141.34

42041E

SPROCKET-HUB,51T,AL

42041-1451

$131.31

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,69052RS

92045-1446

$34.07

92049

SEAL-OIL

92049-1614

$13.97

92057

CHAIN,DRIVE,DID520ERT3X114L

92057-0836

$161.95

92058

JOINT-CHAIN,DRIVE

92058-0075

$13.03

92150

BOLT,SOCKET,8X28

92150-1978

$6.55

92152

COLLAR,25.4X31X106.5

92152-2506

$42.23

92152A

COLLAR,25.05X44X17

92152-2531

$29.61

92200

WASHER,22.5X35X2.3

92200-1623

$1.17

92210

NUT,FLANGED,LOCK,8MM

92210-0493

$5.80

92210A

NUT,SELF LOCK,22MM

92210-0939

$17.56

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

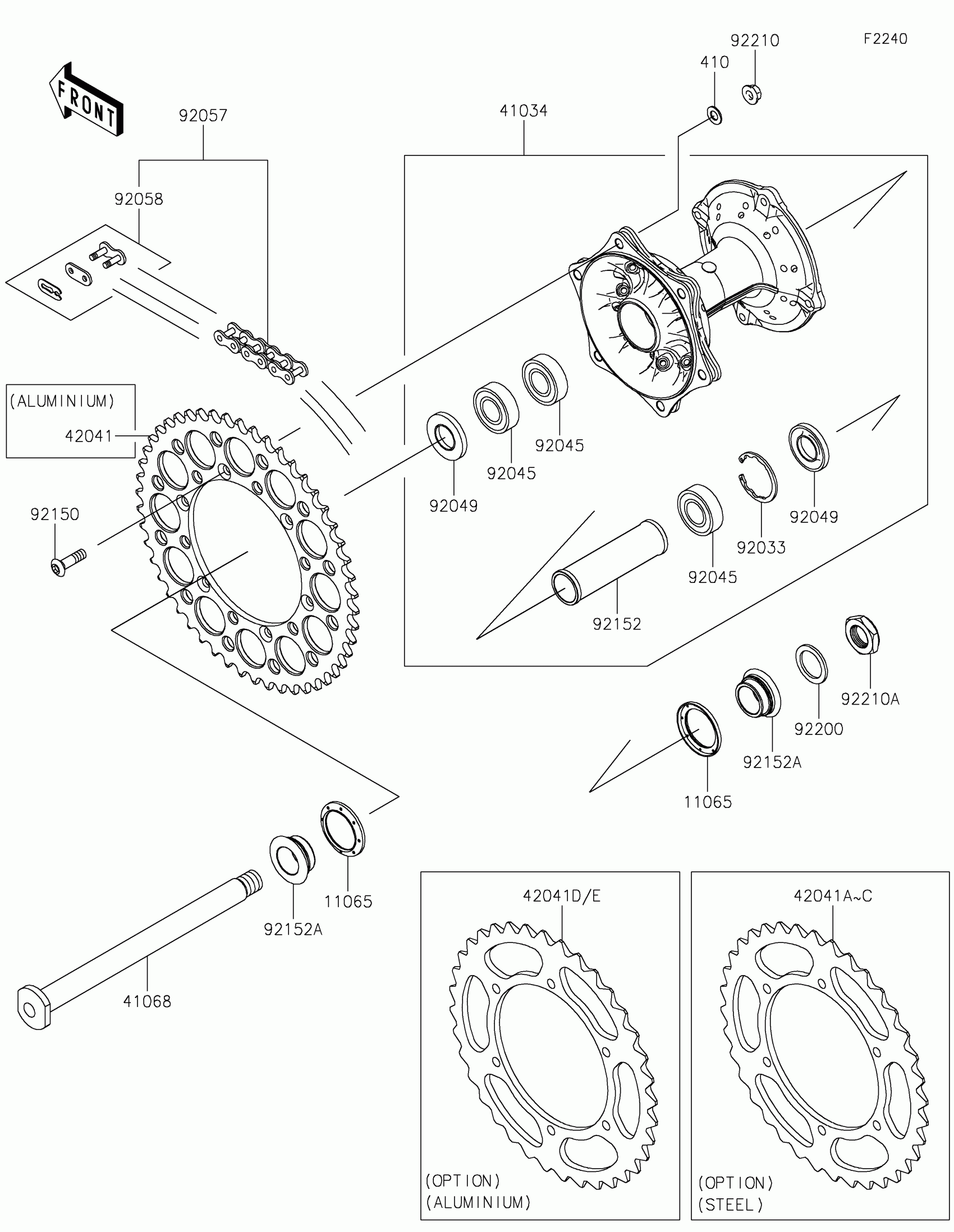

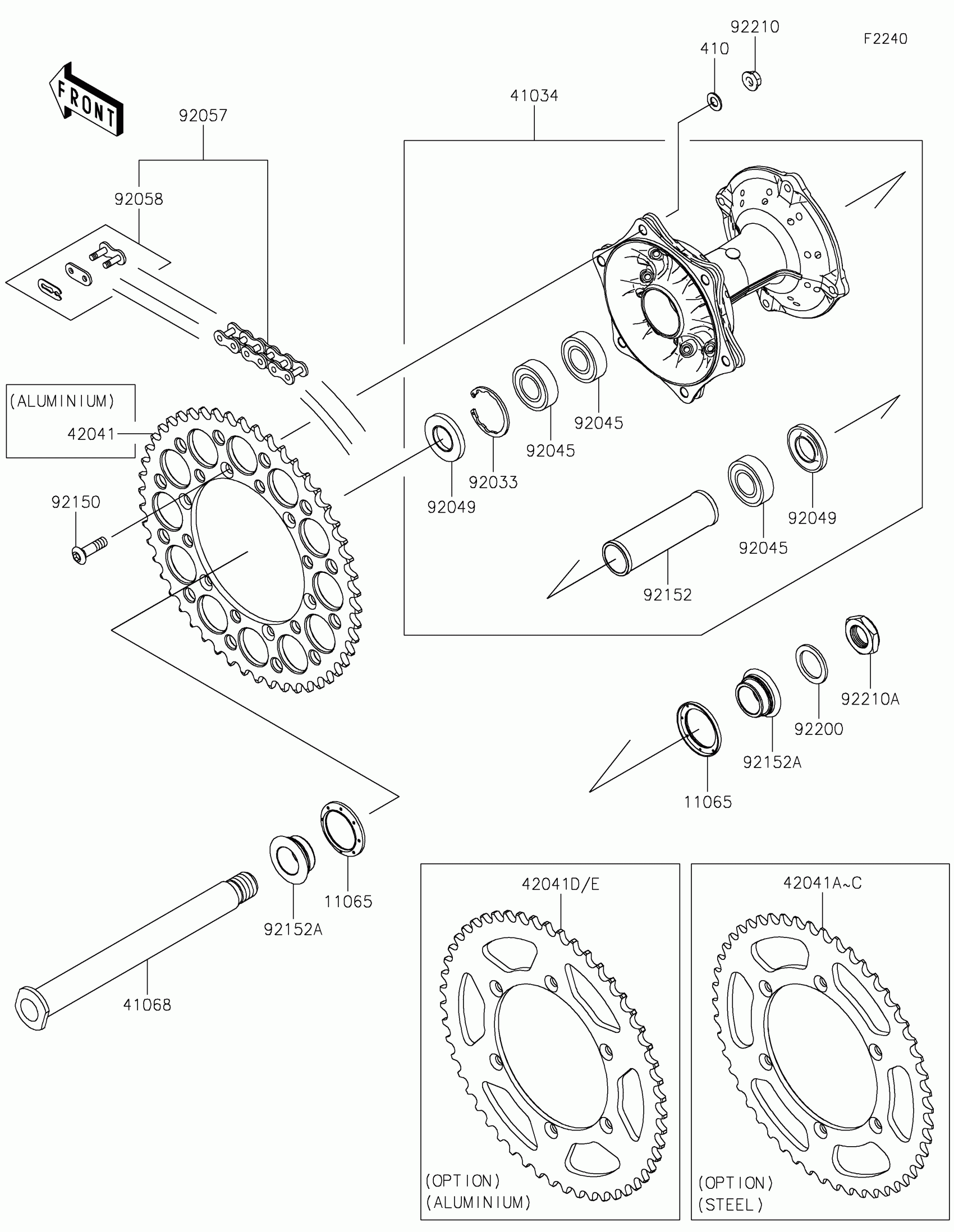

Kawasaki KX™450SR Rear Hub Diagram
