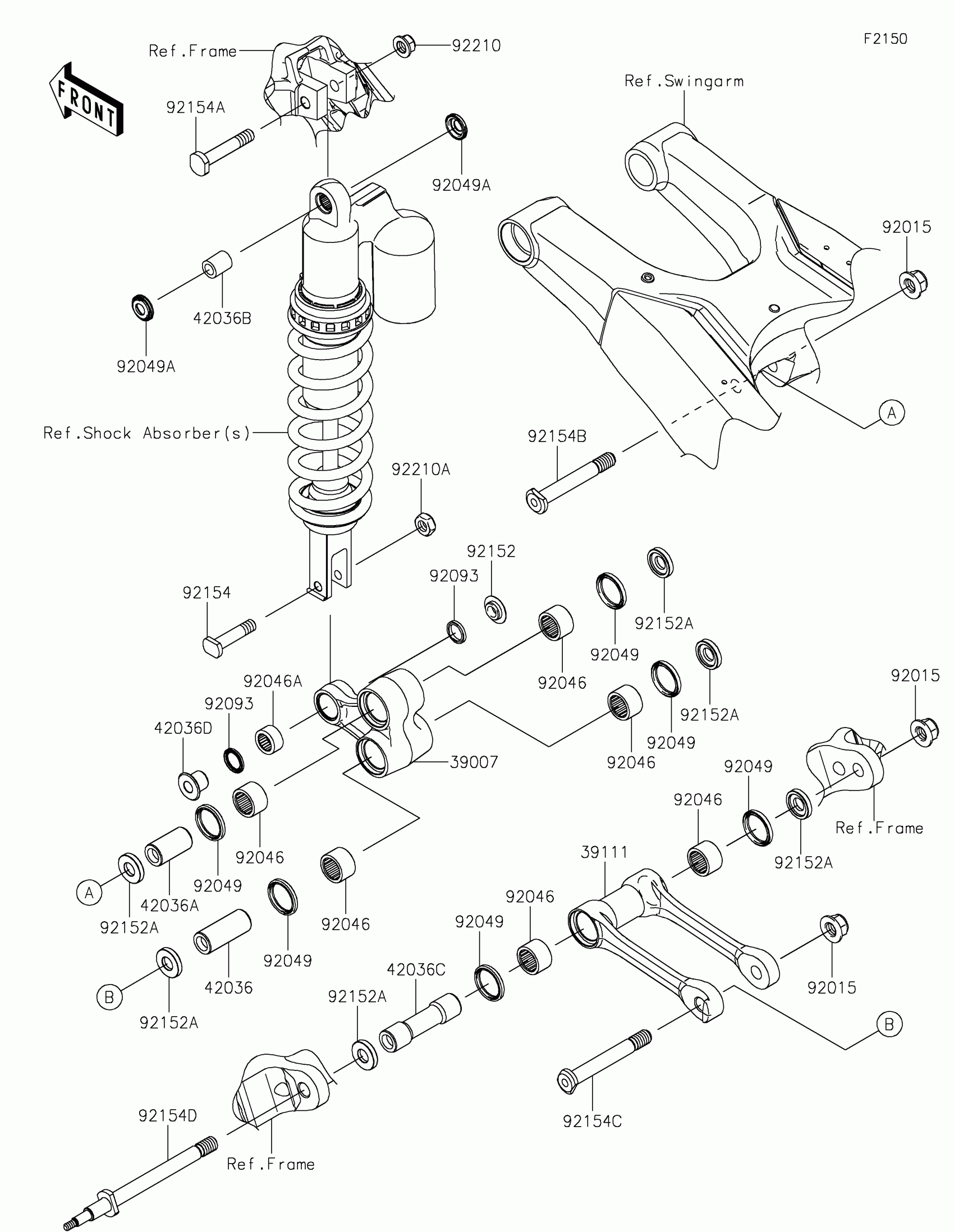

Find the part on the Rear Suspension diagram for your 2026 Kawasaki KX™450SR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KX™450SR Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP

39007-0510

1
Out of stock

39111

ROD-TIE

39111-0403

1
Out of stock

42036

SLEEVE,SUSPENSION ARM,L=49

42036-0021

1
Out of stock

42036A

SLEEVE,SUSPENSION ARM,L=37

42036-0022

1
Out of stock

42036B

SLEEVE,10X16X19.3

42036-0030

1
Out of stock

42036C

SLEEVE,12X20X87.8

42036-0898

1
Out of stock

42036D

SLEEVE

42036-1351

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92046

BEARING-NEEDLE,F-2016

92046-1151

1
Out of stock

92046A

BEARING-NEEDLE,16BM2212

92046-1192

1
Out of stock

92049

SEAL-OIL,SDO26X32X4

92049-0063

1
Out of stock

92049A

SEAL-OIL

92049-0069

1
Out of stock

92093

SEAL

92093-1436

1
Out of stock

92152

COLLAR

92152-1139

1
Out of stock

92152A

COLLAR,12X26X4.8

92152-2454

1
Out of stock

92154

BOLT,10X45

92154-0512

1
Out of stock

92154A

BOLT,10X58

92154-0513

1
Out of stock

92154B

BOLT,12X86.5

92154-2959

1
Out of stock

92154C

BOLT,12X92.5

92154-2960

1
Out of stock

92154D

BOLT,TIE ROD

92154-7101

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

92210A

NUT,LOCK,10MM

92210-1184

1
Out of stock
