2020 Kawasaki KX™450 Oil Pump Diagram

← All diagrams

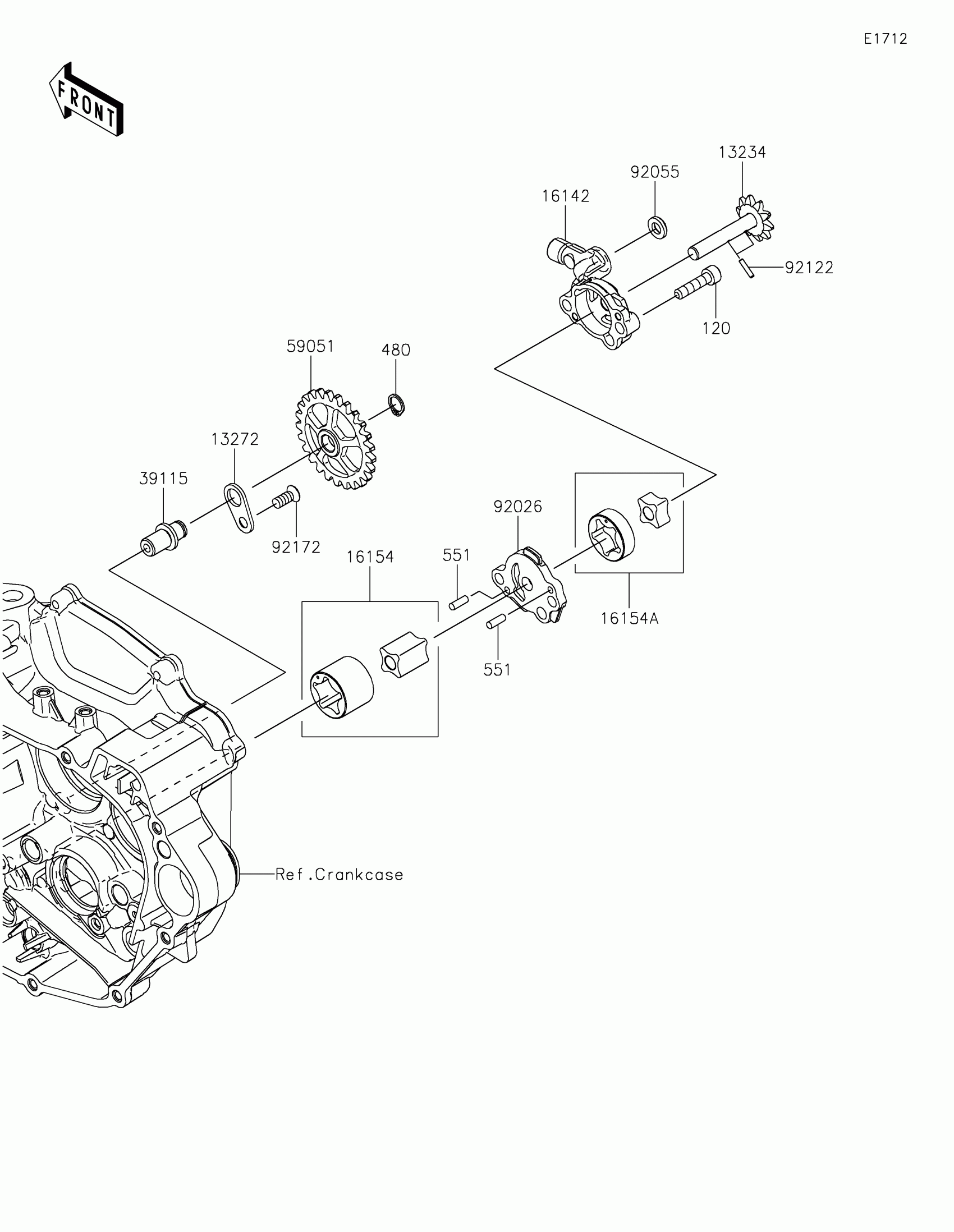

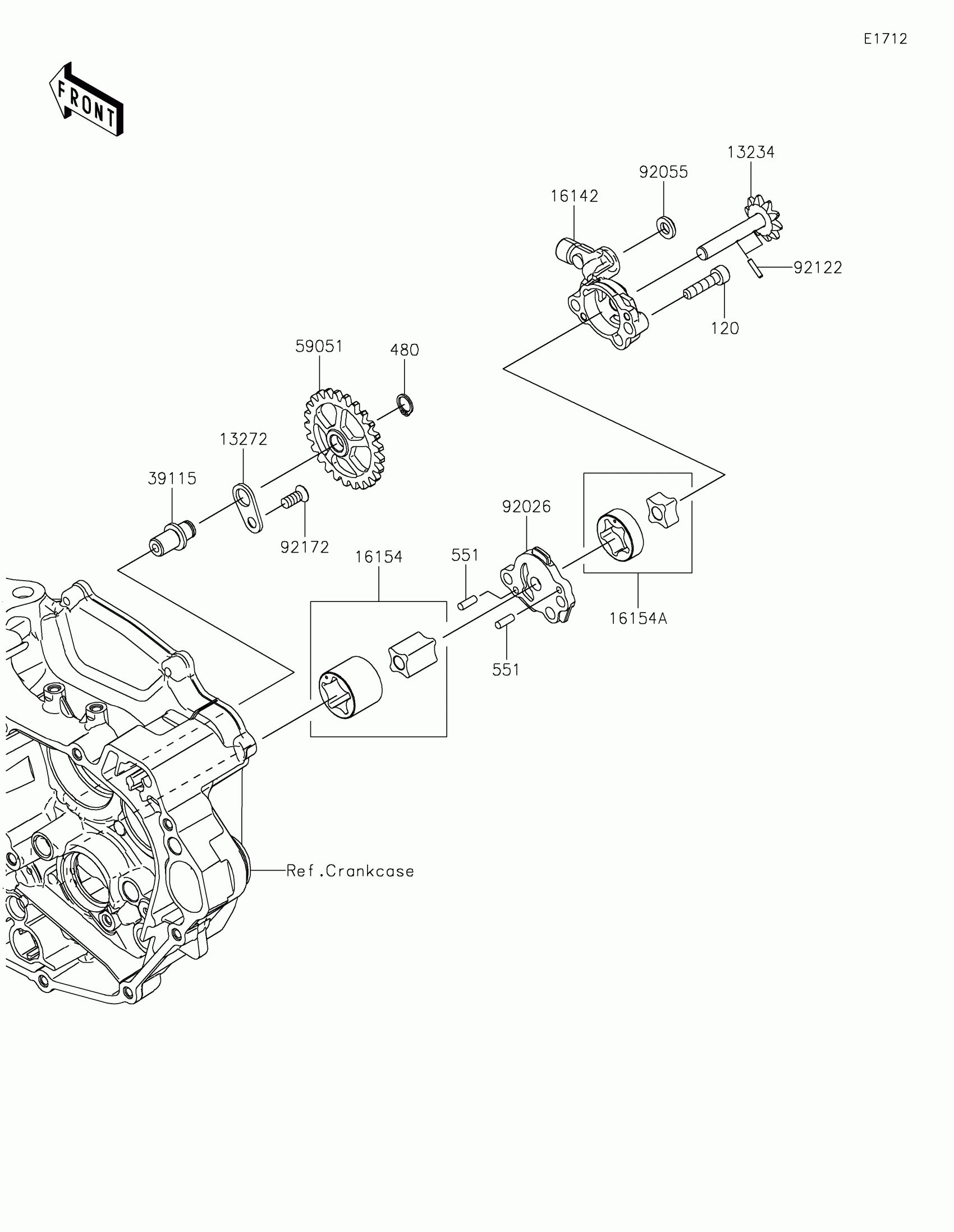

Find the part on the Oil Pump diagram for your 2020 Kawasaki KX™450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KX™450 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13234

SHAFT-COMP,10T

13234-0604

1

$108.77

In stock

13272

PLATE

13272-1944

1

$4.98

In stock

16142

COVER-PUMP,OIL

16142-5003

1

$81.79

In stock

16154

ROTOR-PUMP,SCAVENGE

16154-0726

1

$40.60

In stock

16154A

ROTOR-PUMP,FEED

16154-0729

1

$40.60

In stock

39115

SHAFT-IDLER

39115-0024

1

$30.86

In stock

59051

1

$80.26

In stock

92026

SPACER

92026-0804

1
Out of stock

92055

RING-O,OD=13

92055-074

1

$6.82

In stock

92122

ROLLER,2.5X11.8

92122-0021

1

$2.15

In stock

92172

SCREW,6X14

92172-0087

1

$2.00

In stock

120

BOLT-SOCKET,6X25

120CA0625

1
Out of stock

480

1

$0.66

In stock

551

PIN-DOWEL

551A0412

1

$1.39

In stock
