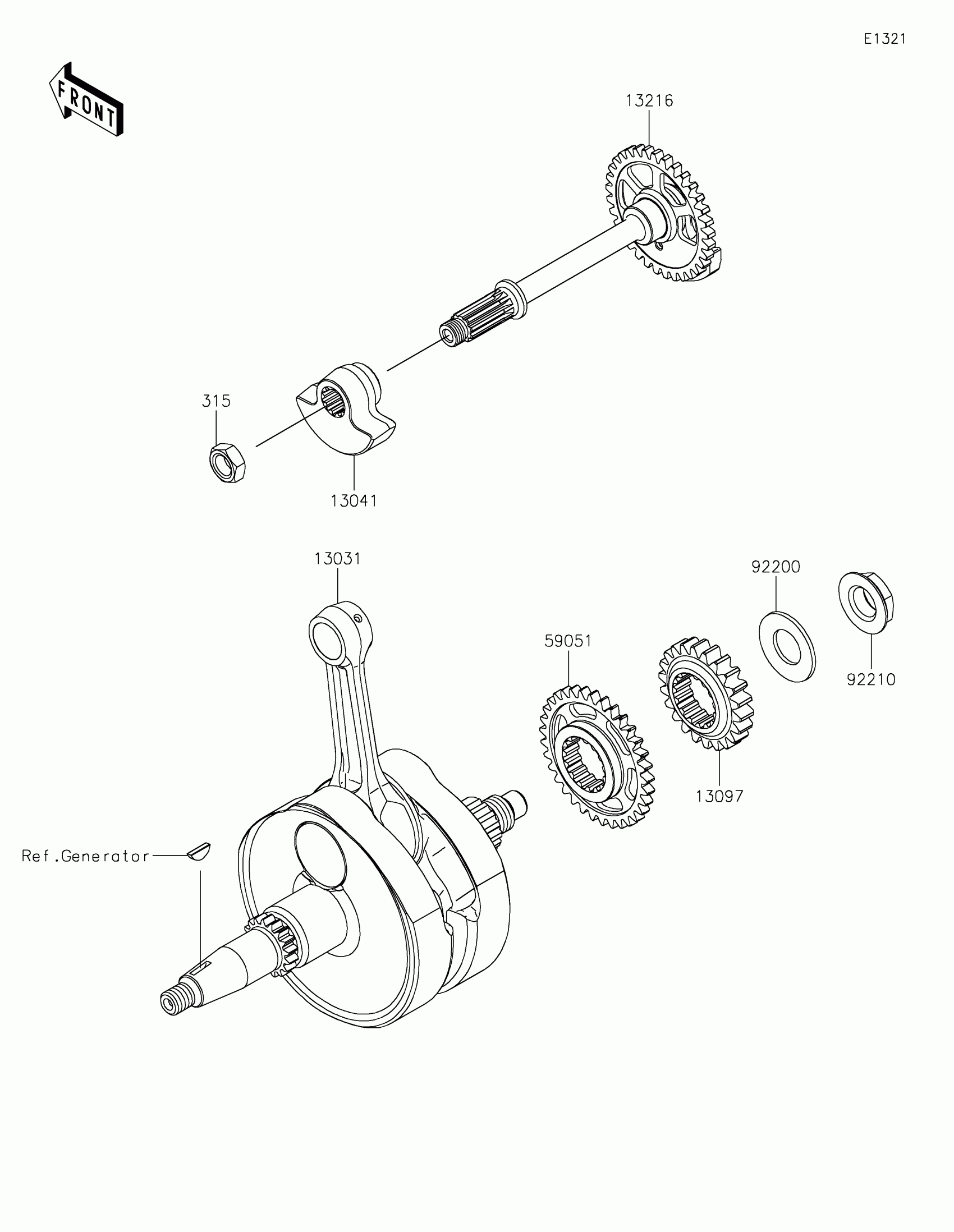

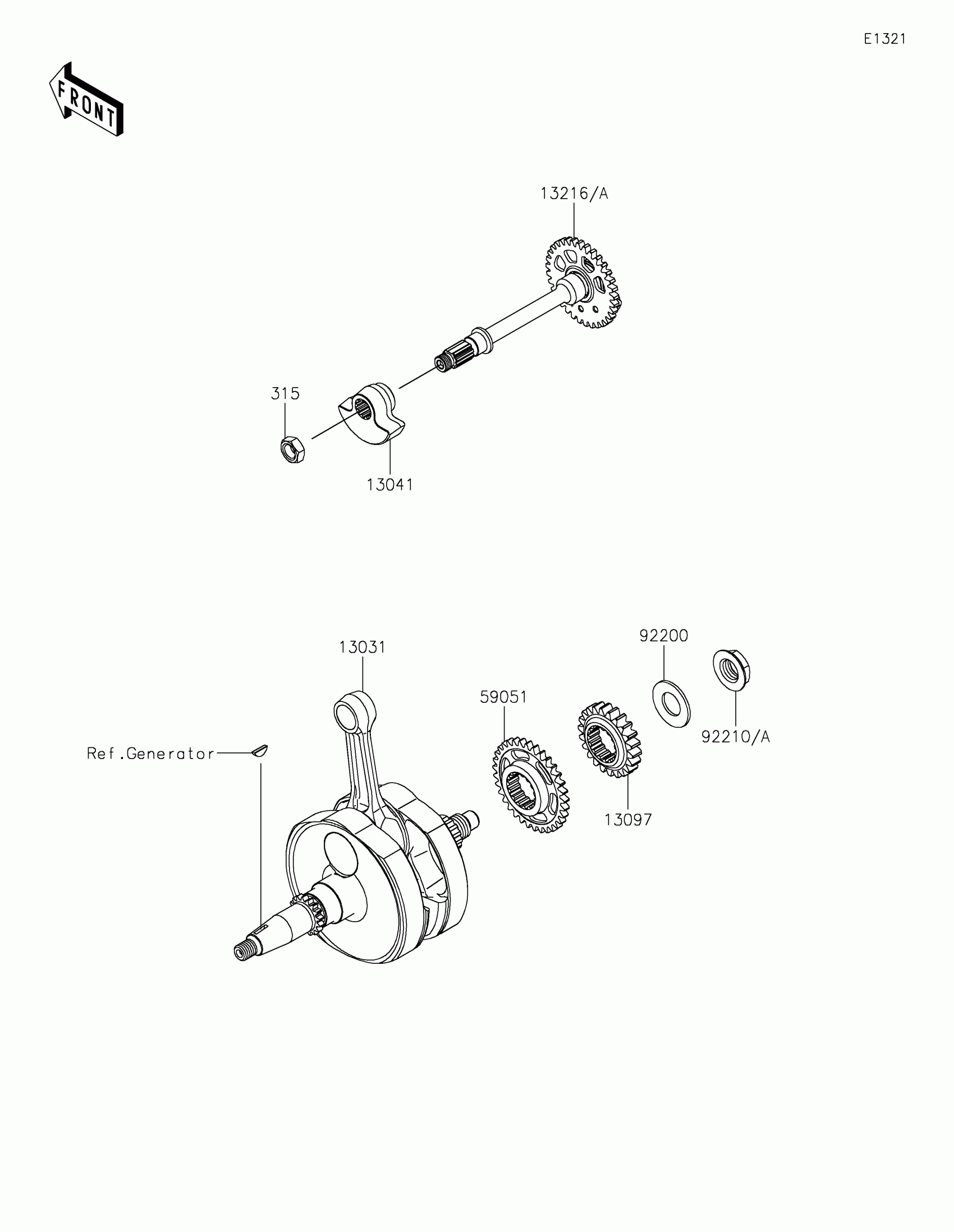

Kawasaki KX™450 Crankshaft Diagram

#

Description
Price

13031

CRANKSHAFT-COMP

13031-0897

$522.23

13041

BALANCER,LH

13041-0564

$84.31

13097

GEAR-PRIMARY SPUR,22T

13097-0600

$67.96

13216A

GEAR-COMP,BALANCER

13216-0904

$357.20

59051

GEAR-SPUR,BALANCER DRIVE,33T

59051-0806

$65.70

92200

WASHER

92200-1505

$3.81

92210A

NUT,LEFT HANDED,18MM

92210-1755

$19.64

315

NUT-HEX-FINE,12MM

315BA1200

$1.08
