2020 Kawasaki KX™450 Cylinder Head Diagram

← All diagrams

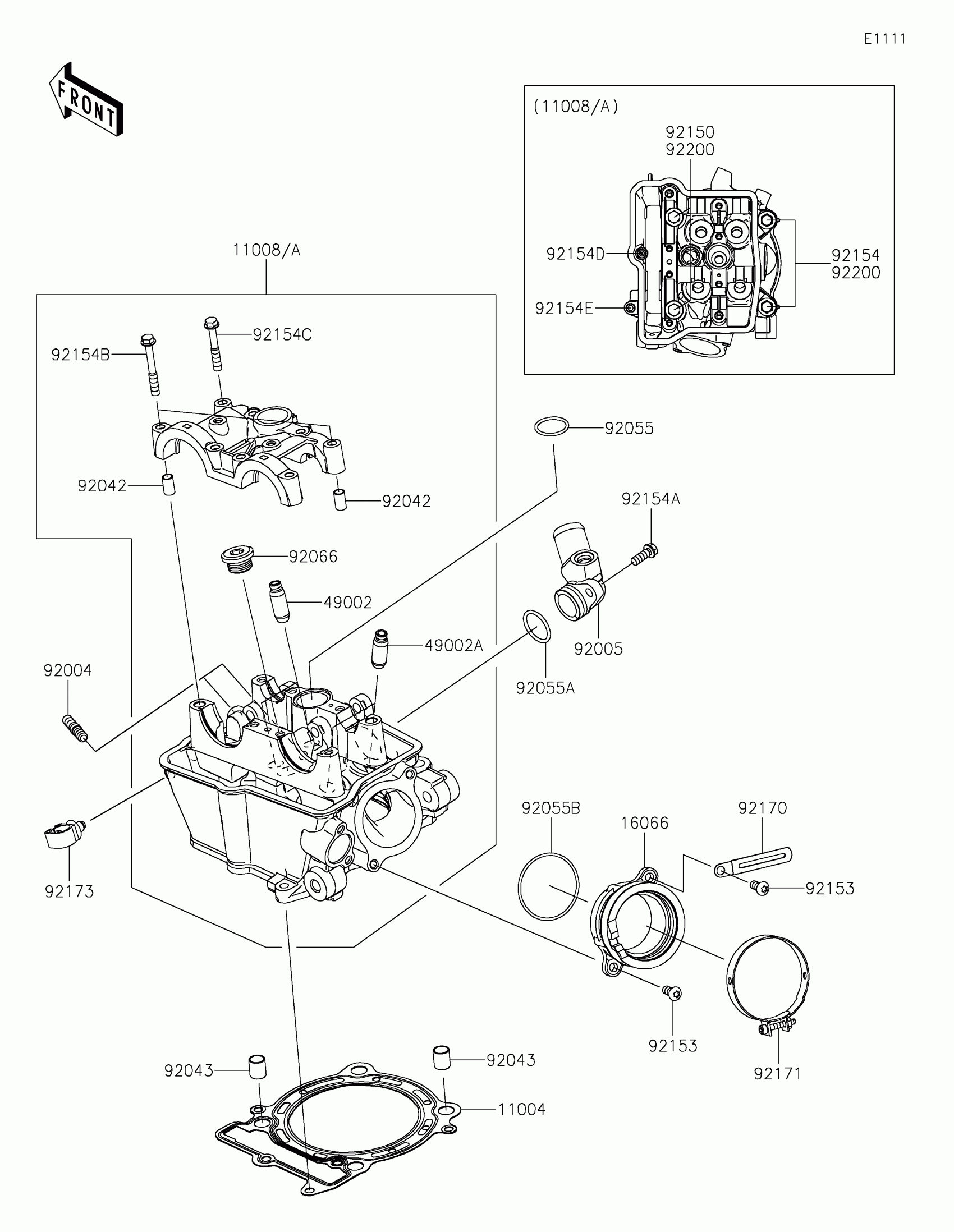

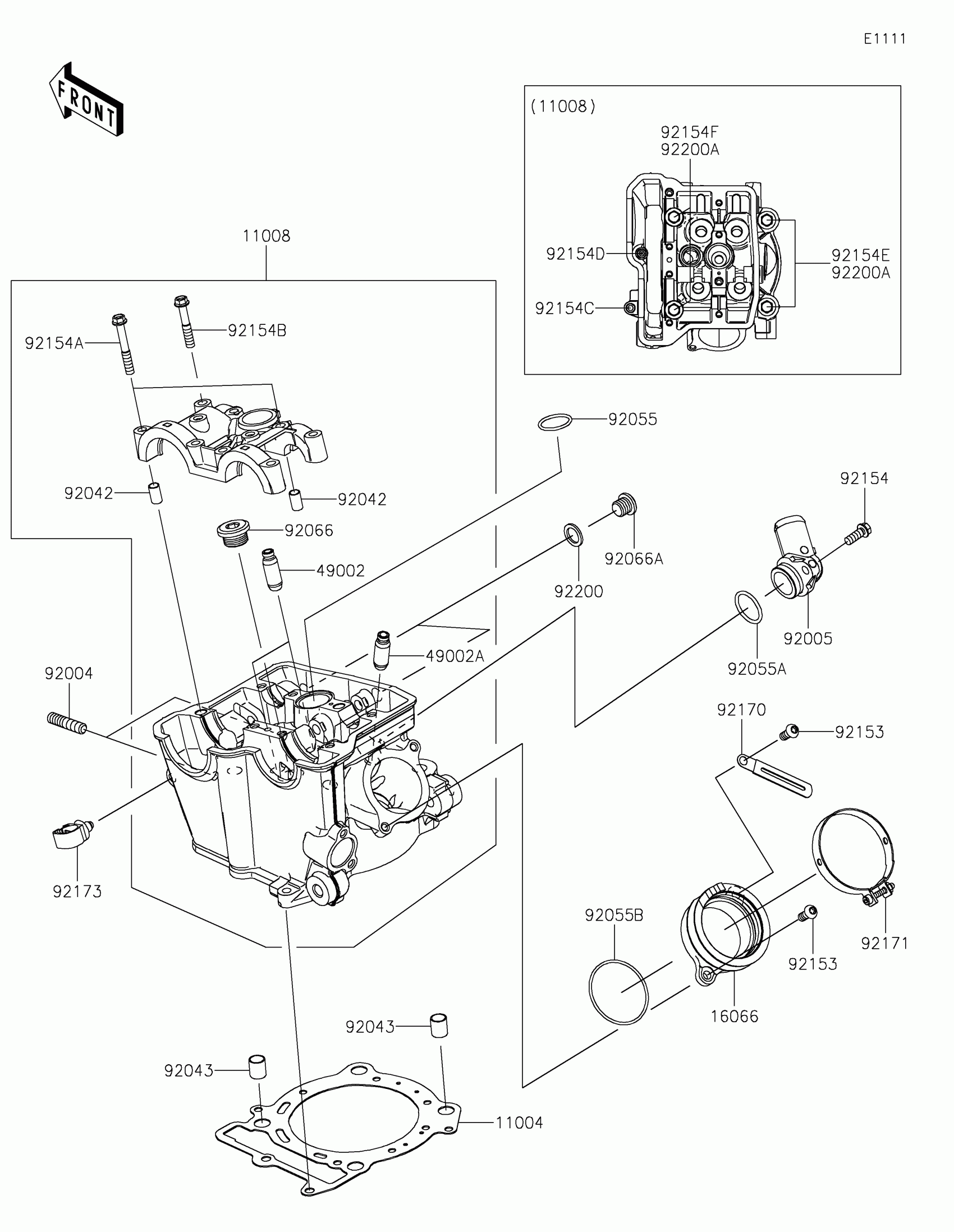

Find the part on the Cylinder Head diagram for your 2020 Kawasaki KX™450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KX™450 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0777

1

$62.60

In stock

11008A

HEAD-COMP-CYLINDER

11008-0975

1

$787.95

In stock

16066

1

$15.31

In stock

49002

GUIDE-VALVE

49002-0020

1

$33.35

In stock

49002A

GUIDE-VALVE

49002-0042

1

$37.17

In stock

92004

STUD,8X22

92004-0025

1
Out of stock

92005

FITTING

92005-0896

1

$72.86

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

RING-O,23.5X2.0

92055-0046

1
Out of stock

92055A

RING-O,22.1X2.4

92055-1081

1

$3.72

In stock

92055B

RING-O,47X1.9

92055-1600

1

$7.30

In stock

92066

PLUG,18X10

92066-0832

1

$12.31

In stock

92150

BOLT,L=148

92150-1934

1

$13.96

In stock

92153

BOLT,TORX,6X14

92153-0406

1
Out of stock

92154

BOLT,FLANGED,10X127

92154-2455

1

$21.31

In stock

92154A

BOLT,FLANGED,6X16

92154-2965

1

$0.88

In stock

92154B

BOLT,FLANGED,6X42

92154-2979

1

$1.10

In stock

92154C

BOLT,FLANGED,6X35

92154-2983

1

$1.10

In stock

92154D

BOLT,SOCKET,6X70

92154-3867

1

$1.66

In stock

92154E

BOLT-SOCKET,6X25

92154-3960

1

$1.10

In stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92171

CLAMP

92171-1552

1

$15.49

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92200

WASHER,10.2X18.4X1.8

92200-1691

1
Out of stock
