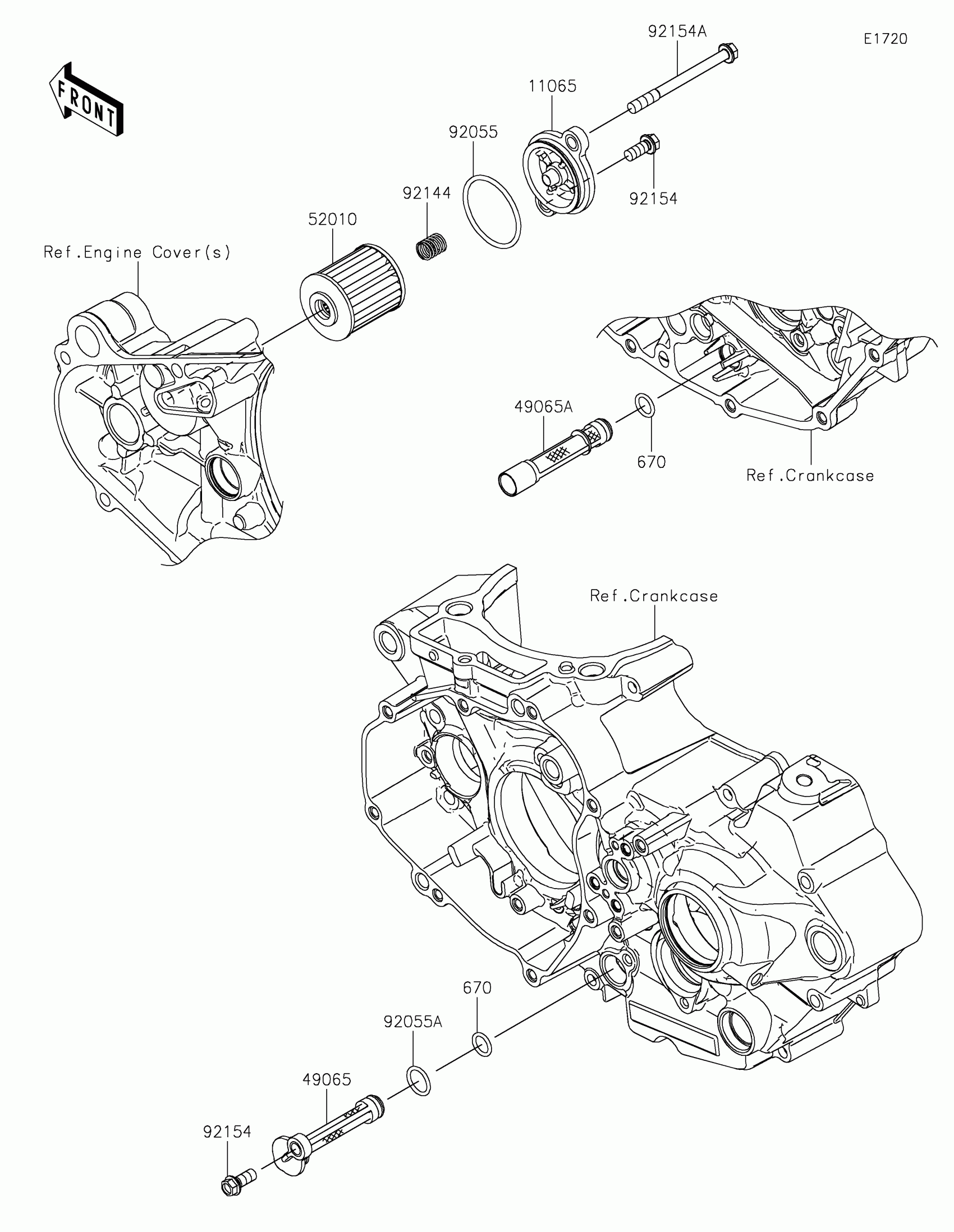

2020 Kawasaki KX™450 Oil Filter Diagram

← All diagrams

Find the part on the Oil Filter diagram for your 2020 Kawasaki KX™450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

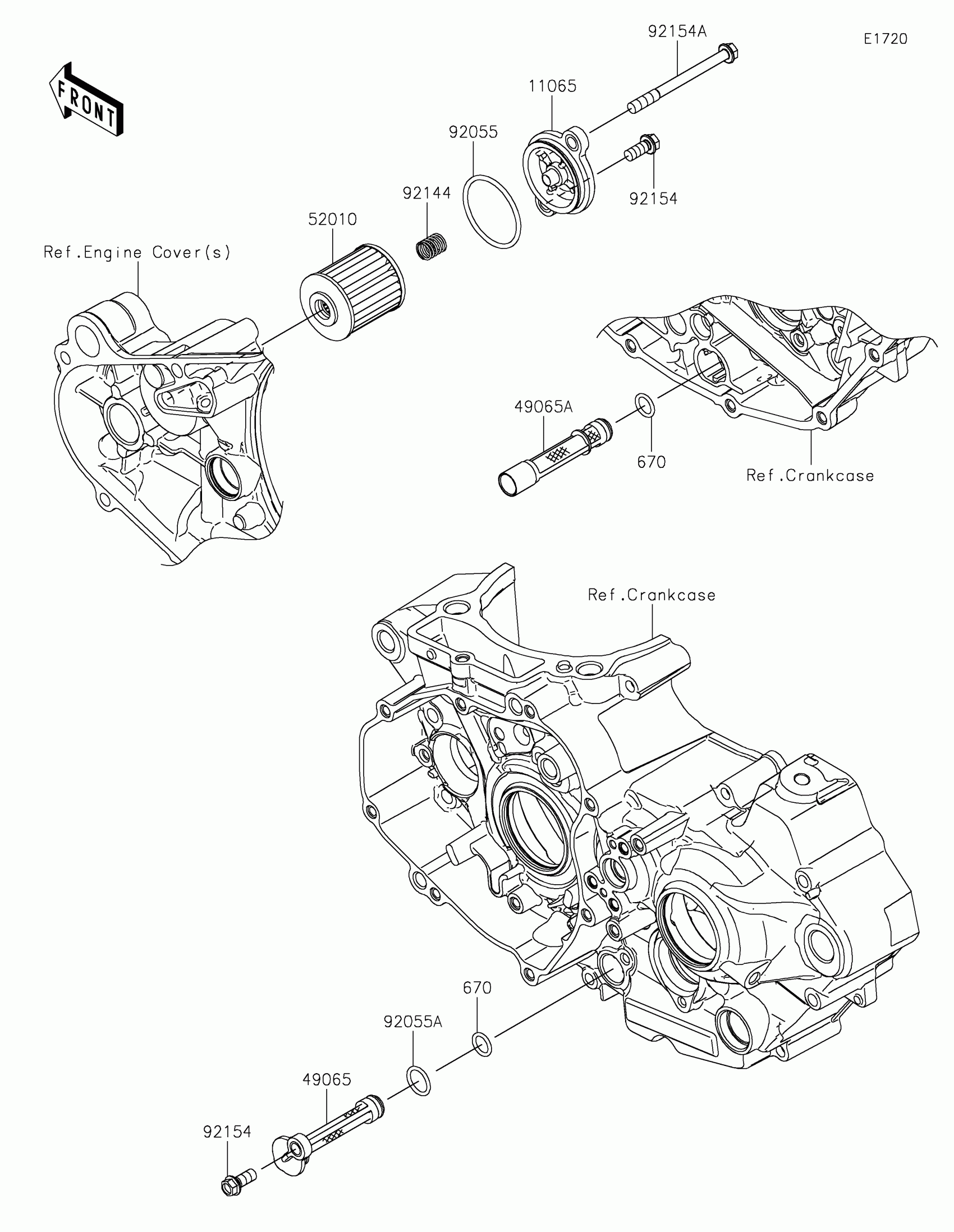

2020 Kawasaki KX™450 Oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-1280

1

$21.88

In stock

49065

FILTER-OIL

49065-0040

1

$30.10

In stock

49065A

FILTER-OIL

49065-0043

1

$13.35

In stock

52010

ELEMENT-OIL FILTER

52010-0001

1

$9.54

In stock

92055

RING-O,37.2X2.4

92055-0839

1

$3.12

In stock

92055A

RING-O,13.0X1.9

92055-1011

1

$6.06

In stock

92144

SPRING

92144-1761

1

$3.69

In stock

92154

BOLT,FLANGED,6X14

92154-2964

1

$0.69

In stock

92154A

BOLT,FLANGED,6X70

92154-2981

1

$1.27

In stock

670

O RING,10MM

670D1510

1

$3.72

In stock
