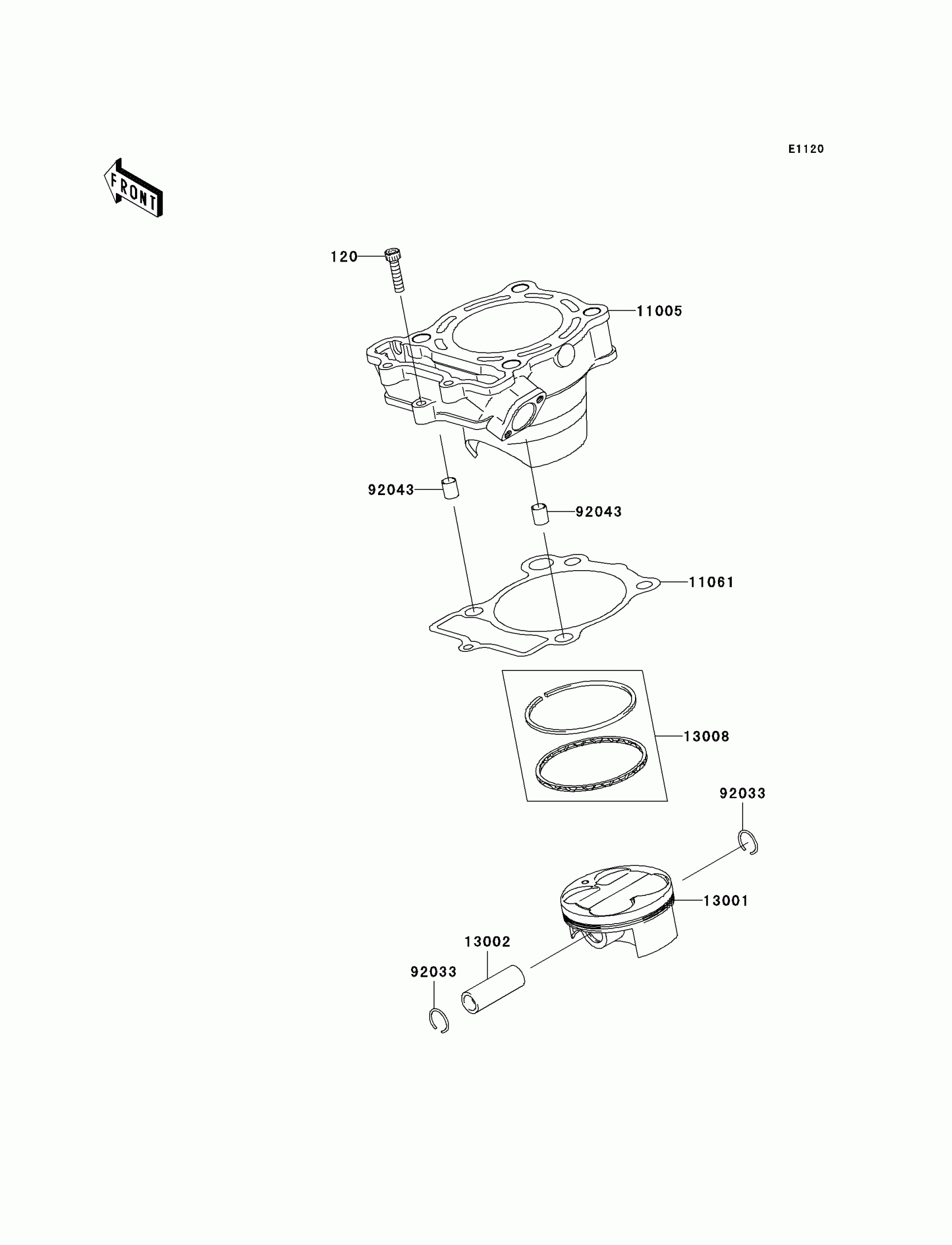

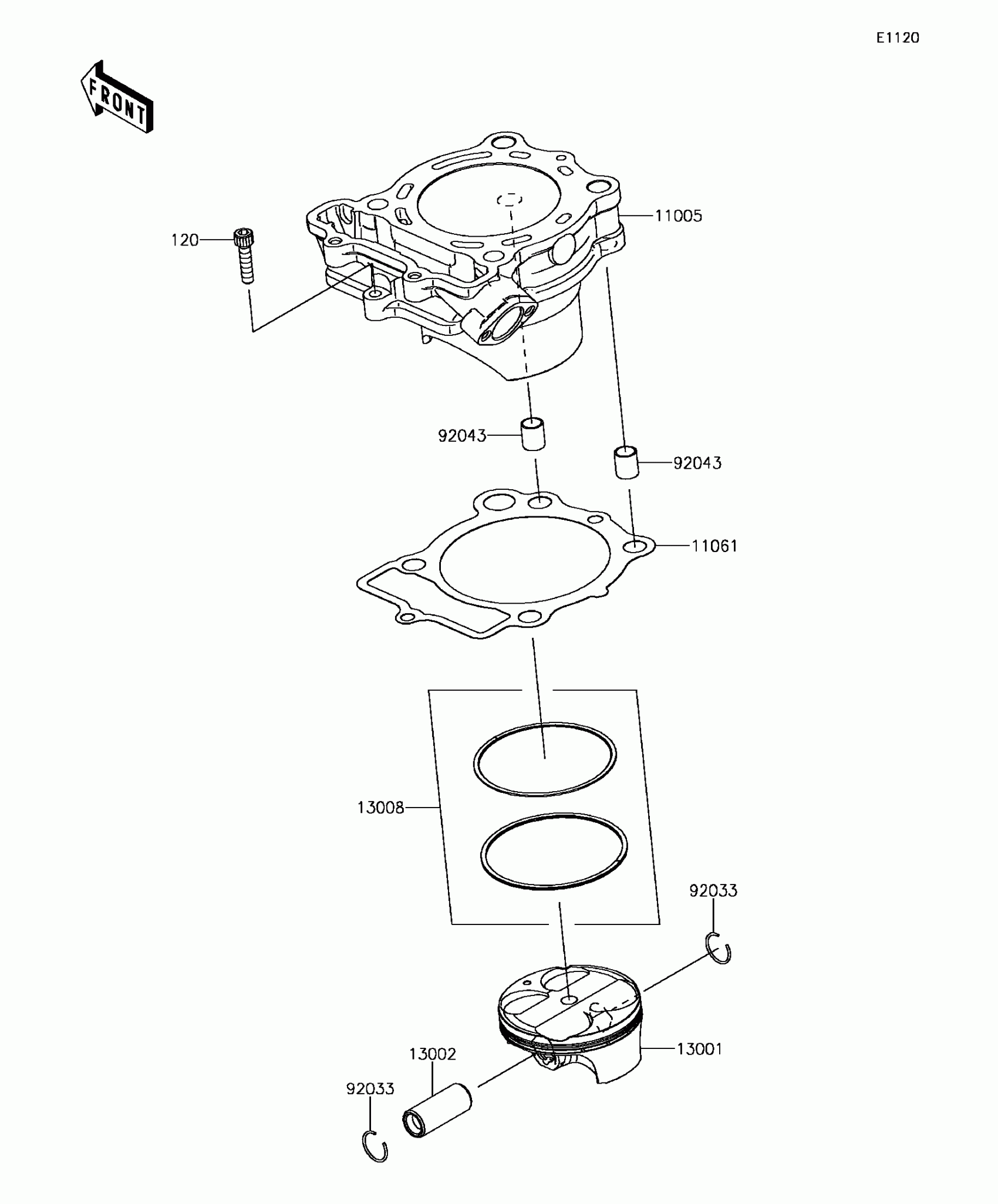

Kawasaki KX™250F Cylinder/Piston(s) Diagram

#

Description
Price

120

BOLT-SOCKET,6X25

120P0625

Unavailable

11005

CYLINDER-ENGINE

11005-0069

$508.02

11061

GASKET,CYLINDER BASE

11061-0025

$14.78

13001

PISTON-ENGINE

13001-0088

$184.00

13002

PIN-PISTON

13002-0018

$36.26

13008

RING-SET-PISTON

13008-0028

$42.40

92033

RING-SNAP,PISTON PIN

92033-1161

$2.97

92043

PIN,10.1X12X14

92043-4009

$4.67
