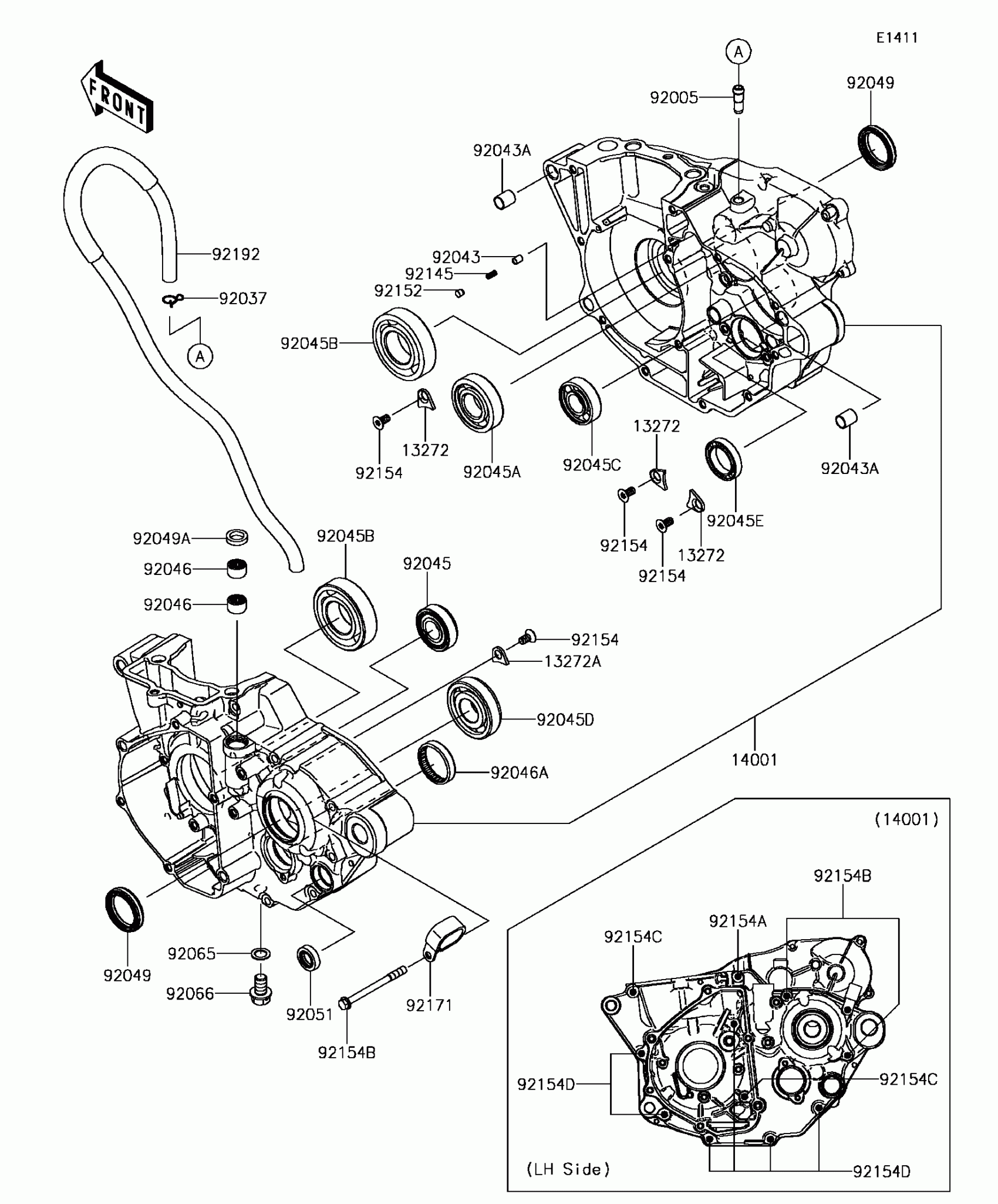

Kawasaki KX™250F Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X8

132G0608

Unavailable

132A

BOLT-FLANGED-SMALL,6X40

132G0640

Unavailable

132B

BOLT-FLANGED-SMALL,6X60

132G0660

Unavailable

132C

BOLT-FLANGED-SMALL,6X65

132G0665

Unavailable

132D

BOLT-FLANGED-SMALL,6X70

132G0670

Unavailable

225

SCREW-PAN-WSP-CROS,5X10

225D0510

$1.22

12022

VALVE-REED

12022-0006

$9.44

13271

PLATE

13271-0886

$5.51

13271A

PLATE

13271-0887

$5.51

14001

SET-CRANKCASE

14001-0123

$707.38

32085

STOPPER,VALVE-REED

32085-0011

$4.10

92005

FITTING,BREATHER

92005-0014

$21.63

92022

WASHER,6.2X11X1

92022-304

$2.76

92043

PIN,10.1X12X14

92043-4009

$4.67

92045

BEARING-BALL,3TM-SX0391ZC3

92045-0013

$28.78

92045A

BEARING-BALL,22X50X14

92045-0051

$28.50

92045B

BEARING-BALL,CRANKSHAFT MAIN

92045-0052

$58.88

92045C

BEARING-BALL,6905Z

92045-1058

$30.22

92045D

BEARING-BALL,#628

92045-1123

$18.83

92045E

BEARING-BALL,TMB203

92045-1291

$19.42

92045F

BEARING-BALL,SX04A81C3

92045-1335

$58.70

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92046A

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

$29.14

92049

SEAL-OIL,SD2 14 22 6-1 NS

92049-0015

$9.03

92049A

SEAL-OIL,TC 30 40 7

92049-0030

$16.06

92049B

SEAL-OIL,AG0353-F0

92049-1262

$4.93

92062

NOZZLE

92062-0004

$4.00

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG,DRAIN

92066-1437

$4.88

92072

BAND,L=152

92072-3874

$3.75

92153

BOLT,6X14

92153-0878

$2.34

92153A

BOLT,TORX,6X6.7

92153-1736

$2.00

92170

CLAMP

92170-1938

$2.84

92171

CLAMP

92171-0579

$5.86

92192

TUBE,BREATHER

92192-0102

$33.30

92200

WASHER,12.5X18X1.6

92200-0087

$1.78

92200A

WASHER,6X20X3.2

92200-0120

$1.78
