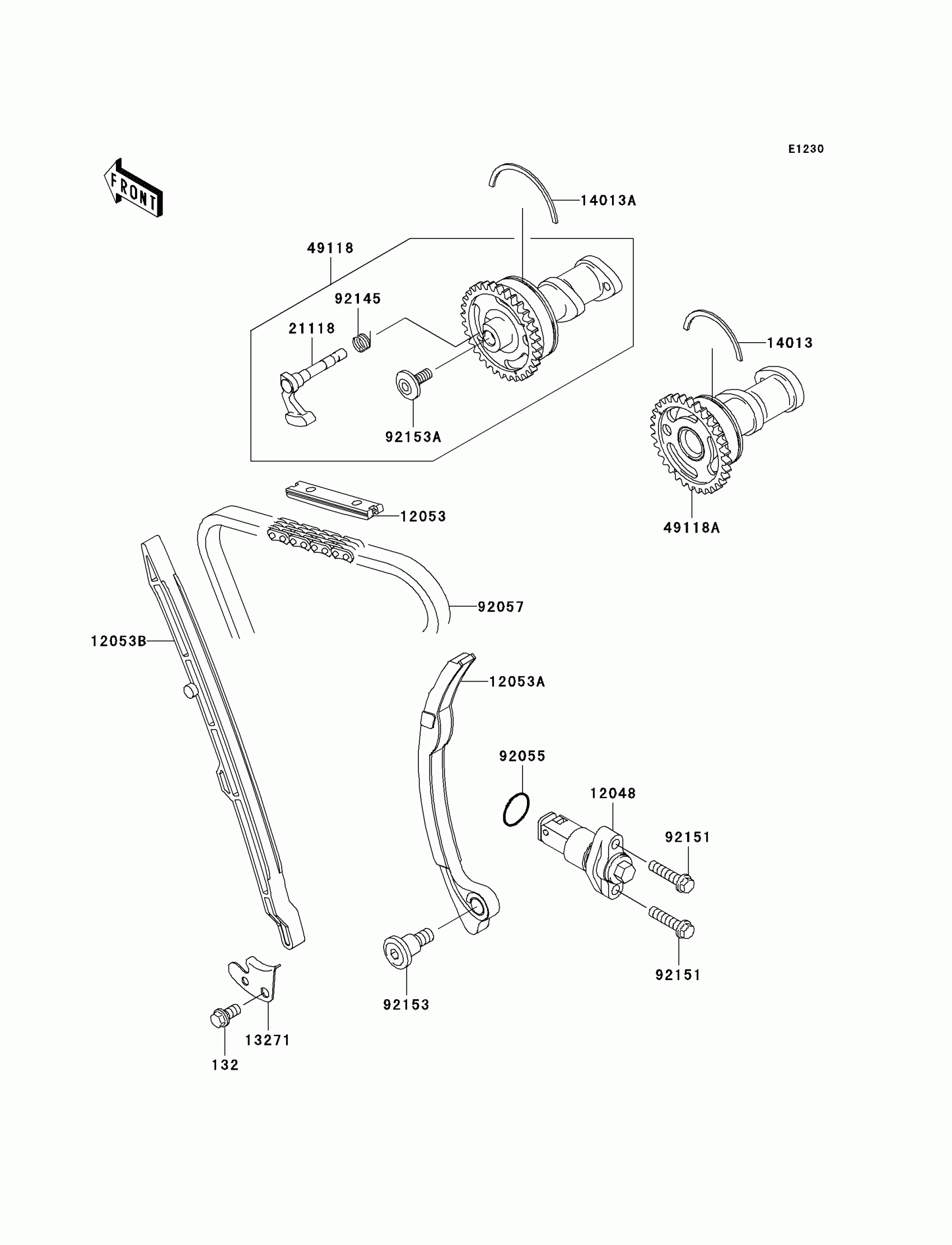

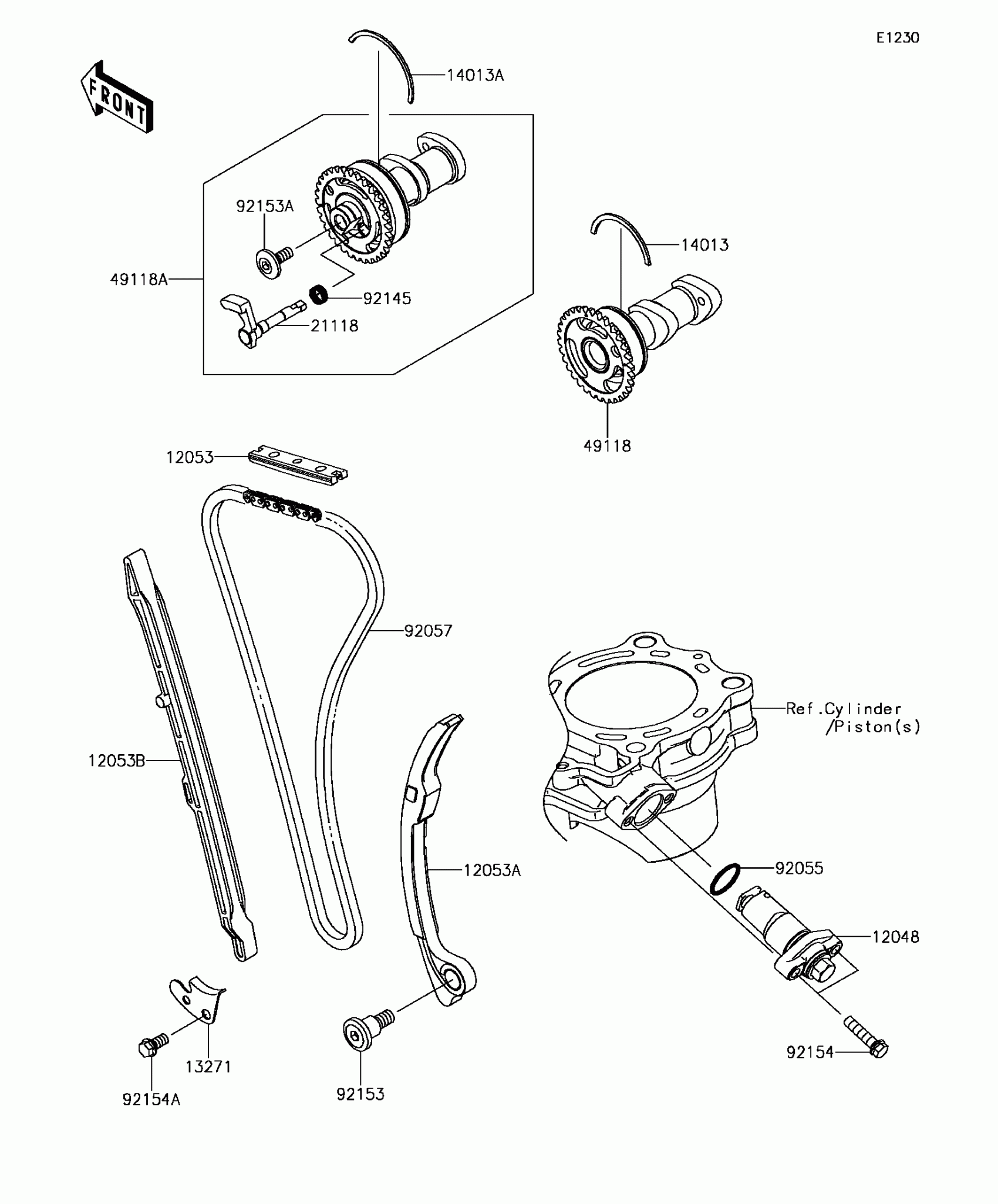

Kawasaki KX™250F Camshaft(s)/Tensioner Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

12048

TENSIONER-ASSY

12048-1181

$116.81

12053

GUIDE-CHAIN,UPP

12053-0009

$18.17

12053A

GUIDE-CHAIN,RR

12053-0010

$77.30

12053B

GUIDE-CHAIN,FR

12053-0017

$29.19

13271

PLATE,CAM CHAIN STOPPER

13271-0808

$4.80

14013

RING-POSITION

14013-0001

$4.18

14013A

RING-POSITION

14013-0002

$4.18

21118

DECOMPRESSOR

21118-0004

Unavailable

49118

CAMSHAFT-COMP,EXHAUST

49118-0065

Unavailable

49118A

CAMSHAFT-COMP,INTAKE

49118-0066

$168.59

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM,92RH2010-114

92057-0030

$41.50

92145

SPRING,DECOMP

92145-0365

$5.61

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92153

BOLT,12X24.5

92153-0572

$8.37

92153A

BOLT,SOCKET,6X16

92153-0918

$8.76
