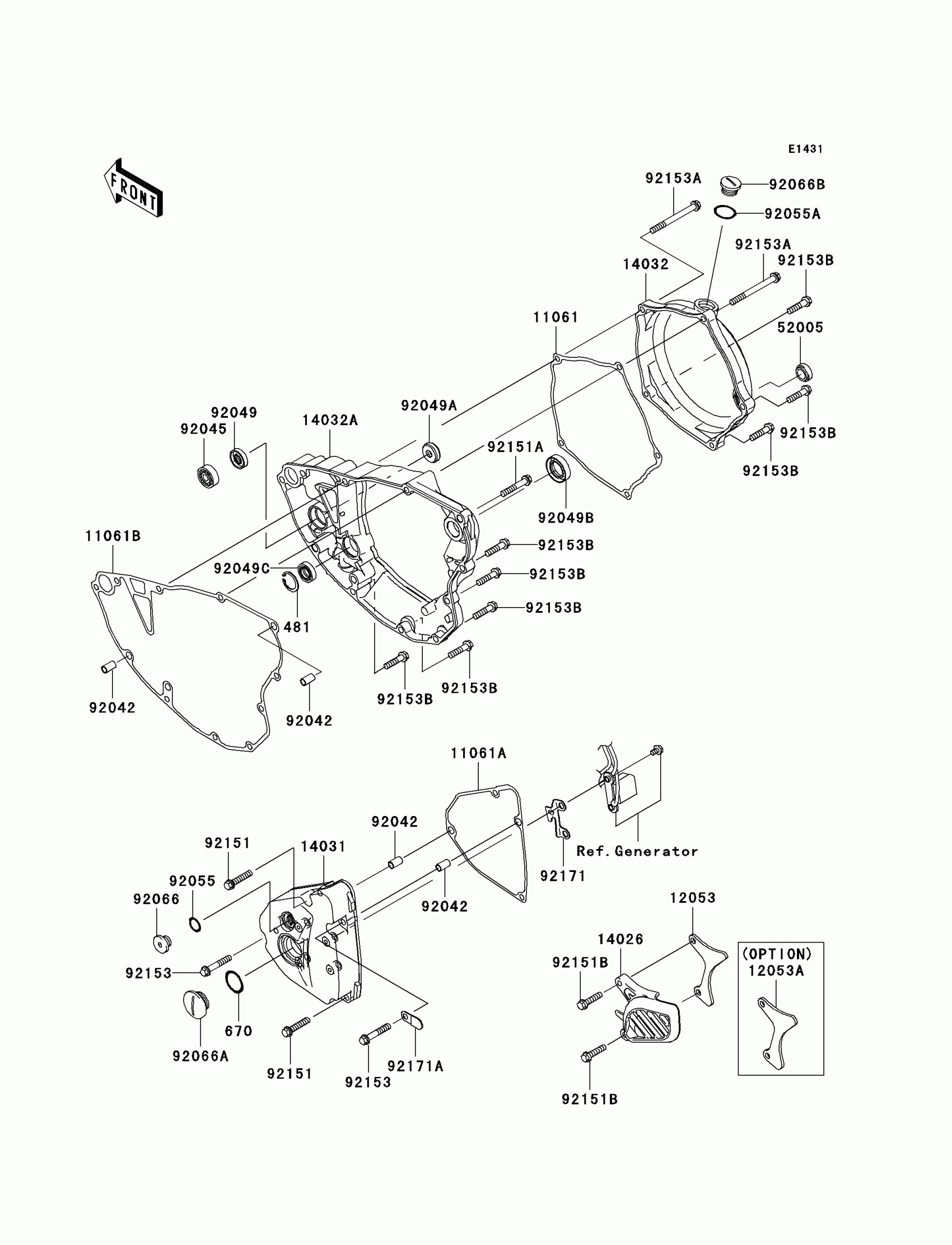

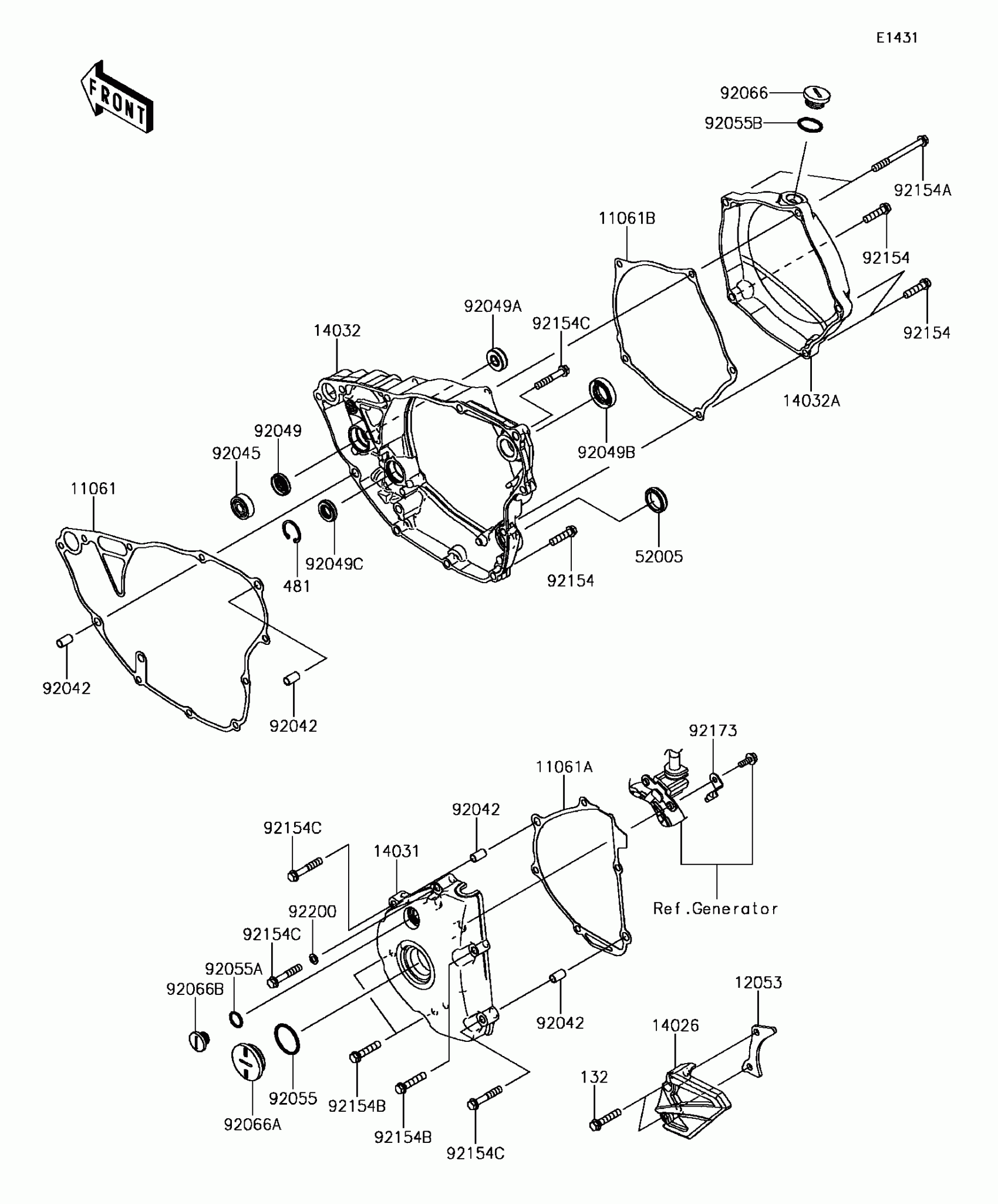

Kawasaki KX™250F Engine Cover(s) Diagram

#

Description
Price

481

CIRCLIP-TYPE-C,22MM

481J2200

$0.82

670

O RING,22MM

670B2022

$3.57

11061

GASKET,CLUTCH COVER,OUTER

11061-0031

$24.80

11061A

GASKET,GENERATOR COVER

11061-0323

$25.14

11061B

GASKET,CLUTCH COVER,INNER

11061-0324

$40.33

12053

GUIDE-CHAIN,13T

12053-0011

$12.15

12053A

GUIDE-CHAIN,12T

12053-0018

$12.15

14026

COVER-CHAIN

14026-0026

$28.78

14031

COVER-GENERATOR

14031-0077

$97.40

14032

COVER-CLUTCH,OUTER

14032-0049

$145.06

14032A

COVER-CLUTCH,INNER

14032-0057

$338.03

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92045

BEARING-BALL,#628

92045-1123

$18.83

92049

SEAL-OIL,SD 8 22 5 ZS

92049-0060

$8.97

92049A

SEAL-OIL

92049-0061

$8.97

92049B

SEAL-OIL,SB18307

92049-013

$10.91

92049C

SEAL-OIL,TC13225.5

92049-1519

$10.29

92055

RING-O,13.0X1.9

92055-1011

$5.81

92055A

RING-O,20X2

92055-1146

$6.55

92066

PLUG,12X9.1

92066-0039

$8.72

92066A

PLUG,OIL

92066-0059

Unavailable

92066B

PLUG,OIL

92066-0060

$15.92

92151

BOLT,6X30

92151-1134

$1.57

92151A

BOLT,6X35

92151-1135

$3.19

92151B

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92153

BOLT,6X35

92153-0668

$4.22

92153A

BOLT,6X65

92153-0697

$3.95

92153B

BOLT,FLANGED-SMALL,6X25

92153-1784

Unavailable

92171

CLAMP,HARNESS

92171-0195

Unavailable

92171A

CLAMP

92171-0295

$4.22
