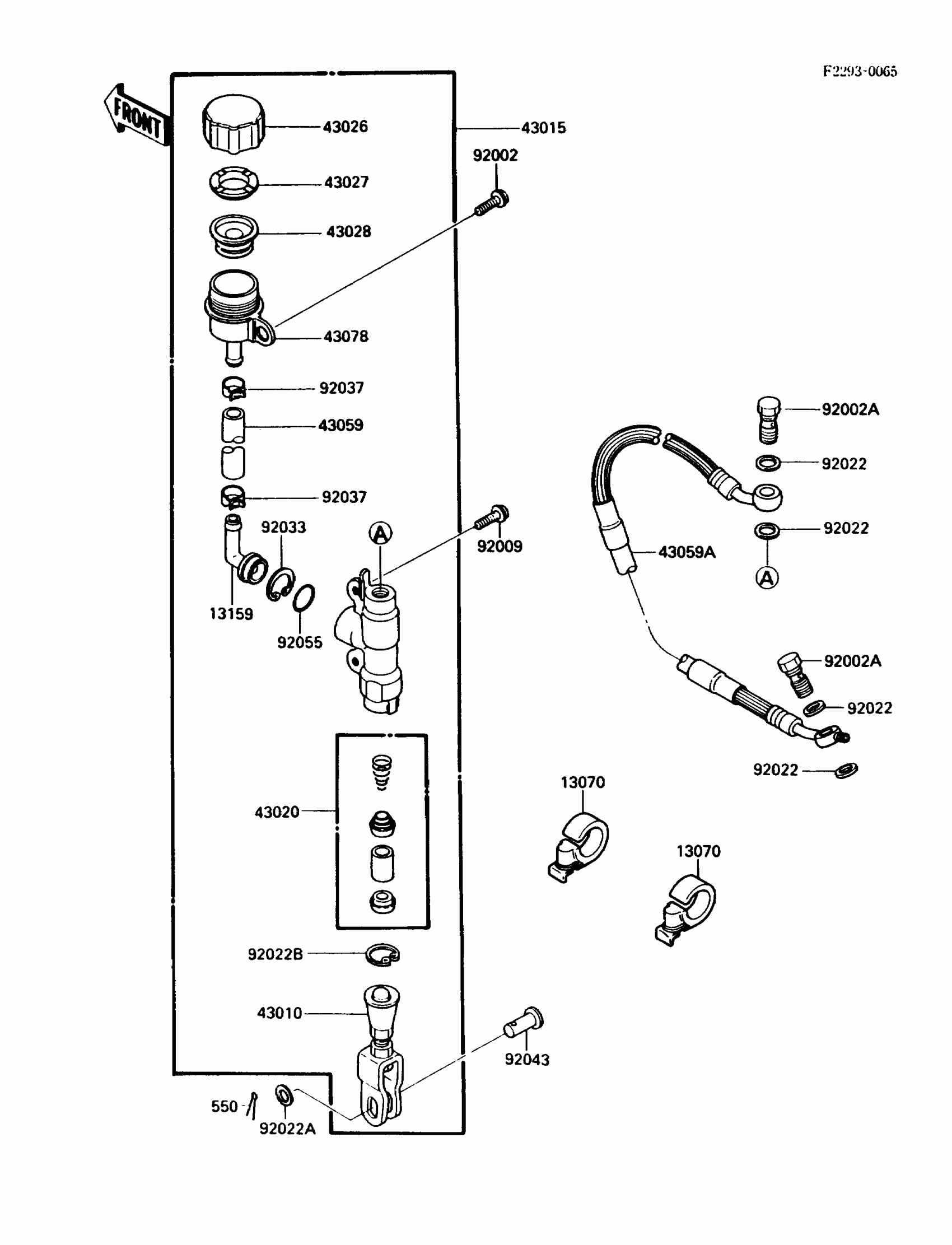

1988 Kawasaki KX™250 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

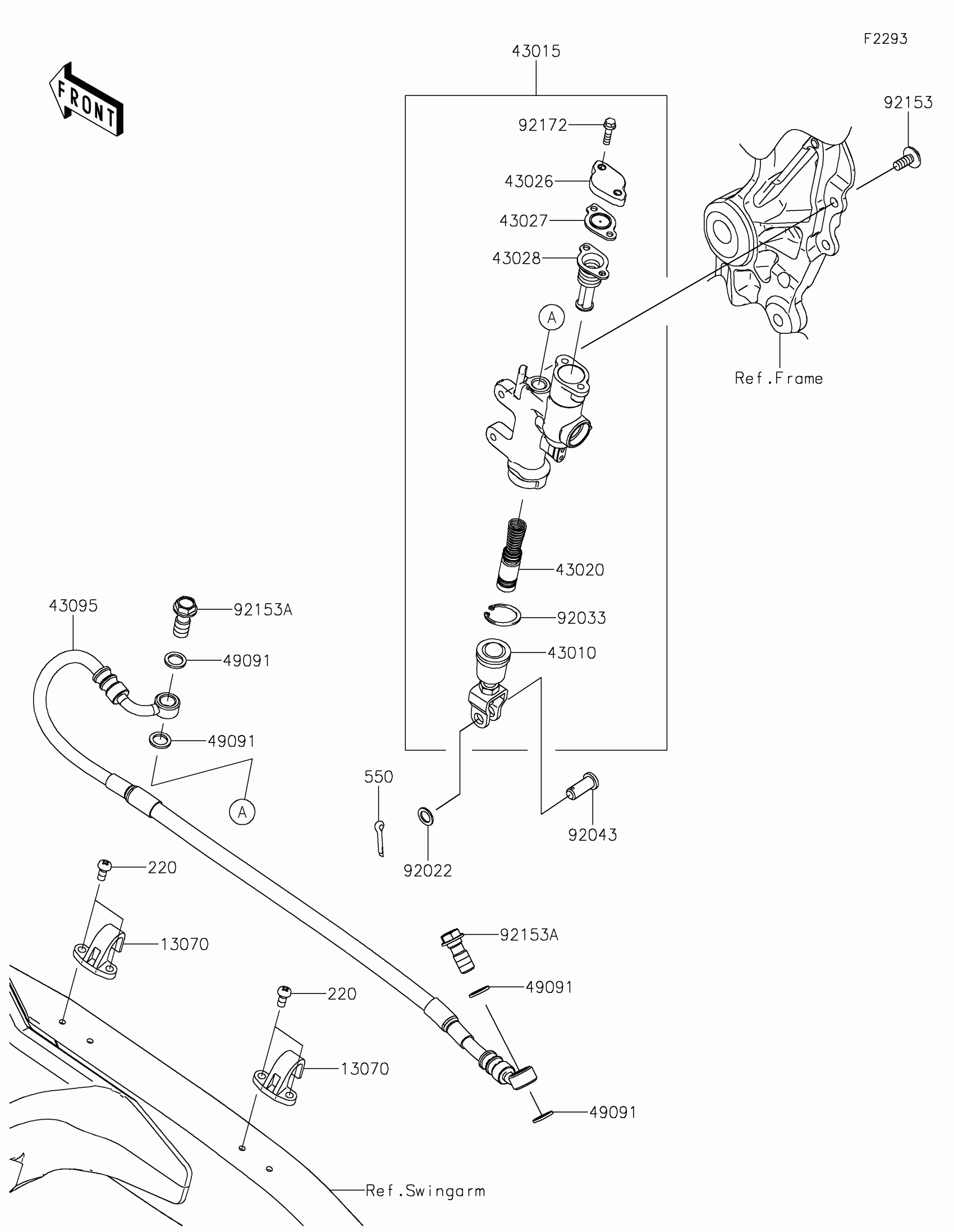

1988 Kawasaki KX™250 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,HOSE

13070-1186

1
Out of stock

13159

CONNECTOR

13159-1056

1

$11.16

In stock

43010

ROD-ASSY-BRAKE

43010-1065

1

$52.23

In stock

43015

1

$463.91

In stock

43020

PISTON-COMP-BRAKE

43020-1063

1

$59.90

In stock

43026

CAP-BRAKE

43026-1058

1

$34.24

In stock

43027

PLATE-DIAPHRAGM

43027-1052

1

$3.88

In stock

43028

DIAPHRAGM

43028-1060

1

$16.34

In stock

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1380

1
Out of stock

43059A

HOSE-BRAKE,RR

43059-1434

1

$114.17

In stock

43078

RESERVOIR

43078-1068

1

$28.80

In stock

92002

BOLT,6X14

92002-1460

1

$4.02

In stock

92002A

BOLT,OIL,L=23

92002-1888

1
Out of stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92022A

WASHER,8.5X13X1

92022-1028

1

$3.12

In stock

92022B

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1

$3.94

In stock

92037

CLAMP

92037-1710

1

$7.86

In stock

92043

PIN

92043-1039

1

$7.86

In stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
