1988 Kawasaki KX™250 Brake Pedal Diagram

← All diagrams

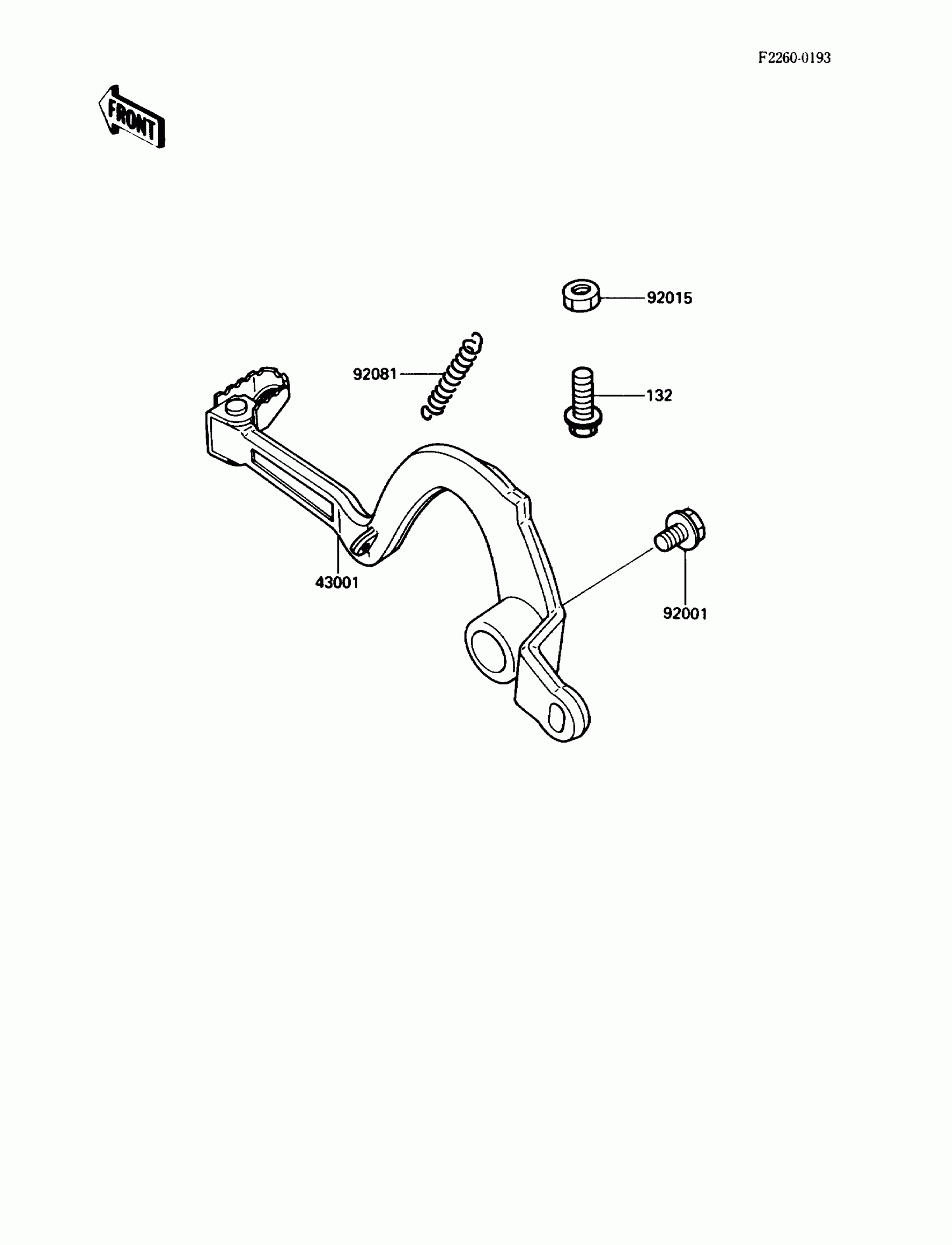

Find the part on the Brake Pedal diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-1239

1

$133.96

In stock

92001

BOLT,FLANGED,6X10

92001-1034

1

$8.16

In stock

92015

NUT,6MM

92015-1391

1

$2.05

In stock

92081

1

$5.78

In stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock
