1988 Kawasaki KX™250 Rear Brake Diagram

← All diagrams

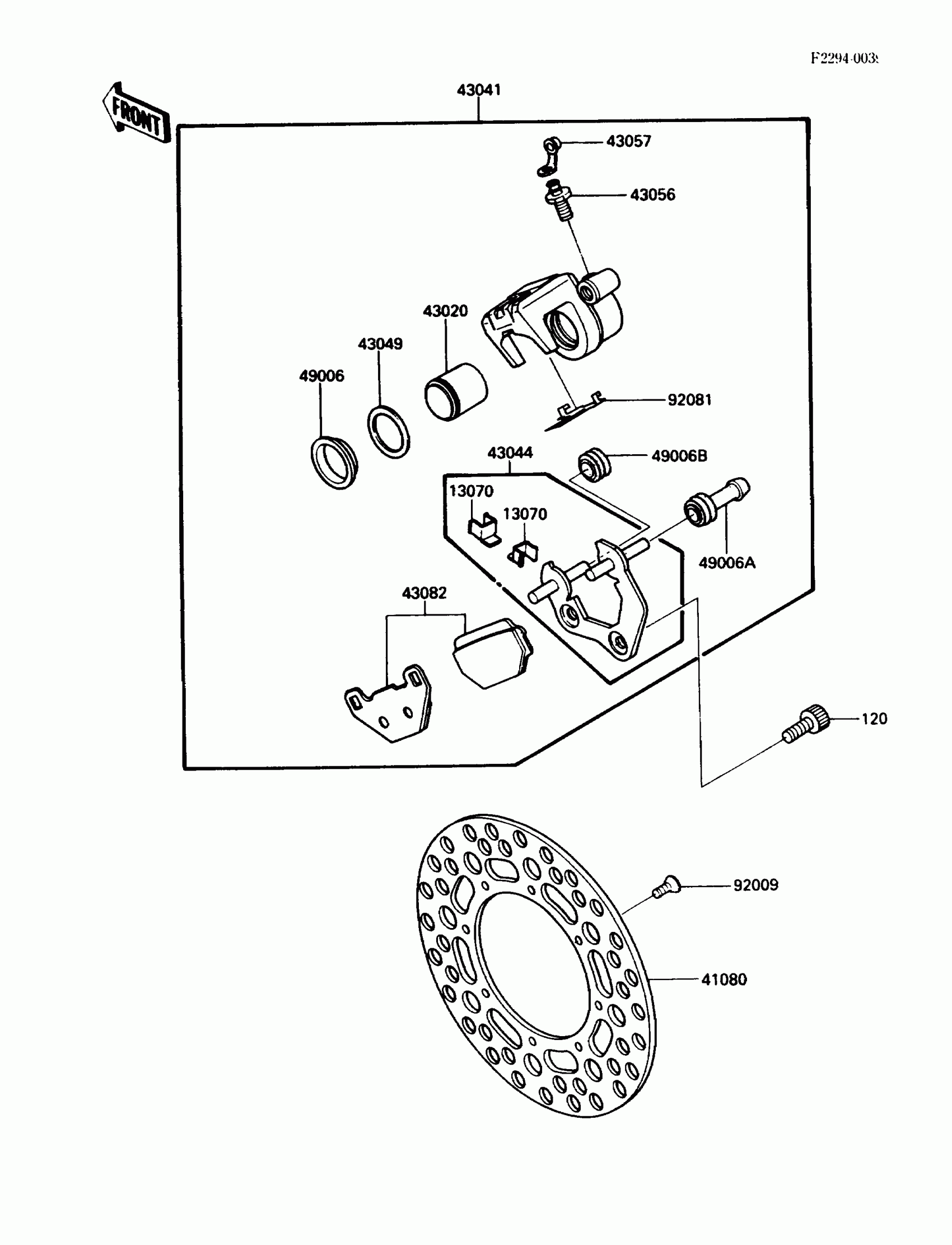

Find the part on the Rear Brake diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,PAD

13070-1175

1

$4.15

In stock

41080

DISC,RR

41080-1187

1

$216.38

In stock

43020

PISTON-COMP-BRAKE

43020-1062

1

$61.29

In stock

43041

CALIPER-ASSY,RR

43041-1244

1

$568.41

In stock

43044

1

$162.87

In stock

43049

PACKING

43049-1016

1

$8.25

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1073

1

$54.50

In stock

49006

BOOT,PISTON SEAL

49006-1053

1

$20.54

In stock

49006A

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006B

BOOT,CALIPER

49006-1055

1

$5.78

In stock

92009

SCREW,6X10

92009-1375

1
Out of stock

92081

SPRING,PAD

92081-1341

1

$12.00

In stock

120

BOLT-SOCKET,8X20

120P0820

1
Out of stock
