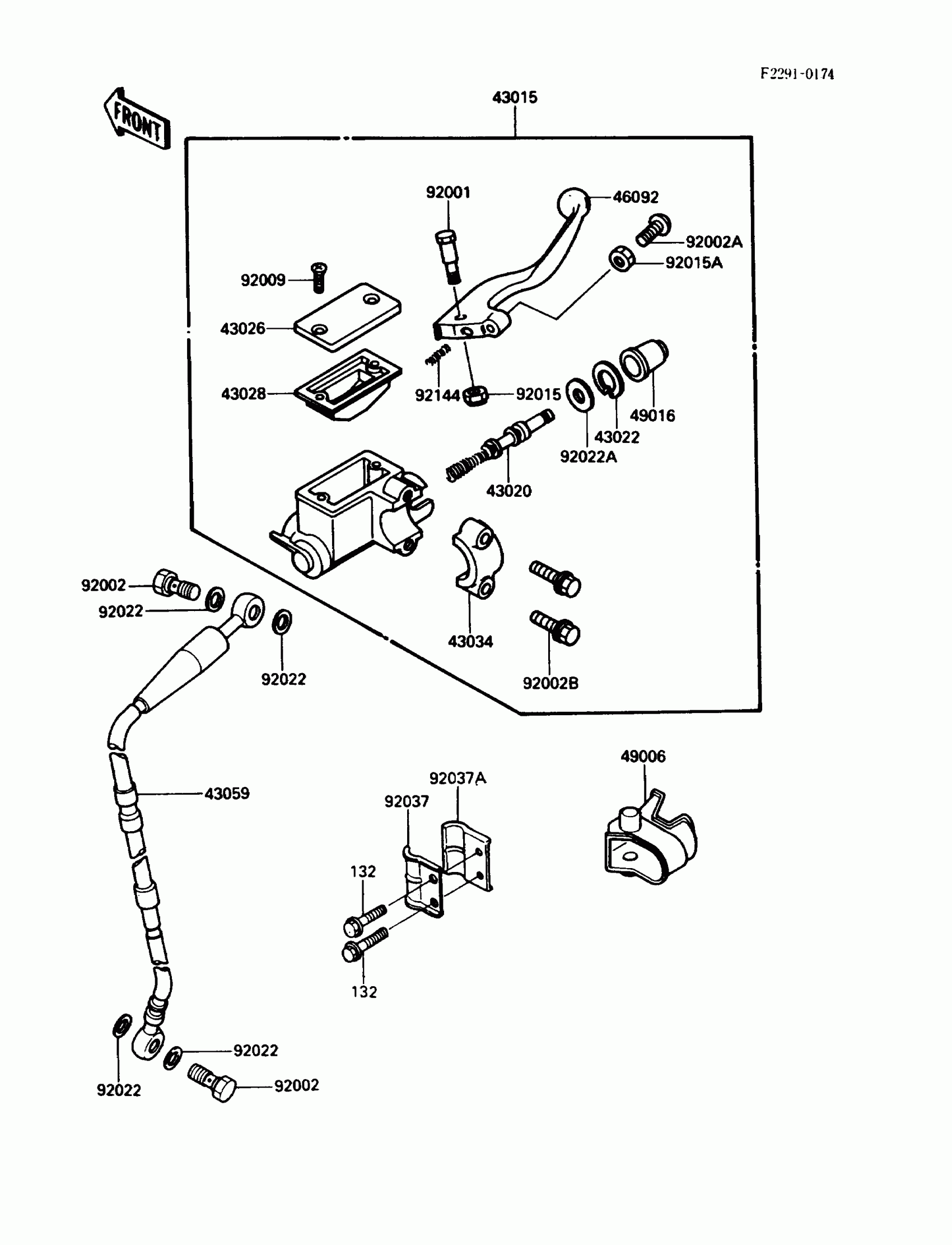

Kawasaki KX™250 Front Master Cylinder Diagram

#

Description
Price

43015

CYLINDER-ASSY-MASTER,FR

43015-1367

$373.63

43020

PISTON-COMP-BRAKE

43020-1071

Unavailable

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1063

$30.42

43028

DIAPHRAGM

43028-1067

$14.12

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43059

HOSE-BRAKE,FR

43059-1421

$180.51

46092

LEVER-GRIP,FRONT BRAKE

46092-1148

$32.32

49006

BOOT,FRONT BRAKE LEVER

49006-1231

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT,OIL,L=23

92002-1888

$4.15

92002A

BOLT,ADJUST

92002-1893

$7.36

92002B

BOLT

92002-1894

$4.18

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,ADJUST

92015-1642

$2.99

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92022A

WASHER

92022-1814

$4.17

92037

CLAMP,BRAKE HOSE,OUTSIDE

92037-1362

$5.61

92037A

CLAMP,BRAKE HOSE,INSIDE

92037-1363

$5.61

92144

SPRING,RETURN

92144-1103

$7.18

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable
