1988 Kawasaki KX™250 Front Brake Diagram

← All diagrams

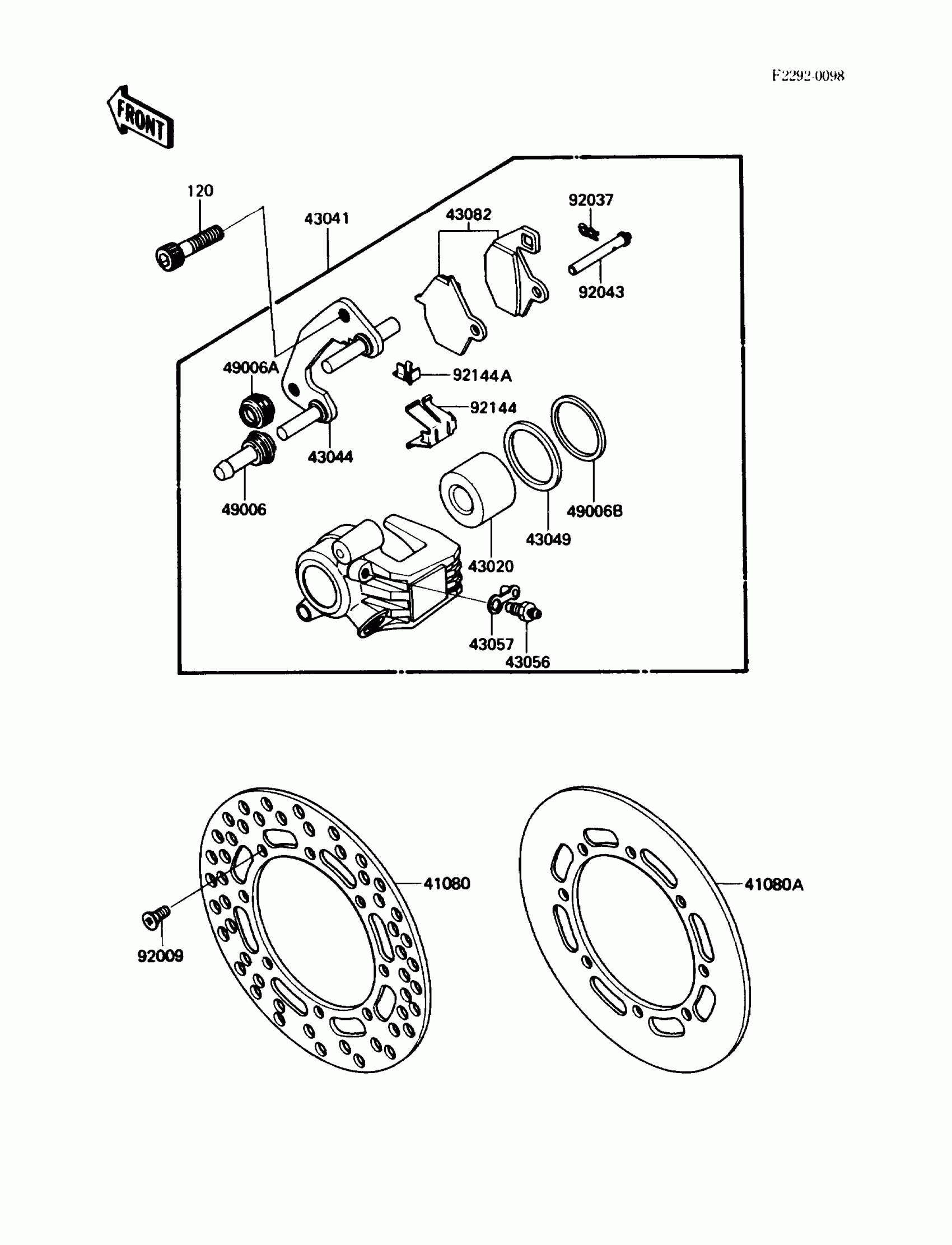

Find the part on the Front Brake diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR

41080-1147

1

$316.07

In stock

41080A

DISC,FR

41080-1188

1

$342.30

In stock

43020

PISTON-COMP-BRAKE

43020-1072

1
Out of stock

43041

CALIPER-ASSY,FR

43041-1243

1

$274.93

In stock

43044

1

$162.87

In stock

43049

1

$8.76

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1072

1
Out of stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1055

1

$5.78

In stock

49006B

BOOT,PISTON SEAL

49006-1212

1

$21.56

In stock

92009

SCREW,6X10

92009-1375

1
Out of stock

92037

CLAMP,PAD

43084-003

1

$3.43

In stock

92043

PIN,PAD

92043-1356

1

$10.25

In stock

92144

SPRING,PAD

92144-1117

1

$42.93

In stock

92144A

SPRING,PAD STOPPER

92144-1118

1
Out of stock

120

BOLT-SOCKET,8X20

120P0820

1
Out of stock
