2019 Kawasaki KX™250 Cylinder/piston Diagram

← All diagrams

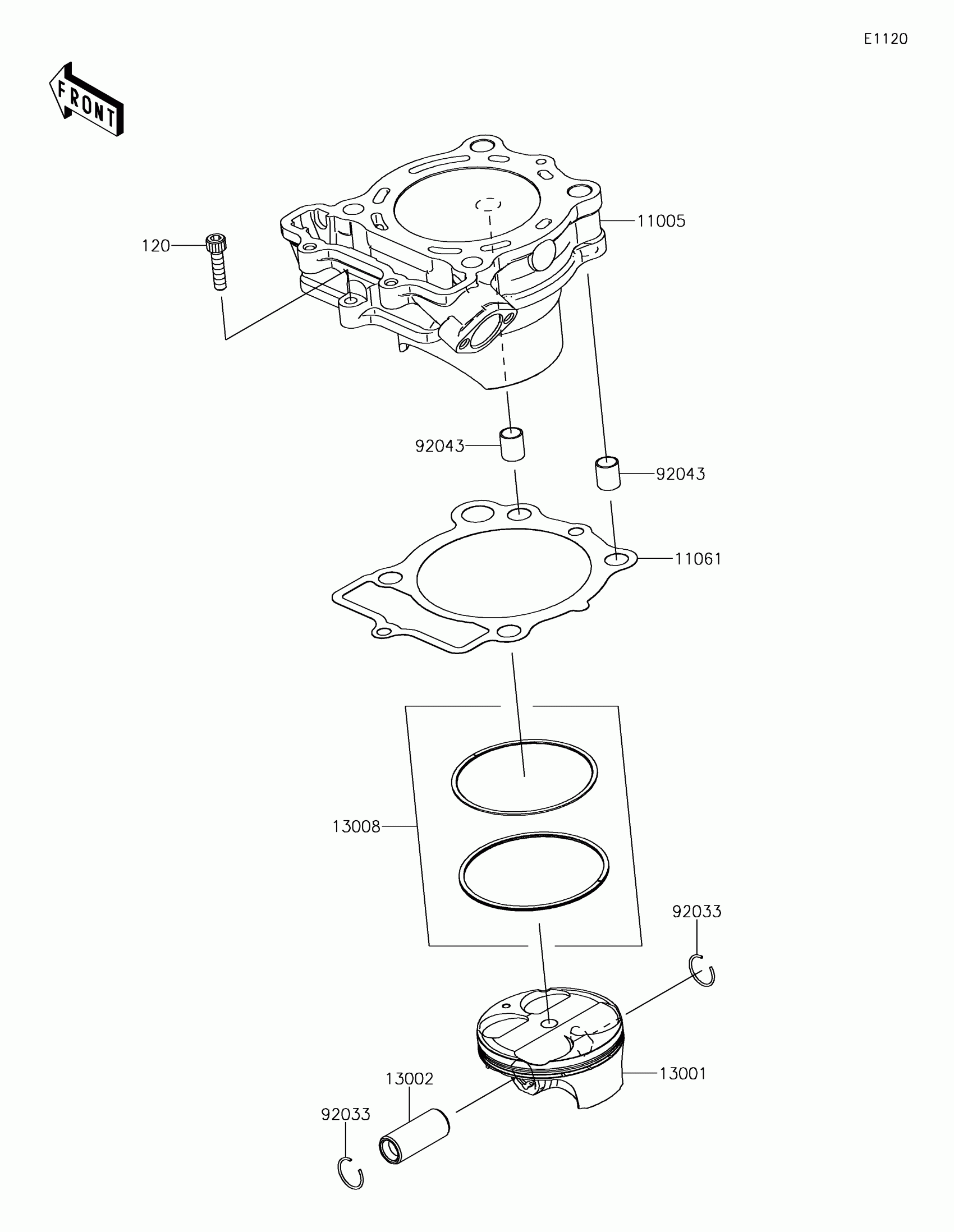

Find the part on the Cylinder/piston diagram for your 2019 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki KX™250 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0665

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-1198

1
Out of stock

120

BOLT-SOCKET,6X25

120CA0625

1
Out of stock

13001

PISTON-ENGINE

13001-0793

1
Out of stock

13002

PIN-PISTON

13002-0048

1
Out of stock

13008

RING-SET-PISTON

13008-0028

1
Out of stock

92033

RING-SNAP,PISTON PIN

92033-1161

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock
