2019 Kawasaki KX™250 Cylinder Head Diagram

← All diagrams

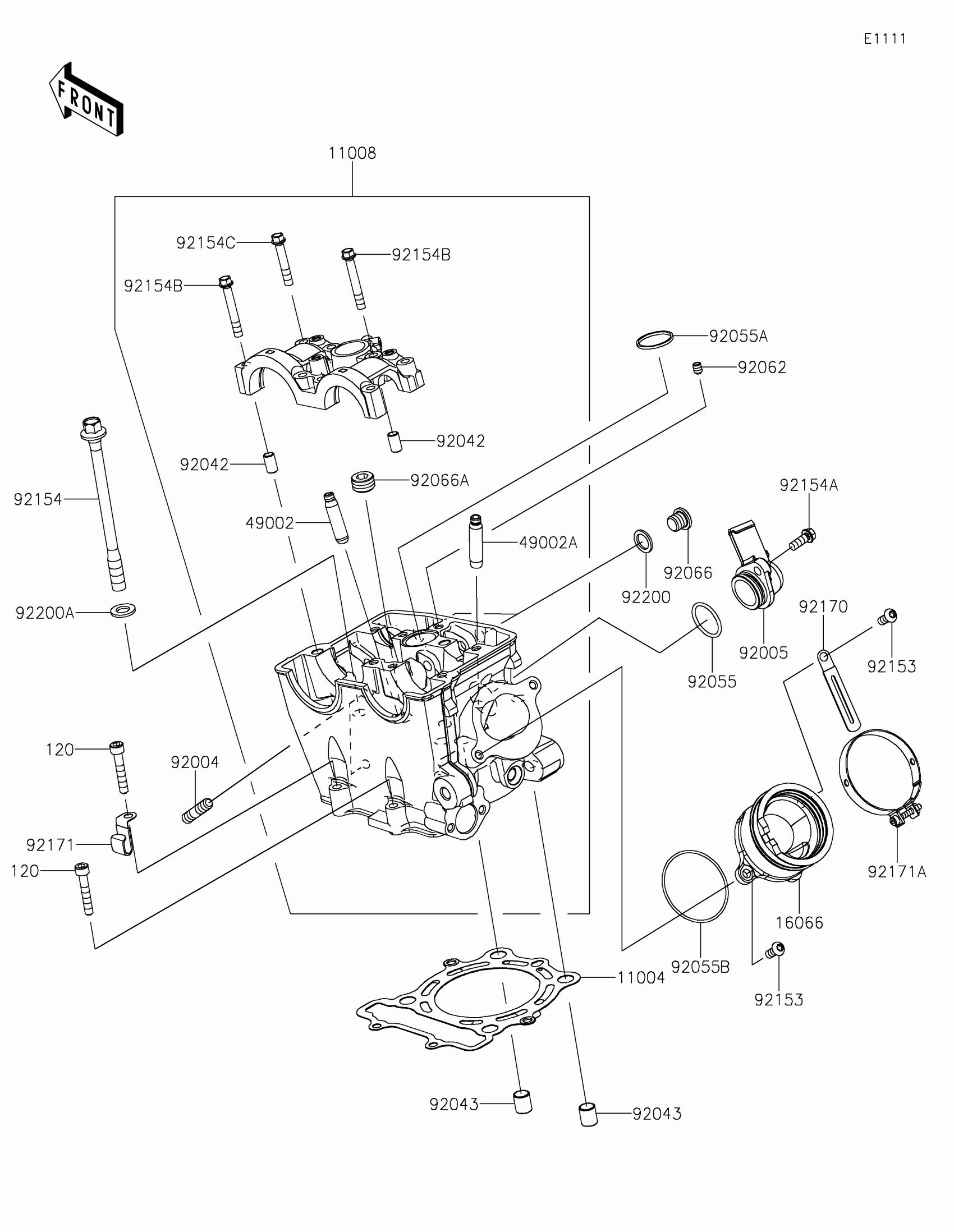

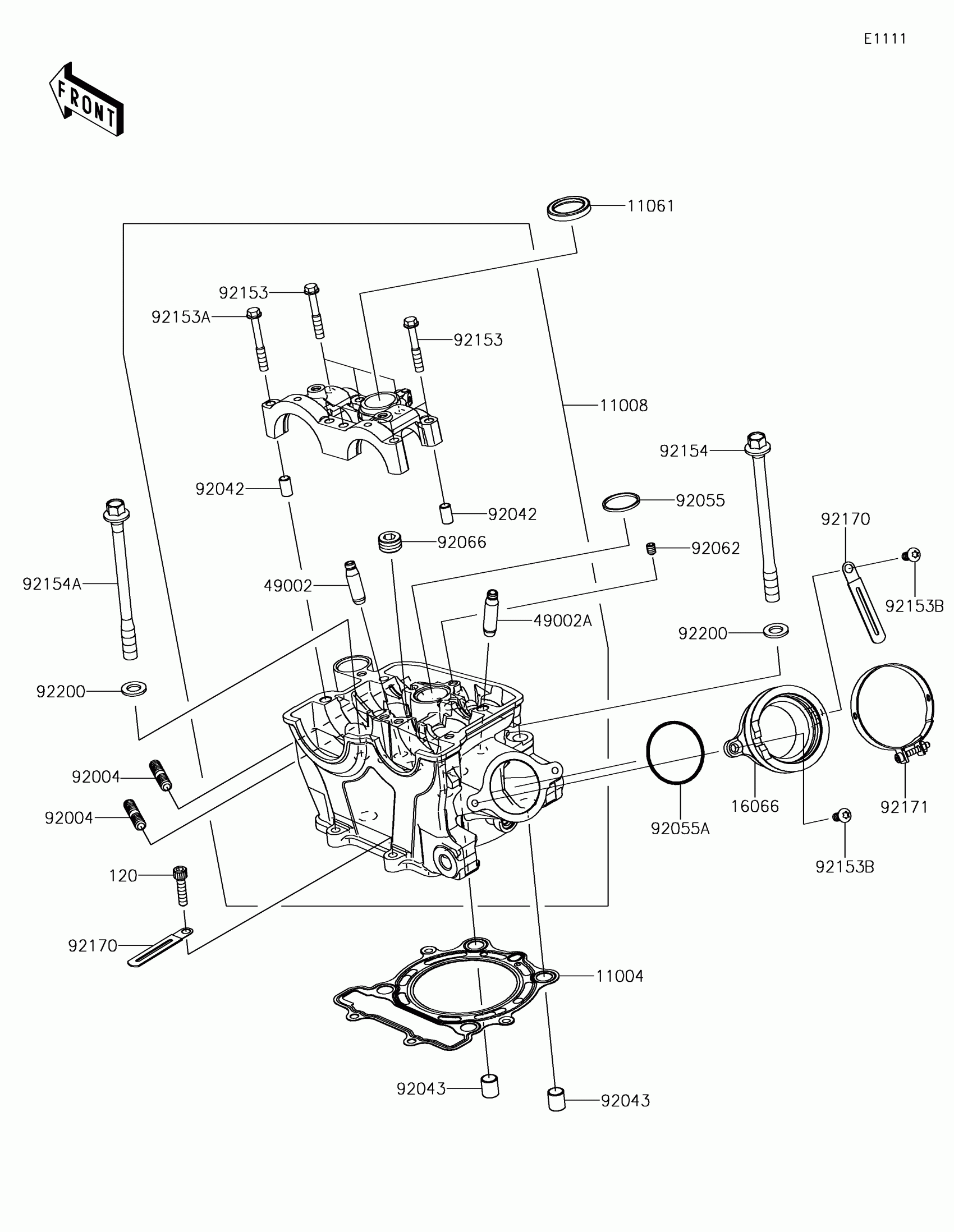

Find the part on the Cylinder Head diagram for your 2019 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki KX™250 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0761

1

$33.62

In stock

11008

HEAD-COMP-CYLINDER

11008-0902

1

$838.38

In stock

11061

GASKET,PLUG HOLE

11061-1197

1

$6.12

In stock

120

BOLT-SOCKET,6X25

120CA0625

1
Out of stock

16066

1

$21.15

In stock

49002

GUIDE-VALVE

49002-0003

1

$14.13

In stock

49002A

GUIDE-VALVE

49002-0035

1

$23.05

In stock

92004

STUD,8X22

92004-0025

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

RING-O,25X1.9X1.35

92055-0729

1

$2.97

In stock

92055A

RING-O,43.7X1.9

92055-1401

1

$10.88

In stock

92062

NOZZLE,6X8,YELLOW

92062-1080

1

$8.37

In stock

92066

PLUG,10X16.6

92066-3777

1

$4.85

In stock

92153

BOLT,6X38

92153-0338

1
Out of stock

92153A

BOLT,6X45

92153-0339

1
Out of stock

92153B

BOLT,TORX,6X14

92153-0406

1
Out of stock

92154

BOLT,FLANGED,10X130

92154-2104

1

$12.62

In stock

92154A

BOLT,FLANGED,10X122

92154-2321

1

$13.54

In stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92171

CLAMP

92171-1552

1

$15.49

In stock

92200

WASHER,10.2X18.4X1.8

92200-1691

1
Out of stock
