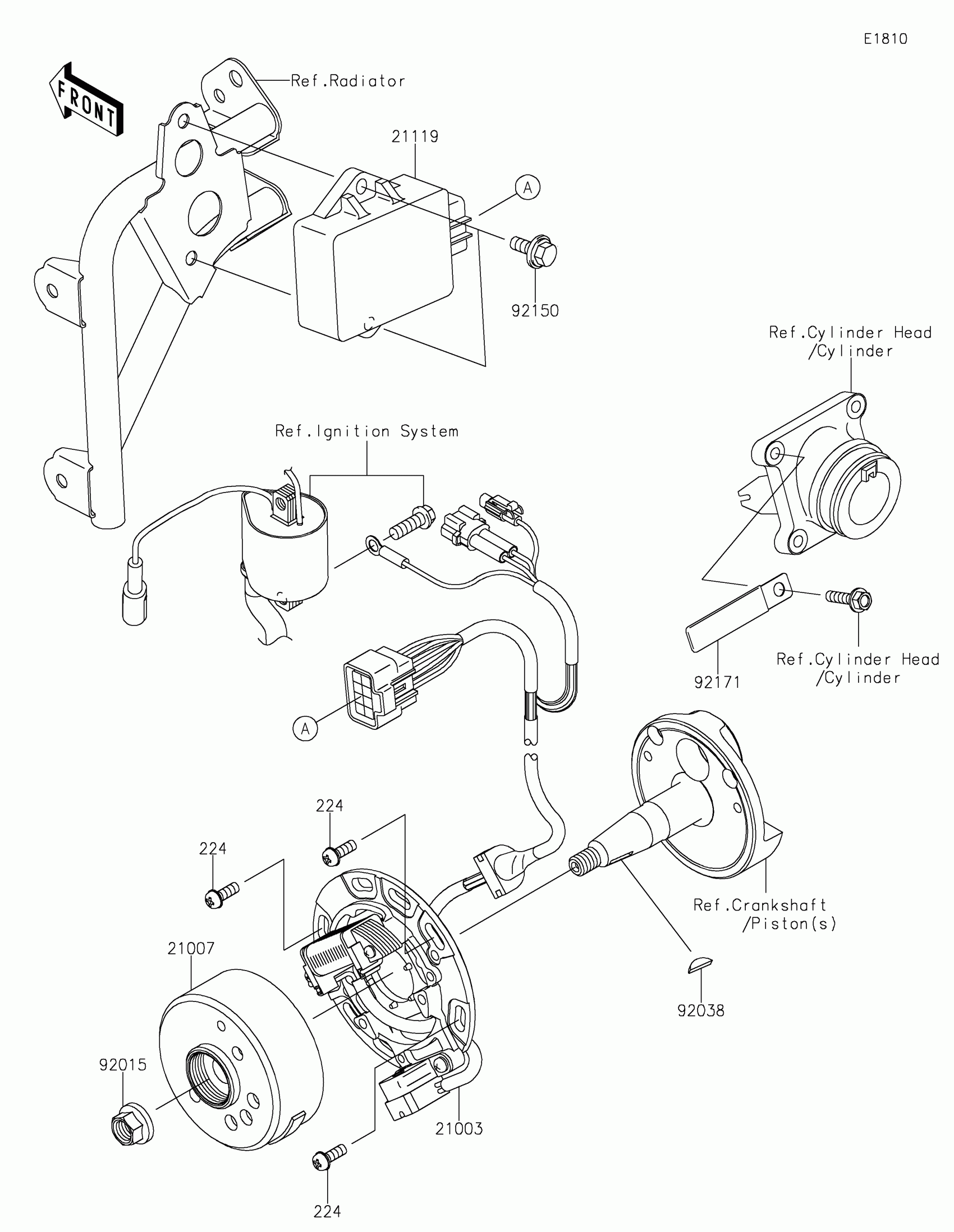

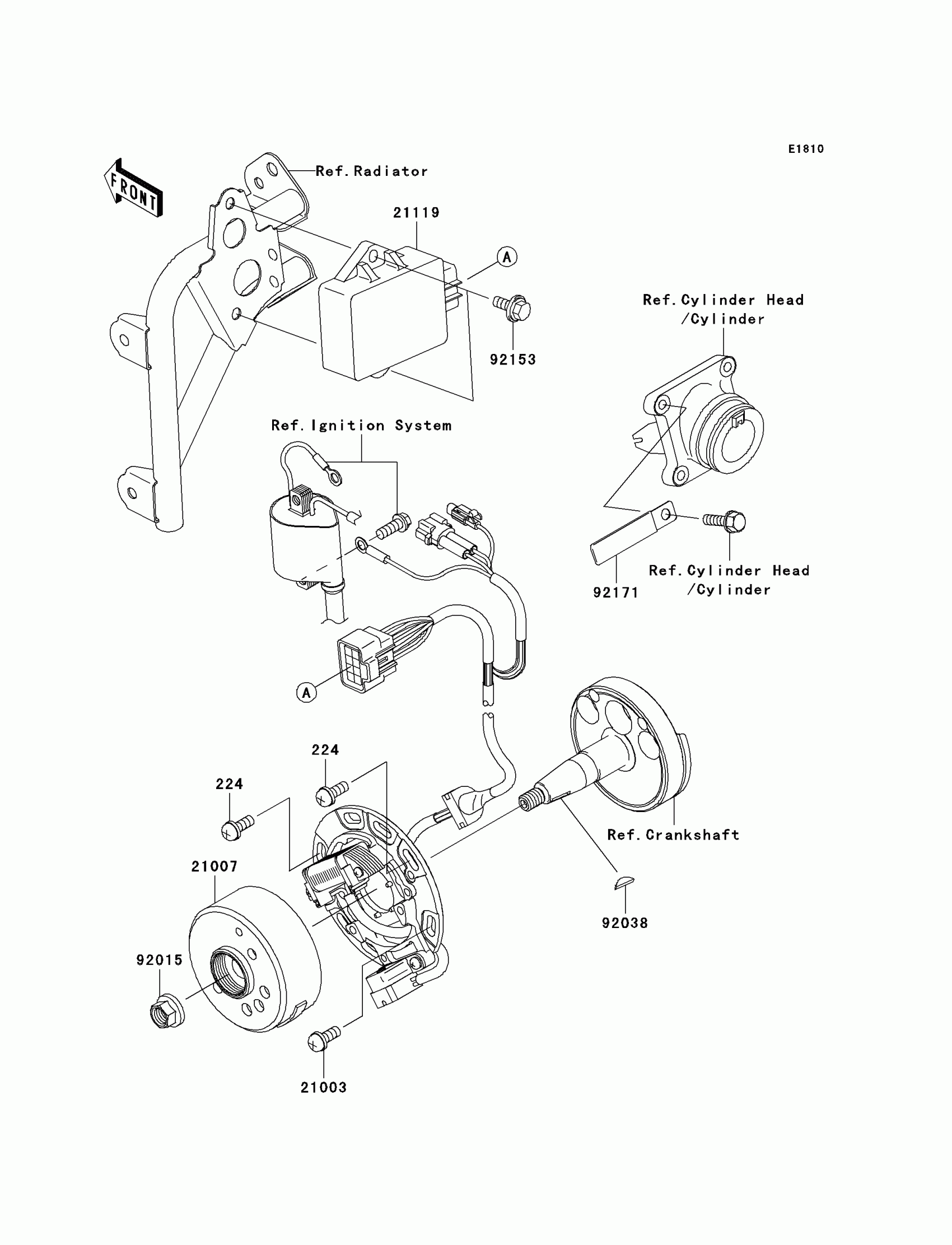

Find the part on the Generator diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™100 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

224

1

$4.37

In stock

21003

STATOR

21003-0032

1
Out of stock

21007

ROTOR

21007-0074

1

$432.86

In stock

21119

IGNITER

21119-0049

1

$268.73

In stock

92015

NUT,FLANGED,10MM

92015-077

1
Out of stock

92038

KEY,WOODRUFF

92038-001

1

$3.94

In stock

92153

BOLT,6X16

92153-0863

1
Out of stock

92171

CLAMP,L=60

92171-0652

1

$2.15

In stock
