1980 Kawasaki KV75 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1980 Kawasaki KV75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

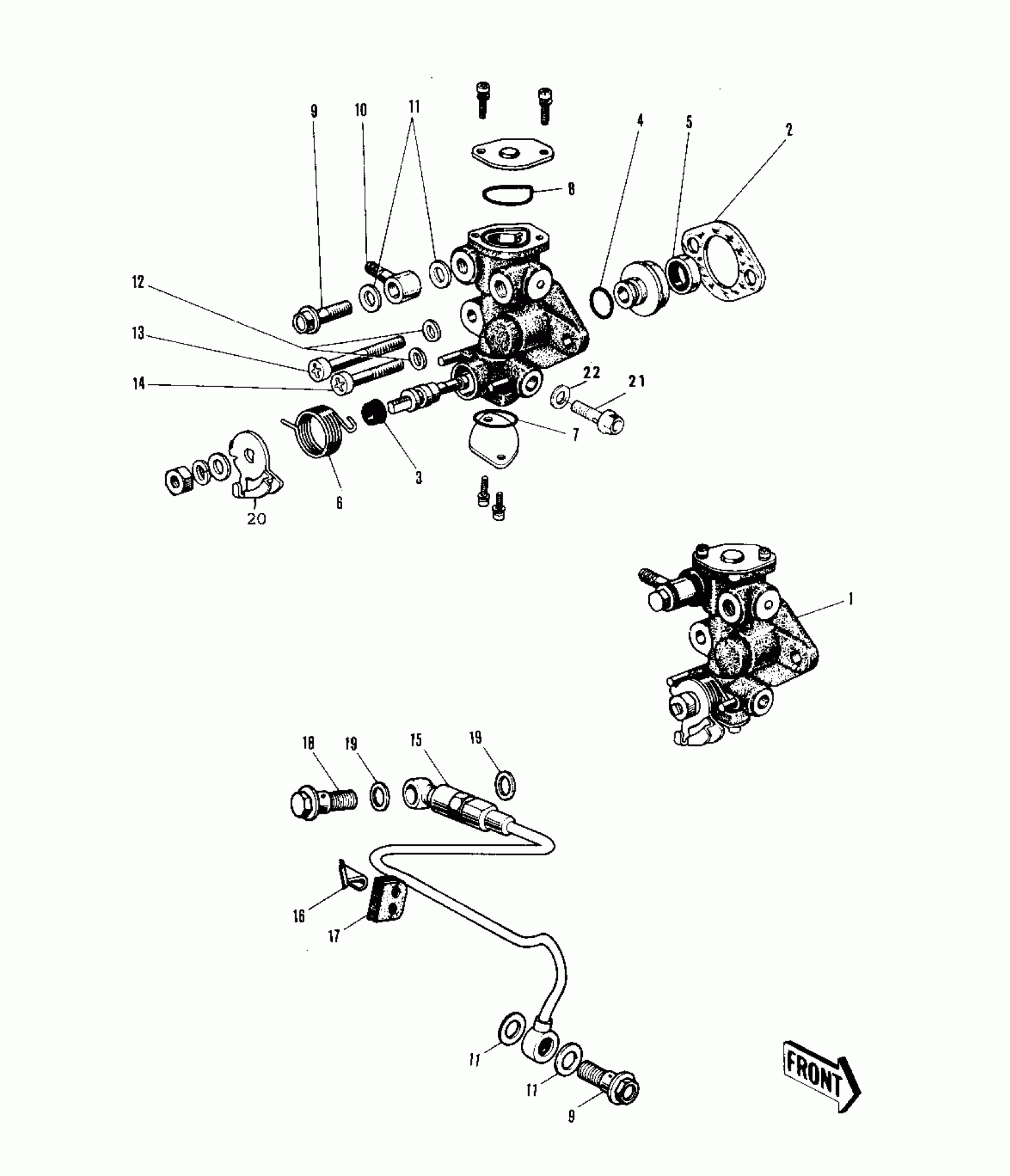

1980 Kawasaki KV75 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

16082-1004

1
Out of stock

1

OIL PUMP ASSY

16082-1004

1
Out of stock

1

OIL PUMP ASSY

16082-1004

1
Out of stock

2

GASKET,OIL PUMP

11060-1160

1

$4.41

In stock

3

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

1
Out of stock

4

1

$3.43

In stock

5

1

$5.76

In stock

6

1

$9.95

In stock

6

1

$4.98

In stock

7

"0" RING,LOWER CAP

16090-003

1
Out of stock

7

RING-O,CAP,CAMSHAFT SIDE

16090-004

1
Out of stock

8

1

$7.84

In stock

9

BOLT,BANJO,L=16

92060-013

1

$5.16

In stock

9

BOLT,BANJO,L=16

92060-013

1

$5.16

In stock

10

FITTING,BANJO

92061-009

1
Out of stock

11

1

$3.13

In stock

12

1

$3.12

In stock

13

SCREW-PAN-CROS

220B0528

1

$1.34

In stock

14

SCREW-PAN-CROS

220B0514

1
Out of stock

15

PIPE-OIL

16134-015

1
Out of stock

16

BRACKET-OIL PIPE

16068-006

1
Out of stock

17

GROMMET

92071-049

1
Out of stock

18

BOLT-BANJO

92060-015

1

$14.78

In stock

19

GASKET,8.5X16X1

92065-023

1

$2.74

In stock

20

1

$9.88

In stock

21

BOLT,AIR VENT

92009-1010

1
Out of stock

22

WASHER

92022-1006

1

$5.14

In stock
