1980 Kawasaki KV75 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1980 Kawasaki KV75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

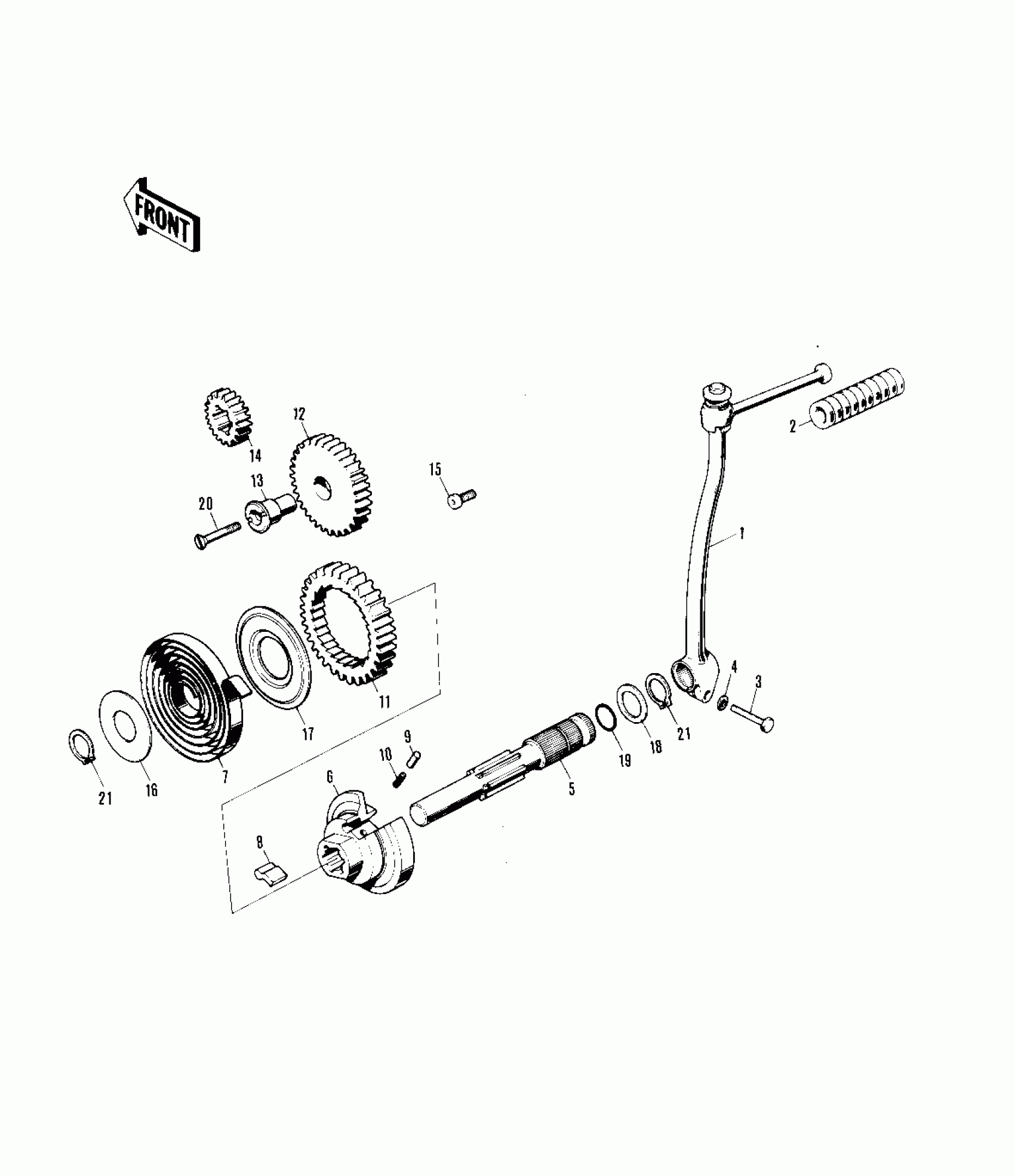

1980 Kawasaki KV75 Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL-KICKSTARTER

13058-031

1
Out of stock

2

RUBBER-KICK PEDAL

13063-005

1
Out of stock

3

BOLT-UPSET

112G0625

1
Out of stock

4

WASHER SPRING 6MM

461F0600

1
Out of stock

5

SHAFT-KICKSTARTER

13066-018

1
Out of stock

6

DRUM KK

13067-001

1
Out of stock

7

KICKSTARTER SPRING

92082-001

1
Out of stock

8

PAWL

13069-001

1
Out of stock

9

PIN KICKSTARTER PAWL

92042-001

1
Out of stock

10

SPRING KICK PAWL

92081-022

1
Out of stock

11

GEAR-KICKSTARTER

13068-003

1
Out of stock

12

IDLE GEAR

13073-002

1
Out of stock

13

SHAFT-IDLE GEAR

13074-002

1
Out of stock

14

PINION-KICKSTARTER

13075-003

1
Out of stock

15

STOPPER-KICKSTARTER

13072-001

1
Out of stock

16

PLATE-KICK SPRG HLDER

13071-001

1
Out of stock

17

PLATE-KICK GEAR HLDER

13071-002

1
Out of stock

18

WASHER,16MM

92022-006

1
Out of stock

19

"0" RING,16MM

92055-001

1
Out of stock

20

SCREW,CNTSNK,5X30.5

92010-002

1
Out of stock

21

CIRCLIP-TYPE-C,16MM

480J1600

1
Out of stock
