1980 Kawasaki KV75 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1980 Kawasaki KV75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

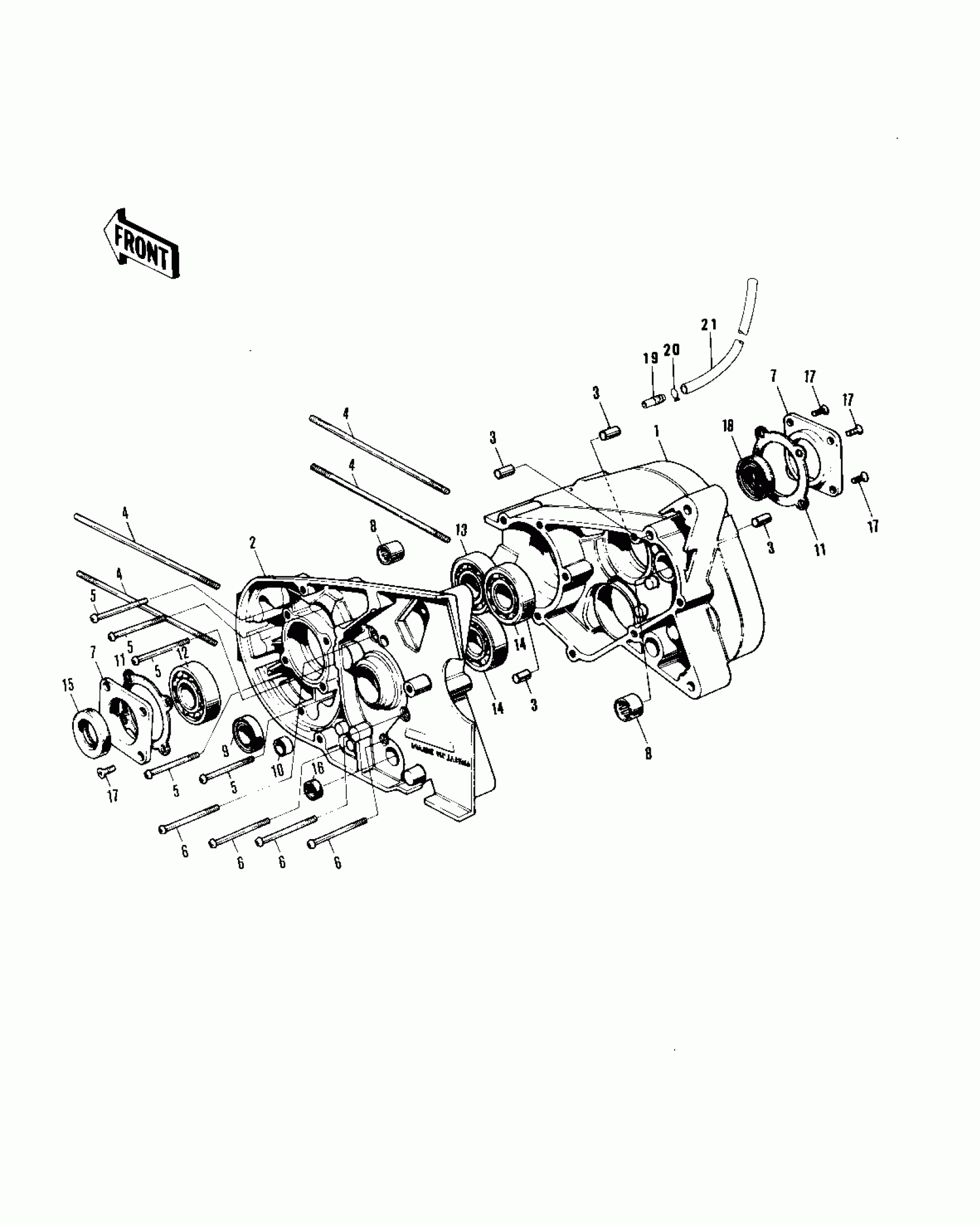

1980 Kawasaki KV75 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1 3

CRANKCASE SET

14001-068

1
Out of stock

3

PIN DOWEL 8X16

551A0816

1

$1.14

In stock

4

STUD,6X120

92004-033

1
Out of stock

5

1

$1.44

In stock

6

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

7

RETAINER-OIL SEAL

14020-009

1
Out of stock

8

NEEDLE BEARING-SM END

92046-024

1
Out of stock

9

SEAL-OIL,SC22325

92049-1048

1
Out of stock

9

SEAL-OIL,SC22325

92049-1048

1
Out of stock

10

OIL SEAL VB14246

92053-001

1
Out of stock

11

GASKET-OIL SEAL RETNR

14023-002

1
Out of stock

12

1

$10.76

In stock

13

1

$6.58

In stock

14

1

$11.12

In stock

15

OIL SEAL,TB20358

653B203508

1
Out of stock

16

SEAL-OIL,SB12205

92049-004

1
Out of stock

17

SCREW-CSK-CROS,6X14

221B0614

1
Out of stock

18

OIL SEAL TB24358

653B243508

1

$28.82

In stock

19

BREATHER

14069-006

1
Out of stock

20

CLAMP,BREATHER PIPE

92037-078

1
Out of stock

21

TUBE,VINYL,4X500

700Q04500

1
Out of stock
