1980 Kawasaki KV75 Air Cleaner/muffler Diagram

← All diagrams

Find the part on the Air Cleaner/muffler diagram for your 1980 Kawasaki KV75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

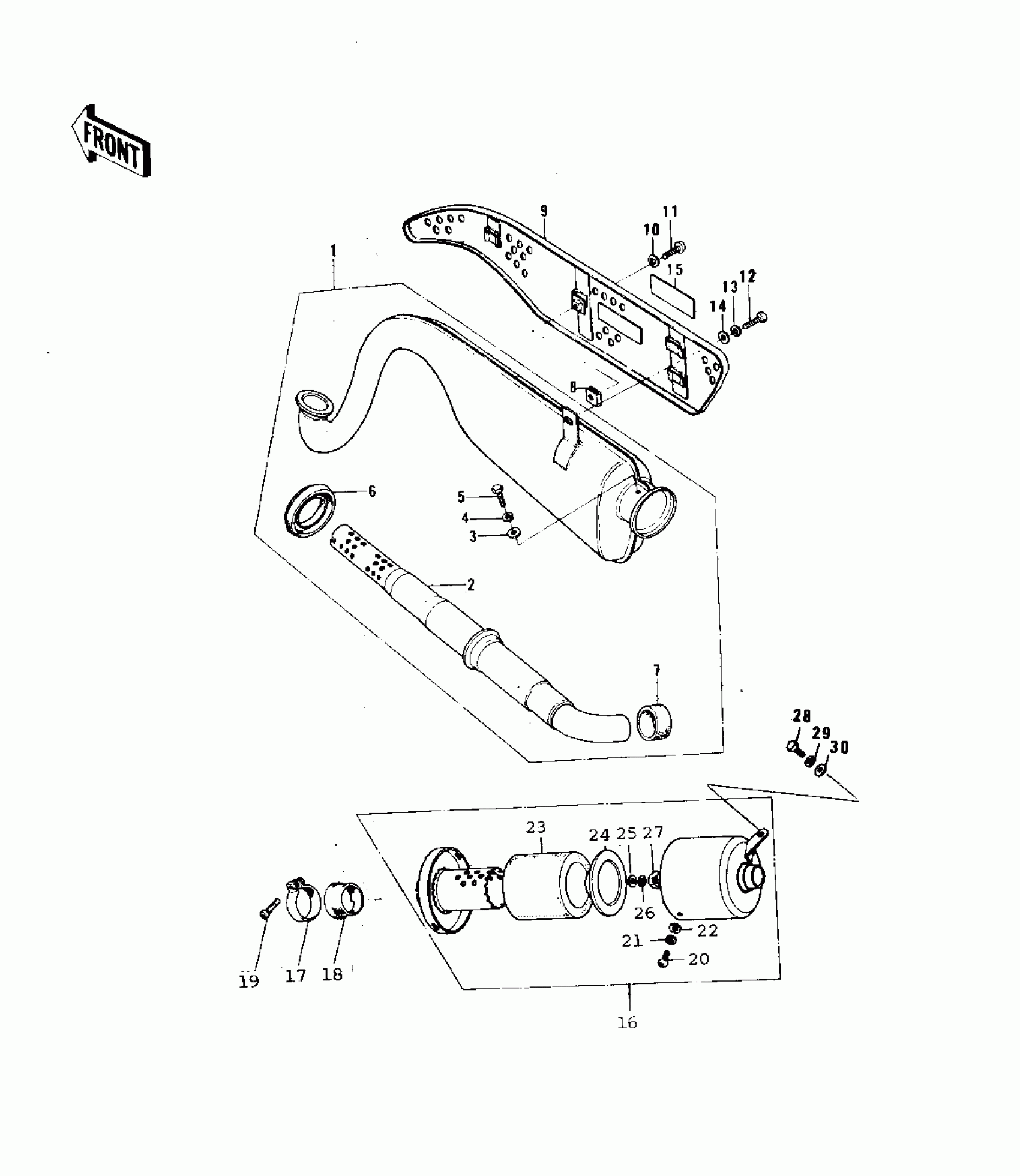

1980 Kawasaki KV75 Air Cleaner/muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER ASSY

18001-079

1
Out of stock

2

BAFFLE TUBE

18033-060

1
Out of stock

3

WASHER-PLAIN

92022-183

1
Out of stock

4

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

5

BOLT HEX HEAD 6X8

110B0608

1
Out of stock

6

OIL SEAL

92056-004

1
Out of stock

7

CAP-MUFFLER RUBBER

92073-021

1
Out of stock

8

INSULATOR-HEAT

18065-009

1
Out of stock

9

COVER,MUFFLER

18057-048

1
Out of stock

10

WASHER LOCK 6MM

463H0600

1
Out of stock

11

SCREW PAN HEAD 6X12

220E0612

1
Out of stock

12

BOLT,8X20

115G0820

1
Out of stock

13

WASHER SPRING 8MM

461F0800

1
Out of stock

15

EMBLEM,OIL TANK

56018-216

1
Out of stock

15

MARK,MUFFLER

56018-1049

1
Out of stock

16

AIR CLEANER ASSY

11010-099

1
Out of stock

17

HOLDER,CONNECT

18045-002

1
Out of stock

17

HOLDER,CONNECT

18045-002

1
Out of stock

18

BUSHING,RUBBER

92092-1001

1
Out of stock

18

BUSHING,RUBBER

92092-1001

1
Out of stock

19

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

20

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

21

WASHER SPRING 4MM

461F0400

1
Out of stock

22

WASHER PLAIN 4MM

410B0400

1
Out of stock

23

ELEMENT,AIR,CLNR

11013-048

1
Out of stock

24

ELEMENT,AIR CLNR,TOP

11013-050

1
Out of stock

25

WASHER PLAIN 4MM

410B0400

1
Out of stock

26

WASHER SPRING 4MM

461F0400

1
Out of stock

27

NUT,WING,4MM

92015-074

1
Out of stock

28

BOLT-UPSET,6X12

112G0612

1
Out of stock

29

WASHER SPRING 6MM

461F0600

1
Out of stock

30

WASHER PLAIN 6MM

411B0600

1
Out of stock
